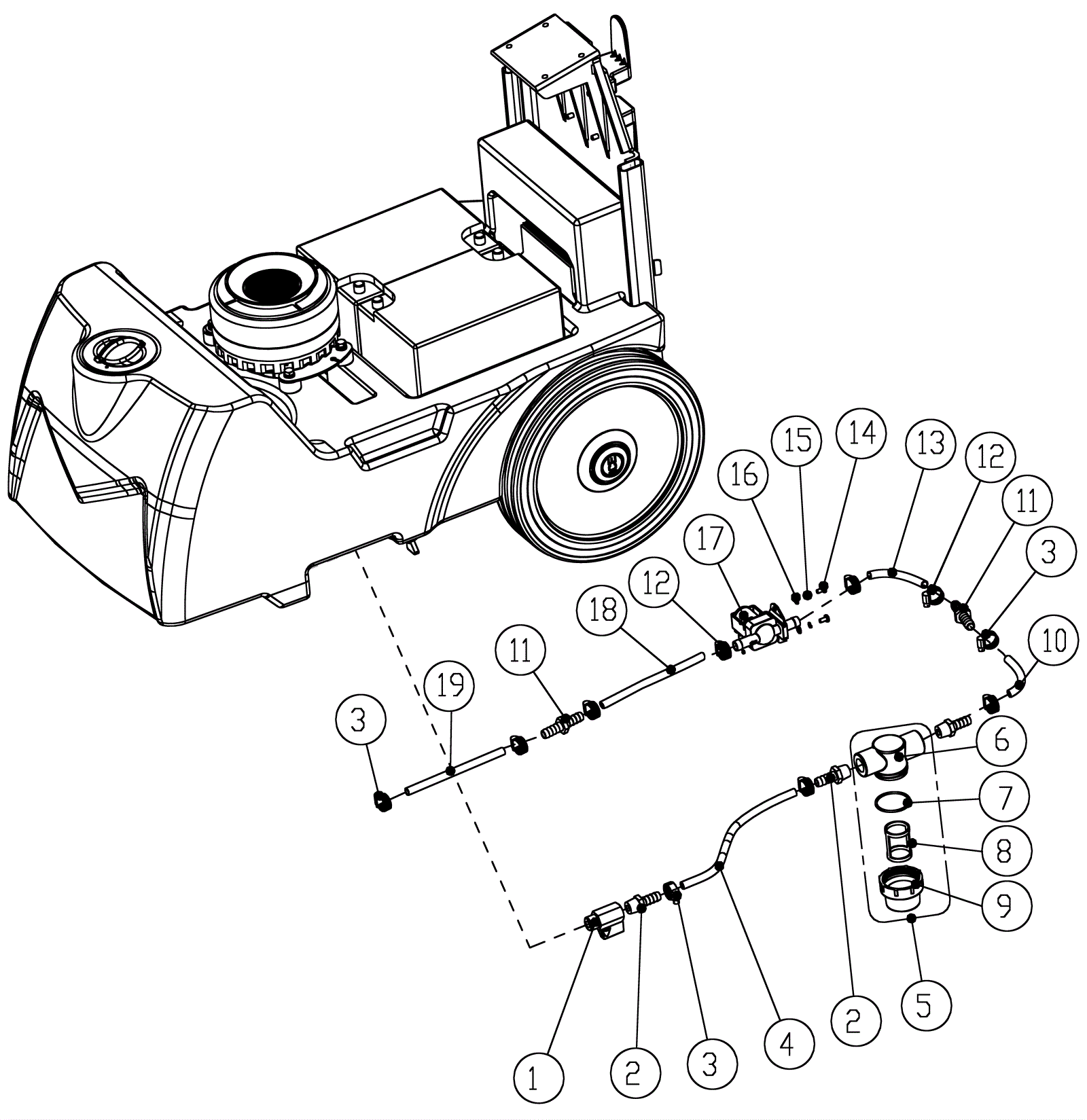

i15B Solution System Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0829 Micro ball valve $14.56 1 usually ships 6-14 days
2 278-2168 3/8 elbow $7.59 3 usually ships 6-14 days
3 278-2169 Hose clamp $3.17 6 usually ships 6-14 days
4 278-2170 Tubing $3.17 1 usually ships 6-14 days
5 278-2171 Filter assembly $14.56 1 (includes 6-9) usually ships 6-14 days
6 278-2172 Filter assembly base $8.47 1 usually ships 6-14 days
7 278-2173 O-ring $3.17 1 usually ships 6-14 days
8 278-2174 Filter screen $3.61 1 usually ships 6-14 days
9 278-2175 Filter assembly cap $4.86 1 usually ships 6-14 days
10 278-2176 Tubing $3.17 1 usually ships 6-14 days
11 278-2177 Hose barb $3.17 2 usually ships 6-14 days
12 278-0244 Clamp $2.88 4 usually ships 6-14 days
13 278-2178 Tubing $3.17 2 usually ships 6-14 days
14 999-9101 Screw M4-.7 x 10mm pan head stainless steel $0.90 2 ships same day
15 999-1954 Washer M4 lock $0.99 2 ships same day
16 999-9089 Washer M4 flat stainless steel $0.99 2 ships same day
17 278-0972 24V solenoid valve $16.02 1 usually ships 6-14 days
18 278-2179 Tubing $3.17 1 usually ships 6-14 days
19 278-2180 Tubing $3.17 1 usually ships 6-14 days
