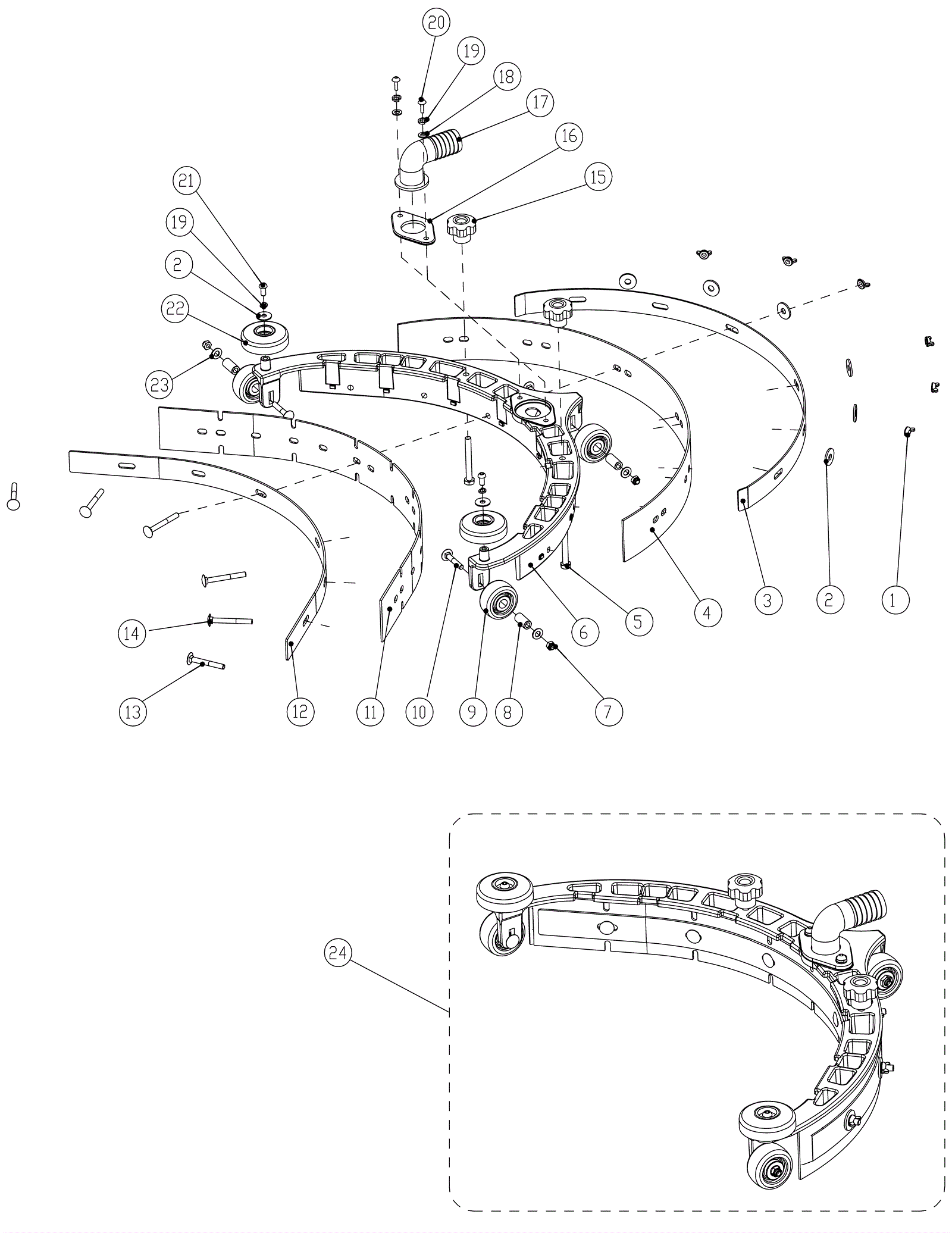

Squeegee Assembly

#PartDescription ReqNotesAvailability
1 999-0740 Nut M5-.8 hex stainless steel 6
2 278-1909 Washer M5x15x10 stainless steel 8
3 278-2151 Squeegee rear clamp 1
4a 278-2152 Rear squeegee blade (linatex) 1
4b 278-2153 Rear squeegee blade (polyurethane) 1 (optional)
5 999-1116 Bolt M6-1 x 50mm hex head stainless steel 2
6 278-2154 Squeegee housing 1
7 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 3
8 278-2155 Squeegee bushing 3
9 278-2156 1 1/2 inch squeegee wheel 3
10 278-2160 Screw M5 x 35 3
11a 278-2157 Front squeegee blade (linatex) 1
11b 278-2158 Front squeegee blade (polyurethane) 1 (optional)
12 278-2159 Squeegee front clamp 1
13 278-2161 Screw M5 x 40 2
14 278-2162 Screw M5 x 45 4
15 278-1602 Small M6 knob 2
16 278-2163 Squeegee elbow gasket 1
17 278-2164 Squeegee elbow 1
18 999-9100 Washer M5 flat stainless steel 2
19 999-9132 Washer M5 split lock stainless steel 4
20 278-2165 Screw ST4.8 x 16 self tapping 2
21 278-1196 Screw 2
22 278-2166 Bumper wheel 2
23 278-0665 Washer 3
24 278-2167 Squeegee assembly (linatex) 1 (includes 1-3, 4a, 5-10, 11a, 12-23)
