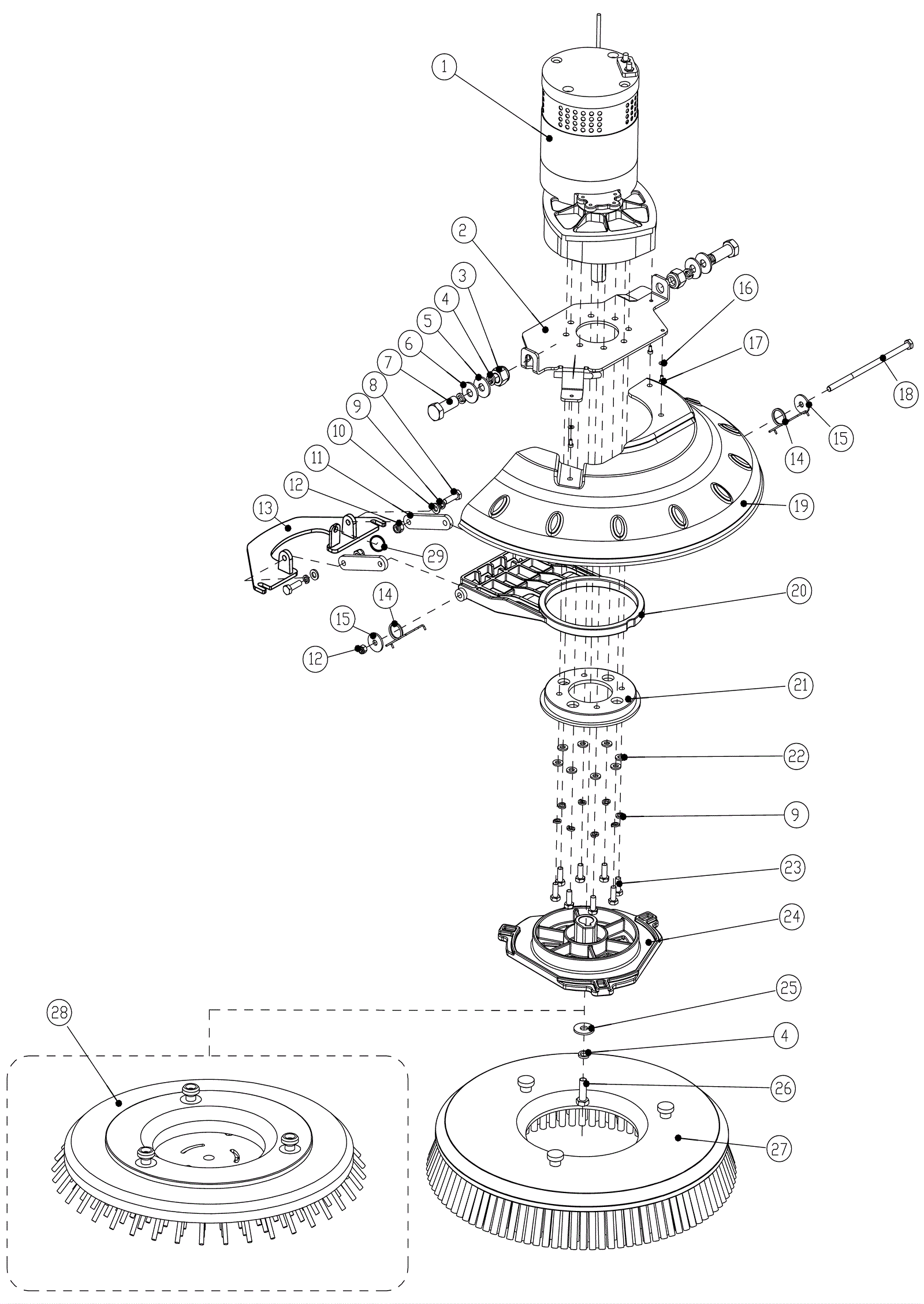

i15B Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-2136 24V brush motor $674.48 1 usually ships 6-14 days
2 278-2137 Brush motor mounting plate $39.40 1 usually ships 6-14 days
3 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
4 999-0674 Washer M8 split lock plain finish $0.99 5 ships same day
5 999-6695 Washer M8 fender stainless steel $0.99 2 ships same day
6 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
7 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
8 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 2 ships same day
9 999-1117 Washer M6 split lock stainless steel $0.99 10 ships same day
10 999-0876 Washer M6 split lock plain finish $0.90 2 ships same day
11 278-2138 Connecting rod $5.98 2 usually ships 6-14 days
12 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 3 ships same day
13 278-2139 Squeegee bracket $27.61 1 usually ships 6-14 days
14 278-2140 Brush motor bracket spring $3.17 2 usually ships 6-14 days
15 278-2141 Plain washer $3.17 2 usually ships 6-14 days
16 999-9089 Washer M4 flat stainless steel $0.99 3 ships same day
17 999-9101 Screw M4-.7 x 10mm pan head stainless steel $0.90 3 ships same day
18 278-2142 Screw $8.21 1 usually ships 6-14 days
19 278-2143 Brush plate cover $19.45 1 usually ships 6-14 days
20 278-2145 Brush motor guide $55.00 1 usually ships 6-14 days
21 278-2146 Brush motor bracket $44.00 1 usually ships 6-14 days
22 999-6714 Washer M6 x 12mm flat stainless steel $0.99 8 ships same day
23 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 8 ships same day
24 278-2144 Brush hub drive $68.20 1 usually ships 6-14 days
25 999-6695 Washer M8 fender stainless steel $0.99 1 ships same day
26 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
27a 278-2149 15 inch brush (medium) $242.00 1 usually ships 6-14 days
27b 278-2150 15 inch brush (soft) (white) $242.00 1 (soft white) (optional) usually ships 6-14 days
28 278-2148 15 inch pad driver $242.00 1 usually ships 6-14 days
29 278-2147 Squeegee cable ring $3.17 1 usually ships 6-14 days
