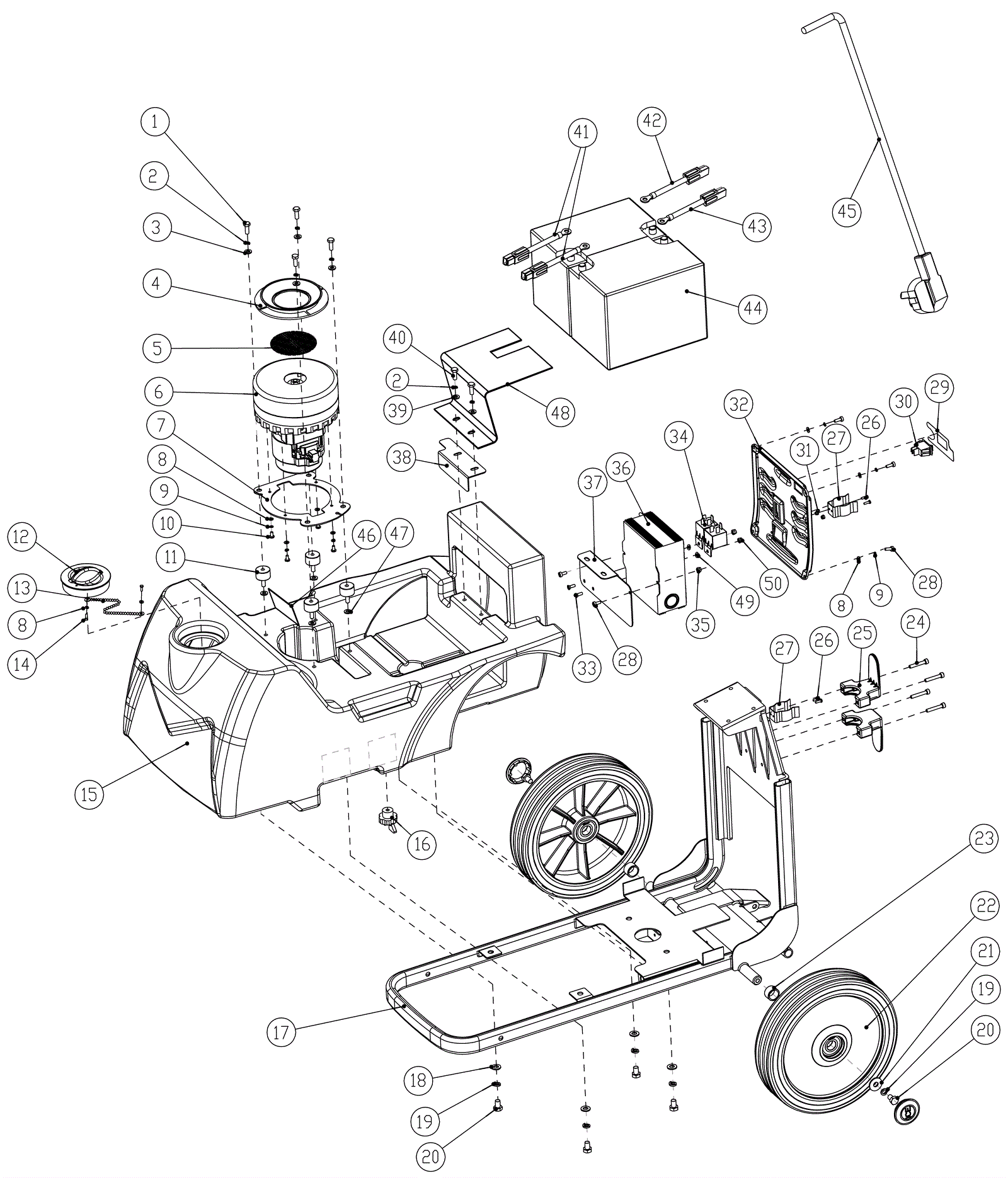

i15B Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-2088 Screw M6 x 12 $3.17 4 usually ships 5-12 days
2 999-1117 Washer M6 split lock stainless steel $0.99 6 ships same day
3 999-0876 Washer M6 split lock plain finish $0.99 4 ships same day
4 278-2089 Vacuum seal gasket $5.28 1 usually ships 5-12 days
5 278-2090 Vacuum filter $3.17 1 usually ships 5-12 days
6 278-2091 24V vacuum motor $220.66 1 usually ships 5-12 days
7 278-2092 Vac motor mounting plate $10.89 1 usually ships 5-12 days
8 999-9089 Washer M4 flat stainless steel $0.99 8 ships same day
9 999-1954 Washer M4 lock $0.99 8 ships same day
10 278-0085 Screw $3.17 4 ships same day
11a 278-0386 Isolater $6.36 4 (between SN 60037100101 and 60037100203) ships same day
11b 278-2093 Isolator Call for price 4 (after SN 60037100204) usually ships 5-12 days
12 278-2094 Solution tank fill cover $5.98 usually ships 5-12 days
13 278-2046 Chain $3.80 0 usually ships 5-12 days
14 278-0076 Screw $3.17 2 usually ships 5-12 days
15 278-2075 Solution tank $173.43 1 usually ships 5-12 days
16 278-2095 Solution drain cap $3.17 1 usually ships 5-12 days
17 278-2096 Main frame $435.27 1 usually ships 5-12 days
18 999-6695 Washer M8 fender stainless steel $0.99 4 ships same day
19 999-0674 Washer M8 split lock plain finish $0.99 6 ships same day
20 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 6 ships same day
21 999-6695 Washer M8 fender stainless steel $0.99 2 ships same day
22 278-2097 10 inch wheel $87.91 2 usually ships 5-12 days
23 278-2098 Axle bushing $3.61 2 usually ships 5-12 days
24 999-1899 Screw M5-.8 x 25mm socket hex head stainless steel $0.99 4 ships same day
25 278-1876 Cord wrap $3.17 2 usually ships 5-12 days
26 999-1313 Screw M3-.5 x 10mm hex head $0.99 4 usually ships 1-5 days
27 278-2099 Drain hose clamp $3.92 2 usually ships 5-12 days
28 999-9101 Screw M4-.7 x 10mm pan head stainless steel $0.99 6 ships same day
29 278-2100 Vac motor decal $4.86 1 usually ships 5-12 days
30 278-1169 Rocker switch $3.17 1 usually ships 5-12 days
31 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
32 278-2101 Rear charger cover $5.74 1 usually ships 5-12 days
33 278-1595 Screw M5 x 12 $3.17 2 usually ships 5-12 days
34 278-0771 Relay $21.34 2 usually ships 5-12 days
35 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 ships same day
36a 278-2102 24V battery charger SPE $591.69 1 (between SN 60037100101-60037100723) usually ships 5-12 days
36b 278-2103 24V battery charger QQE $421.96 1 (after SN 60037100724) usually ships 5-12 days
37 278-2104 Charger mounting plate $13.31 1 usually ships 5-12 days
38 278-2105 Plate $4.97 1 usually ships 5-12 days
39 999-6714 Washer M6 x 12mm flat stainless steel $0.99 2 ships same day
40 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
41 278-2106 Battery cable $15.27 2 usually ships 5-12 days
42 278-2107 Battery cable $11.66 1 usually ships 5-12 days
43 278-2108 Battery cable $11.66 1 usually ships 5-12 days
44 162-0110 12V 35Ah AGM battery $211.64 2 ships same day
45 278-0583 Onboard battery charger cord (Old style-charger 8132020-US) $26.69 1 ships same day
46 278-2109 Indicated decal Call for price 1 (after SN 60037100514) usually ships 5-12 days
47 999-1803 Washer M6 flat fender stainless steel $0.99 4 (after SN 60037100204) ships same day
48 278-2110 Shield $3.17 1 (after SN 60037100514) usually ships 5-12 days
49 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
50 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
