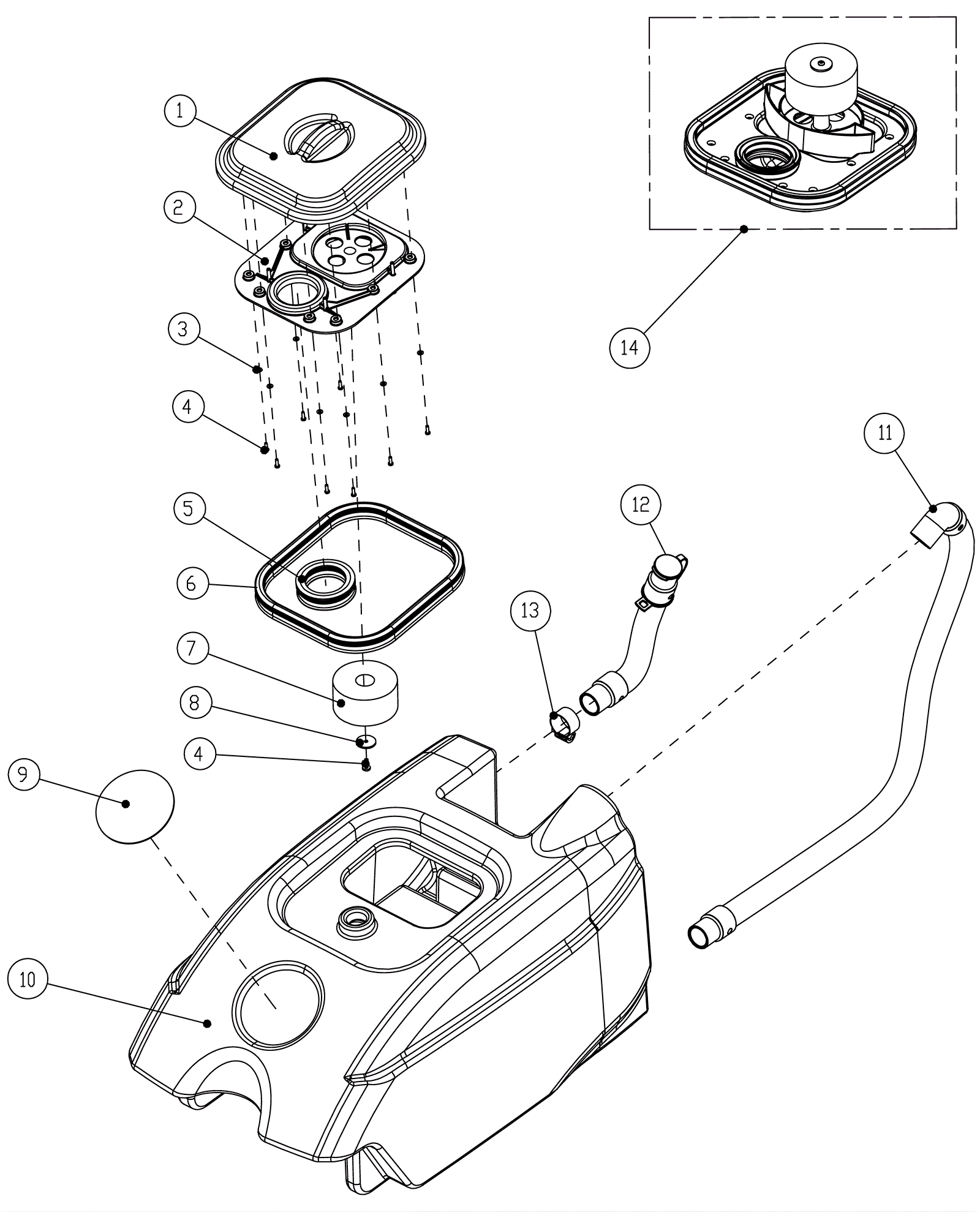

i15B Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-2076 Recovery tank lid $11.99 1 usually ships 5-12 days
2 278-2077 Recovery tank lid backing plate $6.09 1 usually ships 5-12 days
3 999-9089 Washer M4 flat stainless steel $0.99 8 ships same day
4 278-0076 Screw $3.17 9 usually ships 5-12 days
5 278-2078 Recovery tank gasket $3.63 1 usually ships 5-12 days
6 278-2079 Recovery tank lid seal $6.36 1 usually ships 5-12 days
7 278-2080 Float $3.17 1 usually ships 5-12 days
8 278-2081 Flat washer $3.17 1 usually ships 5-12 days
9 278-0029 ICE decal $6.36 1 usually ships 5-12 days
10 278-2082 Recovery tank $140.62 1 usually ships 5-12 days
11 278-2083 Vacuum hose $18.81 1 usually ships 5-12 days
12 278-2084 Drain hose $38.74 1 usually ships 5-12 days
13a 278-2085 Clamp $3.17 1 (between SN 60037100101 and 60037100460) usually ships 5-12 days
13b 278-2086 Clamp Call for price 1 (after SN 60037100461) usually ships 5-12 days
14 278-2087 Recovery tank lid assembly $22.42 1 (includes 1-8) usually ships 5-12 days
