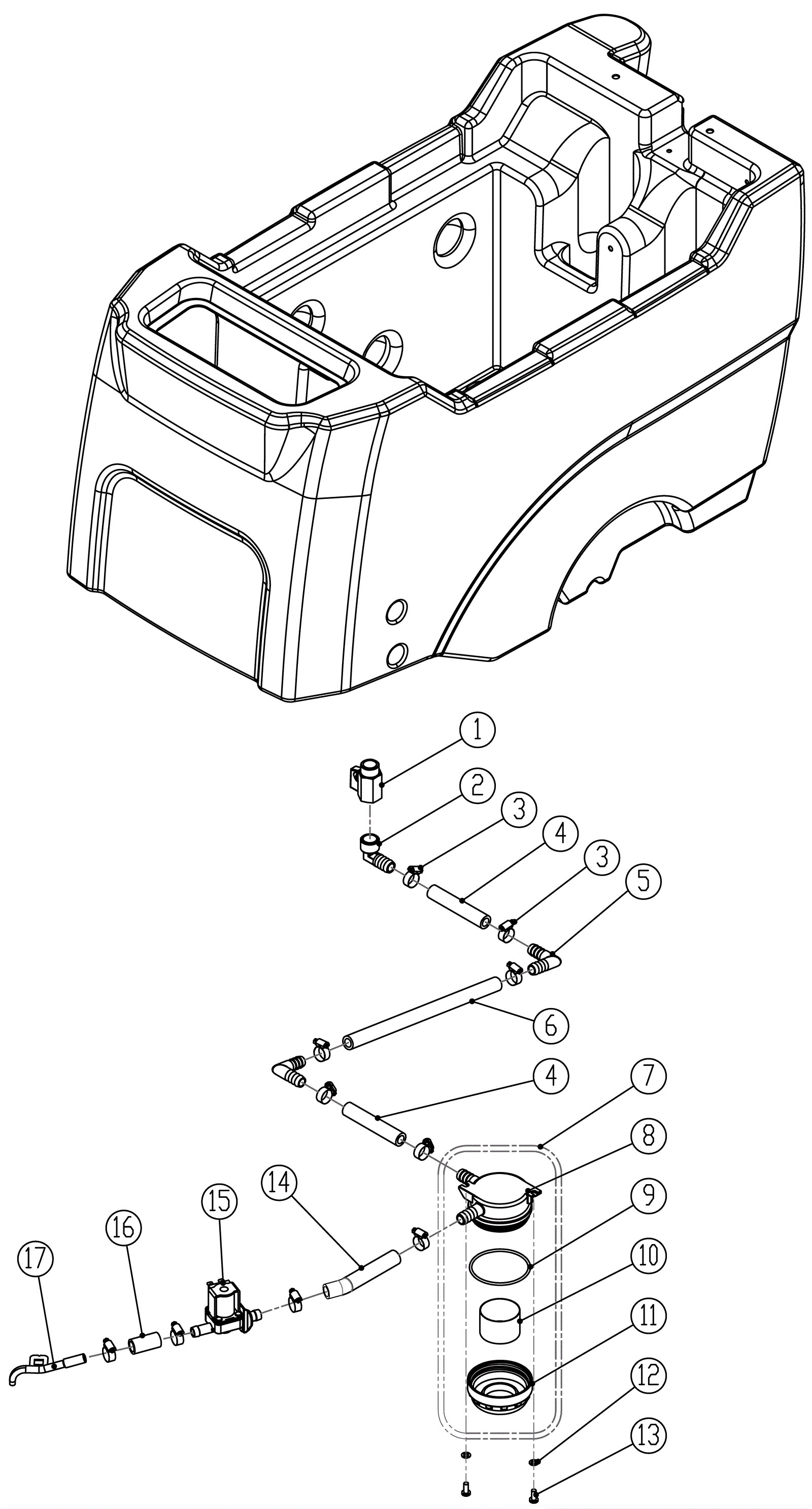

SC18 Solution Flow Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0069 Ball valve $17.78 1 usually ships 9-14 days
2 278-0070 Elbow $7.26 1 usually ships 9-14 days
3 278-0244 Clamp $3.17 10 usually ships 9-14 days
4 278-2072 Tubing (OBSOLETE) Call for price 2 usually ships 9-14 days
5 278-0305 Elbow $3.17 2 usually ships 9-14 days
6 278-2073 Tubing $3.17 1 usually ships 9-14 days
7 278-0307 Filter assembly $27.83 1 (includes 8-11) ships same day
8 278-0308 Filter assembly base $6.36 1 usually ships 9-14 days
9 278-0311 O-ring $3.17 1 ships same day
10 278-0310 40 mesh filter screen assembly $6.36 1 usually ships 9-14 days
11 278-0312 Filter assembly cap $9.16 1 ships same day
12 999-9089 Washer M4 flat stainless steel $0.99 2 ships same day
13 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 2 ships same day
14 278-2074 Tubing $3.17 1 usually ships 9-14 days
15 278-0972 24V solenoid valve $16.02 1 usually ships 9-14 days
16 278-0971 Hose $3.17 1 usually ships 9-14 days
17 278-0950 Water inlet $16.02 1 usually ships 9-14 days
