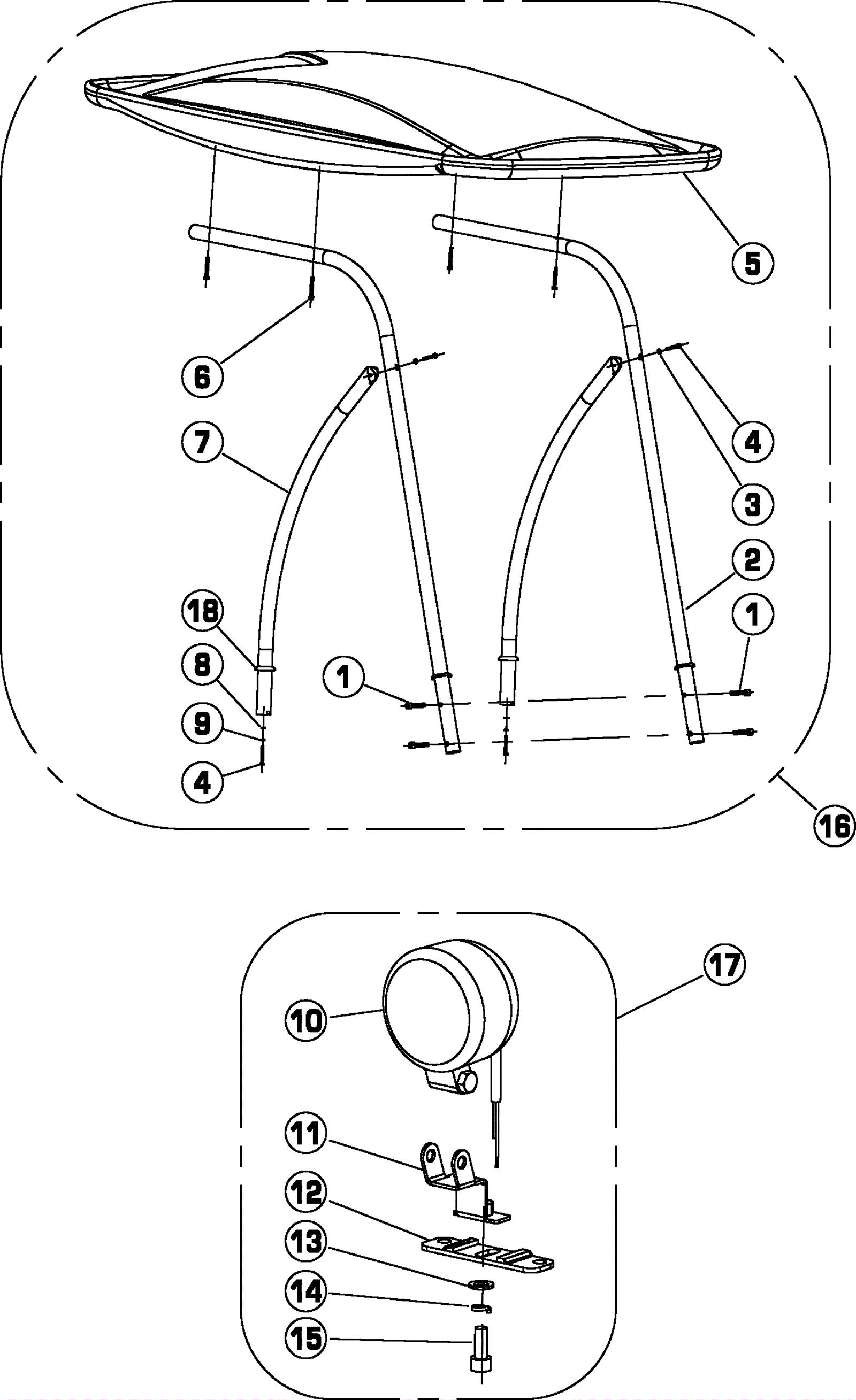

IS1100 Accessories Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-1793 Screw M8 x 40 socket head $3.17 4 usually ships 5-12 days
2 278-1794 Back bracket Call for price 2 usually ships 5-12 days
3 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
4 278-1627 Screw M5 x 50 $3.17 4 usually ships 5-12 days
5 278-1795 Protection roof Call for price 1 usually ships 5-12 days
6 278-0219 Screw M8 $3.17 4 usually ships 5-12 days
7 278-1796 Front bracket Call for price 2 usually ships 5-12 days
8 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
9 999-9132 Washer M5 split lock stainless steel $0.99 2 ships same day
10 278-1797 LED worklamp Call for price 1 usually ships 5-12 days
11 278-1798 LED worklamp support $16.02 1 usually ships 5-12 days
12 278-1799 Bracket $11.44 1 usually ships 5-12 days
14 999-0674 Washer M8 split lock plain finish $0.99 1 ships same day
15 278-1722 Screw M8 x 20 socket head $3.17 1 usually ships 5-12 days
16 278-1800 Protection roof kit $533.61 1 (optional) (includes 1-9, 18) usually ships 5-12 days
17 278-1801 Working light kit $101.40 1 (includes 10-15) usually ships 5-12 days
18 278-1802 Rubber cap Call for price 4 usually ships 5-12 days
