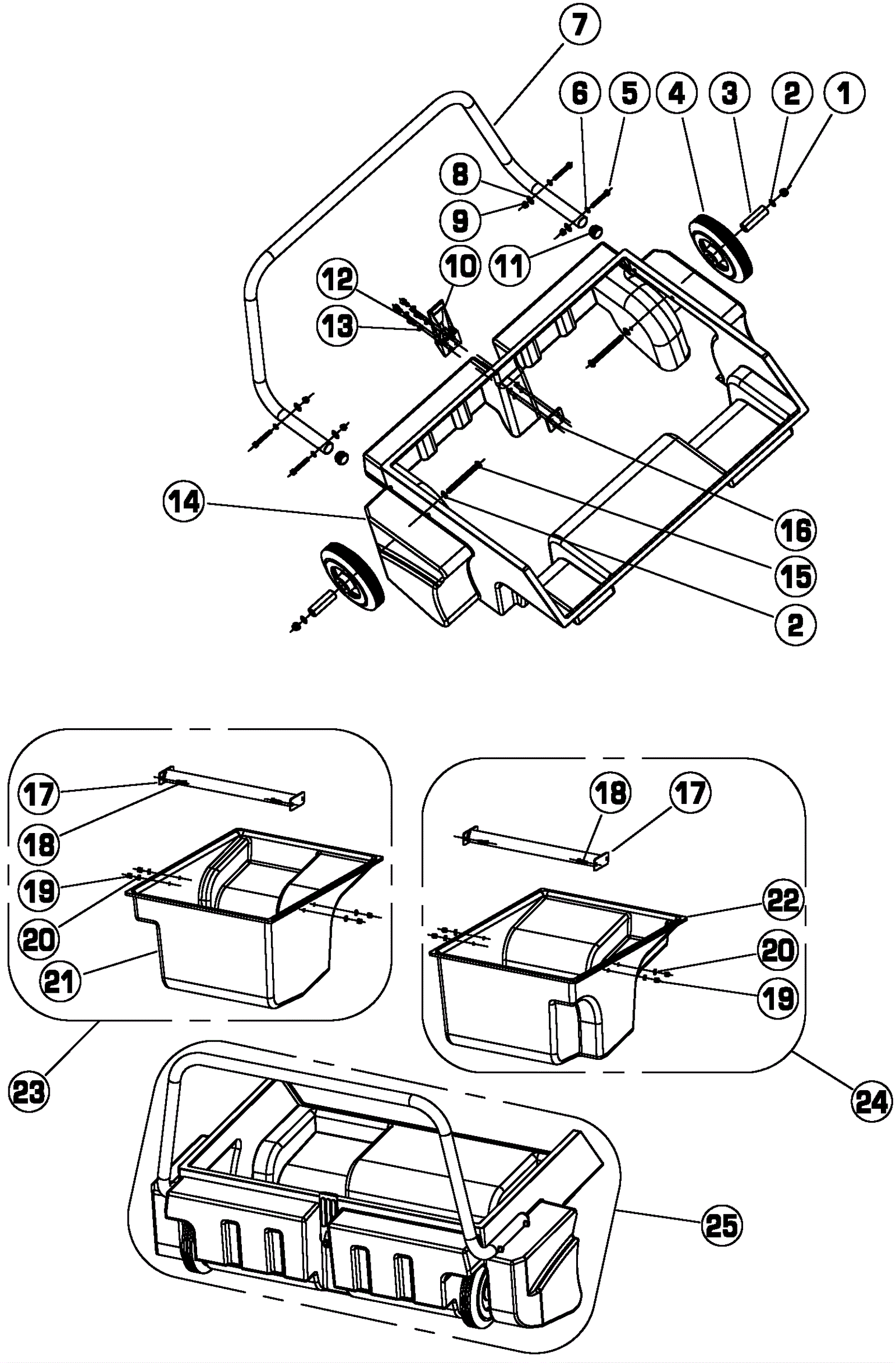

IS1100 Hopper Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
2 278-1537 Washer 8 x 16 x 1.6 plain $3.17 4 usually ships 5-12 days
3 278-1761 Spacer $6.36 2 usually ships 5-12 days
4 278-1762 Hopper wheel $26.69 2 usually ships 5-12 days
5 278-1586 Screw M6 x 40 round head $3.17 4 usually ships 5-12 days
6 999-6714 Washer M6 x 12mm flat stainless steel $0.99 4 ships same day
7 278-1763 Handle $80.06 1 usually ships 5-12 days
8 999-1803 Washer M6 flat fender stainless steel $0.99 4 ships same day
9 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 ships same day
10 278-1764 Latch $40.02 1 usually ships 5-12 days
11 278-1765 Cap $3.17 2 usually ships 5-12 days
12 278-0801 Screw M6 x 12mm socket head $3.17 2 usually ships 5-12 days
13 999-1117 Washer M6 split lock stainless steel $0.99 2 ships same day
14 278-1766 Hopper $80.06 1 usually ships 5-12 days
15 278-1767 Screw M8 x 90 round head $3.17 2 usually ships 5-12 days
16 278-1768 Plate $11.44 1 usually ships 5-12 days
17 278-1769 Handle assembly $21.34 2 usually ships 5-12 days
18 278-1770 Screw M5 x 16 round head $3.17 8 usually ships 5-12 days
19 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 8 ships same day
20 999-9100 Washer M5 flat stainless steel $5.83 8 ships same day
21 278-1771 Left hand bracket $32.01 1 usually ships 5-12 days
22 278-1772 Right hand bracket $32.01 1 usually ships 5-12 days
23 278-1773 Left hand bucket kit $104.08 1 (includes 17-21) usually ships 5-12 days
24 278-1774 Right hand bucket kit $104.08 1 (includes 17-21) usually ships 5-12 days
25 278-1775 Hopper assembly $609.25 1 usually ships 5-12 days
