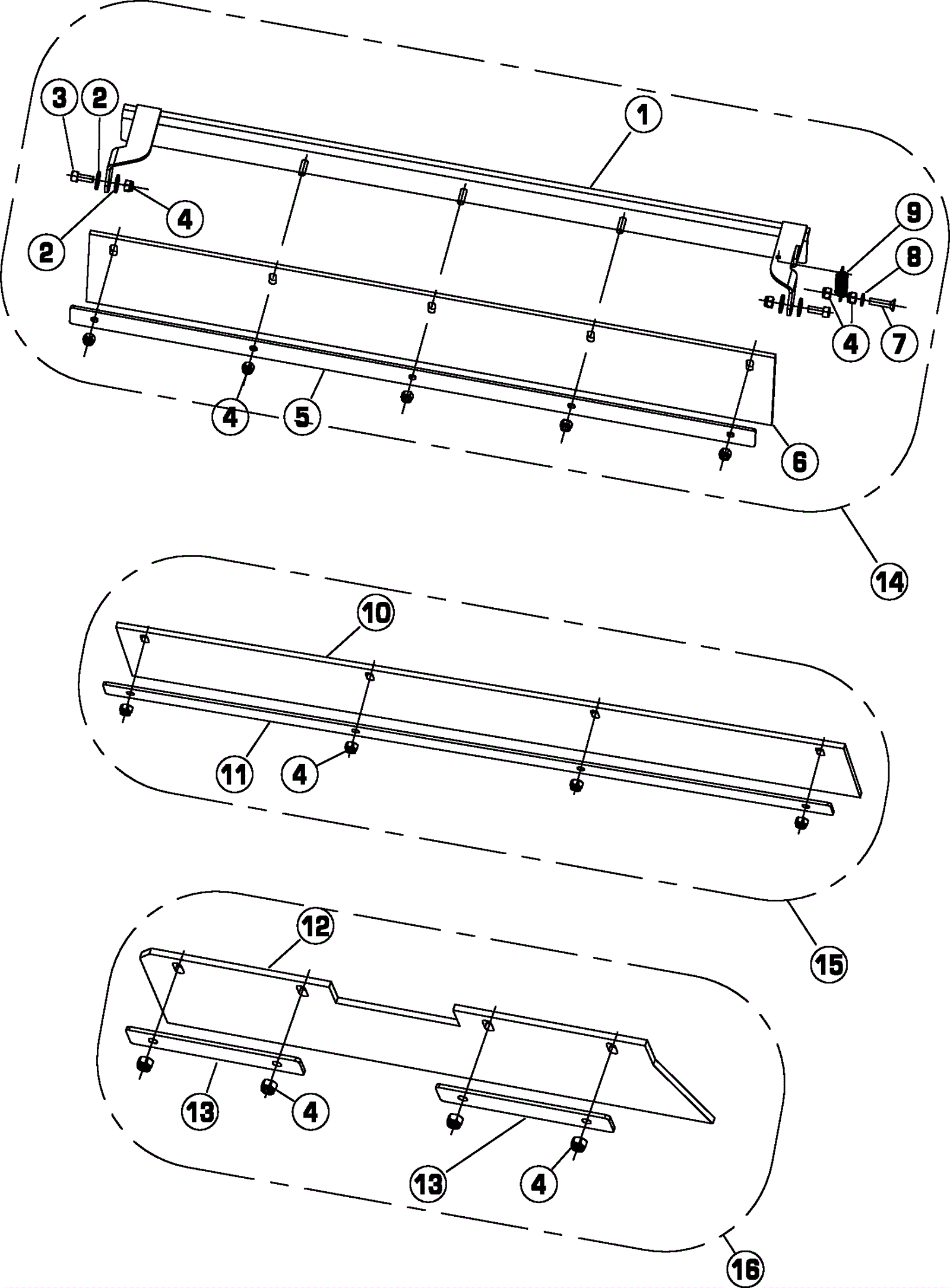

IS1100 Skirt Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-1736 Front skirt frame $61.38 1 usually ships 5-12 days
2 999-1803 Washer M6 flat fender stainless steel $0.99 4 ships same day
3 278-0138 Screw M6 x 16mm $3.17 2 usually ships 5-12 days
4 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 16 ships same day
5 278-1737 Front skirt plate $21.34 1 usually ships 5-12 days
6 278-1738 Front skirt $32.01 1 usually ships 5-12 days
7 278-1636 Screw M6 x 25 countersunk hex head $3.17 1 usually ships 5-12 days
8 999-6714 Washer M6 x 12mm flat stainless steel $0.99 1 ships same day
9 278-1739 Spring $3.17 1 usually ships 5-12 days
10 278-1740 Rear skirt $26.69 1 usually ships 5-12 days
11 278-1741 Rear skirt plate $16.02 1 usually ships 5-12 days
12 278-1585 Side skirt $16.02 1 usually ships 5-12 days
13 278-1584 Side skirt plate $6.36 2 usually ships 5-12 days
14 278-1742 Front skirt assembly $120.05 1 (includes 1-9) usually ships 5-12 days
15 278-1743 Rear skirt assembly $48.05 1 (includes 4, 10-11) usually ships 5-12 days
16 278-1744 Left hand skirt assembly $37.36 1 (includes 4, 12-13) usually ships 5-12 days
