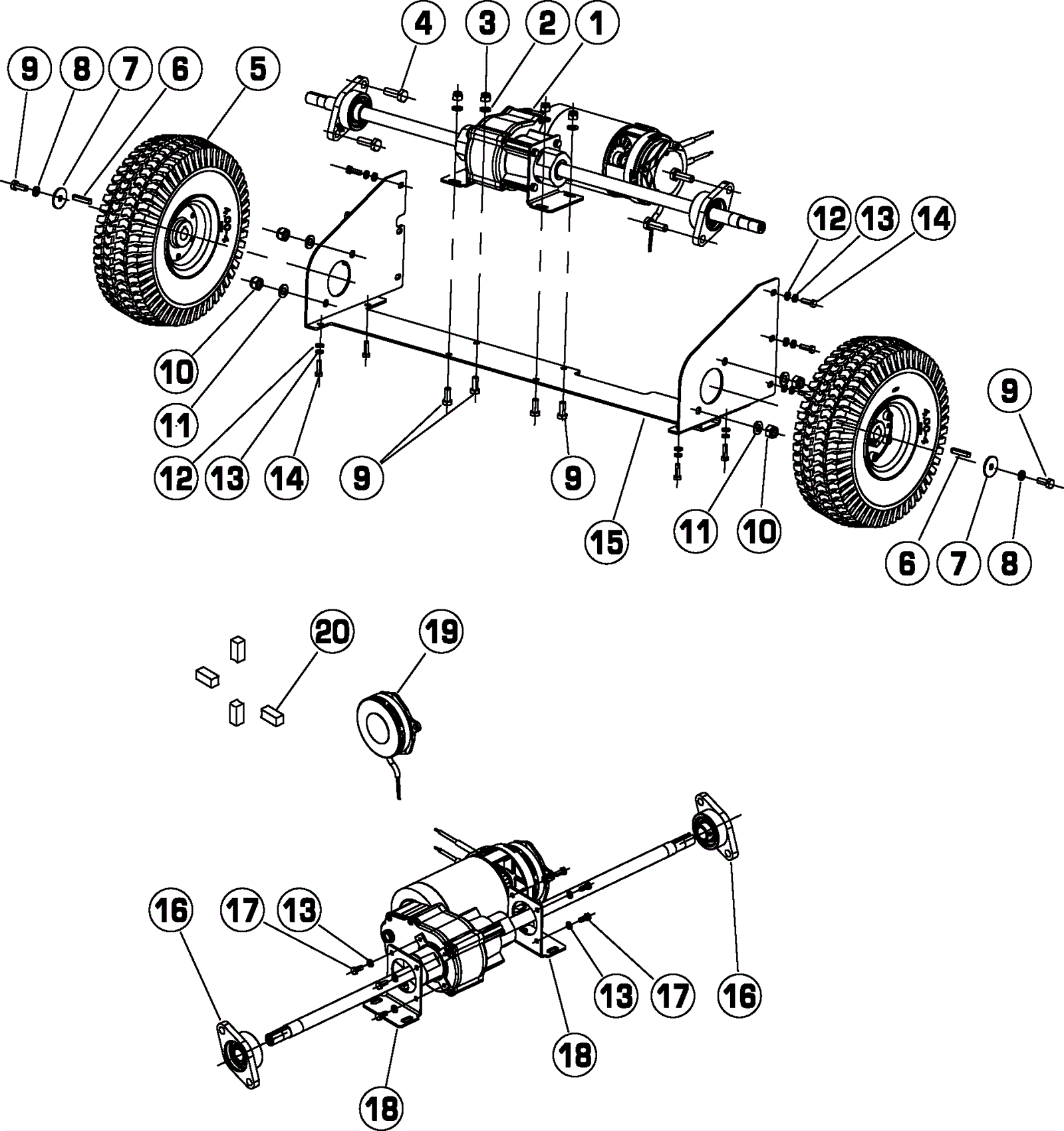

IS1100 Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1a 278-1725 Transaxle Call for price 1 (before SN 000129 and from SN 000133-000137) usually ships 5-12 days
1b 278-1726 Transaxle $1,562.32 1 (from SN 000129-000132 and after SN 000137) usually ships 5-12 days
3 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 ships same day
4 278-0695 Bolt M10 x 30mm $3.17 4 usually ships 5-12 days
5 278-1727 Traction wheel $213.44 2 usually ships 5-12 days
6 278-1728 Key 6 x 6 x 35 $3.17 2 usually ships 5-12 days
7 999-6695 Washer M8 fender stainless steel $0.99 2 ships same day
8 999-0674 Washer M8 split lock plain finish $0.99 2 ships same day
9 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 6 ships same day
10 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 4 ships same day
11 999-9099 Washer M10 flat stainless steel $0.99 4 ships same day
12 999-6714 Washer M6 x 12mm flat stainless steel $0.99 10 ships same day
13 999-1117 Washer M6 split lock stainless steel $0.99 18 ships same day
14 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 10 ships same day
15 278-1729 Transaxle support $106.72 1 usually ships 5-12 days
16 278-1730 Ball bearing with flange $146.74 2 usually ships 5-12 days
17 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 8 ships same day
18 278-1731 Transaxle bracket $11.44 2 usually ships 5-12 days
19a 278-1732 Electric brake kit $169.29 1 (CCL Motor 7000325A SN from 000129-00132 and after SN 000137) ships same day
19b 278-1733 Electric brake kit $609.84 1 (Amer motor 7000197A sn before 000129 and from SN 000133-000137 ) usually ships 5-12 days
20a 278-1734 Carbon brushes $67.34 4 (Amer motor 7000197A sn before 000129 and from SN 000133-000137 ) usually ships 5-12 days
20b 278-1735 Carbon brushes $10.16 4 (CCL Motor 7000325A SN from 000129-00132 and after SN 000137) usually ships 5-12 days
