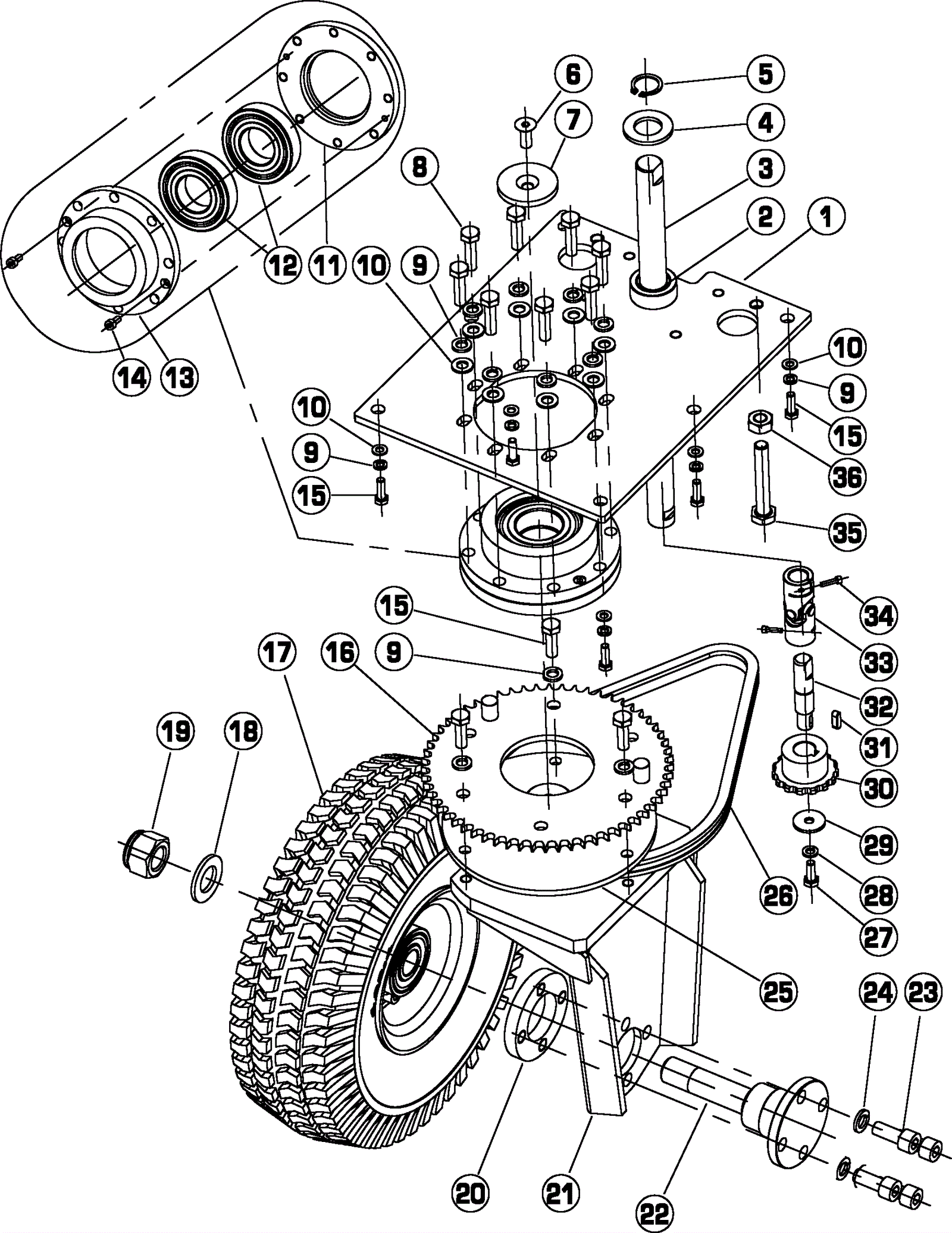

IS1100 Front Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-1687 Supporting plate $106.72 1 usually ships 5-12 days
2 278-1688 Bushing $6.36 1 usually ships 5-12 days
3 278-1689 Shaft $21.34 1 usually ships 5-12 days
4 278-1700 Washer 21 x 37 x 3 plain $3.17 1 usually ships 5-12 days
5 278-1691 Retaining ring $3.17 1 usually ships 5-12 days
6 278-1692 Retainer bearing $8.91 1 usually ships 5-12 days
7 278-1693 Screw M8 x 25 countersunk hex head $3.17 1 usually ships 5-12 days
8 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 8 ships same day
9 999-0674 Washer M8 split lock plain finish $0.99 17 ships same day
10 278-1537 Washer 8 x 16 x 1.6 plain $3.17 14 usually ships 5-12 days
11 278-1694 Flange $26.69 1 usually ships 5-12 days
12 278-1695 Ball bearing $26.69 2 usually ships 5-12 days
13 278-1696 Flange $42.68 1 usually ships 5-12 days
14 278-1697 Screw M5 x 12 socket head $3.17 2 usually ships 5-12 days
15 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 9 ships same day
16 278-1698 Crown $24.00 1 usually ships 5-12 days
17 278-1699 Front wheel $226.78 1 usually ships 5-12 days
18 278-1700 Washer 21 x 37 x 3 plain $3.17 1 usually ships 5-12 days
19 278-1701 Locknut M20 $6.36 1 usually ships 5-12 days
20 278-1702 Flange $16.02 1 usually ships 5-12 days
21 278-1703 Front wheel support $120.05 1 usually ships 5-12 days
22 278-1704 Front wheel shaft $61.38 1 usually ships 5-12 days
23 278-1705 Screw M10 x 25 socket head $3.17 4 usually ships 5-12 days
24 999-1081 Washer M10 split lock stainless steel $0.99 4 ships same day
25 278-1706 Plate $21.34 1 usually ships 5-12 days
26 278-1707 Chain $11.44 1 usually ships 5-12 days
27 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
28 999-1117 Washer M6 split lock stainless steel $0.99 1 ships same day
29 278-1593 Washer 6.6 x 22 x 2 plain $3.17 1 usually ships 5-12 days
30 278-1708 Sprocket $16.02 1 usually ships 5-12 days
31 278-0818 Key $3.18 1 ships same day
32 278-1709 Steering shaft $26.69 1 usually ships 5-12 days
33 278-1648 Joint $155.23 1 usually ships 5-12 days
34 278-1647 Screw M6 x 25 socket head $3.17 2 usually ships 5-12 days
35 278-1710 Screw M10 x 65 RHM $3.17 2 usually ships 5-12 days
36 999-6697 Nut M10-1.5 hex stainless steel $1.01 2 ships same day
