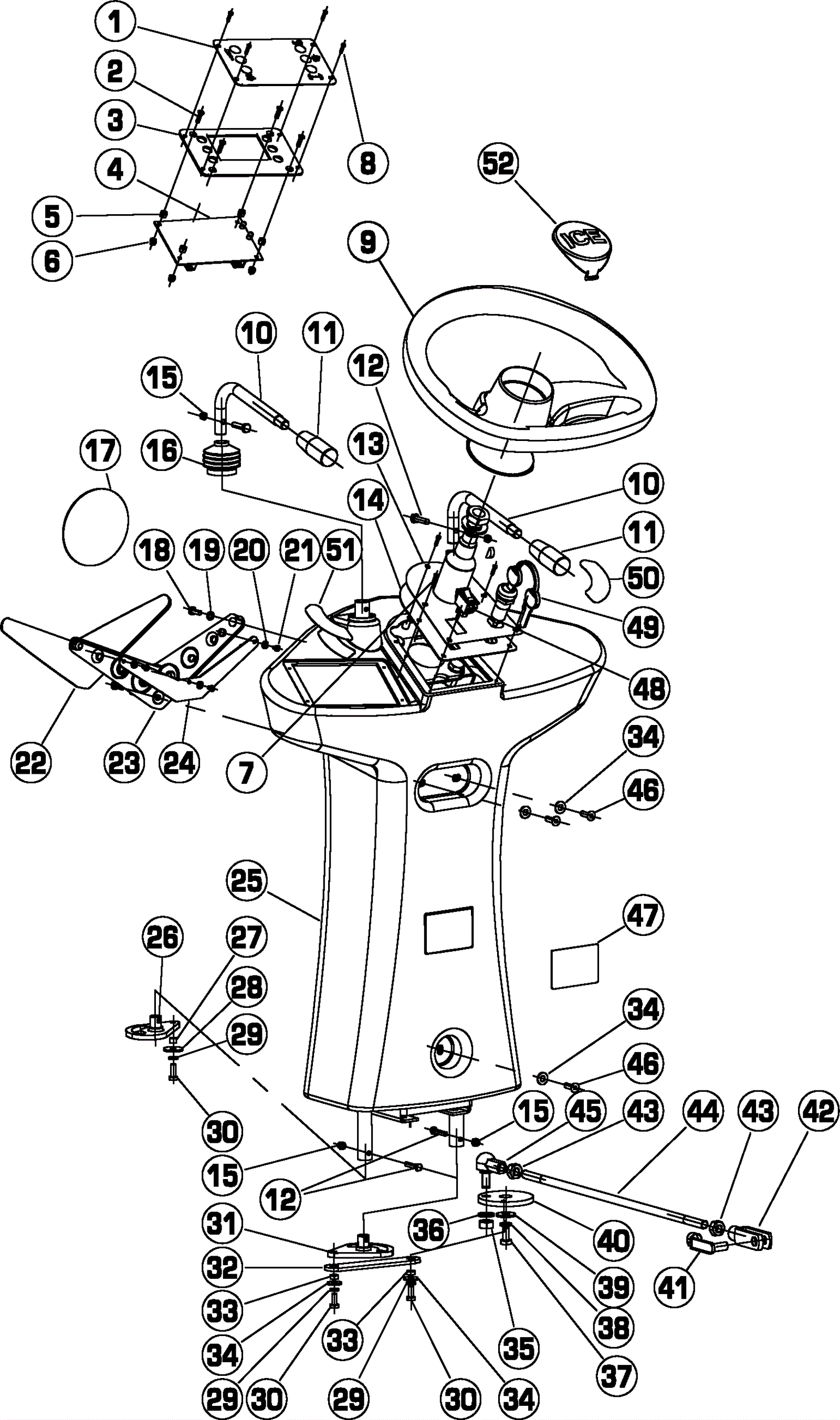

IS1100 Upper Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-1657 Dash board decal $6.36 1 (after SN 000133) usually ships 5-12 days
2 278-1658 Screw M4 x 16 flat head $3.17 4 usually ships 5-12 days
3 278-1659 Electronic board plate $16.02 1 (after SN 000133) usually ships 5-12 days
4a 278-1685 Electronic board (OBSOLETE) Call for price 1 (before SN 000125) usually ships 5-12 days
4b 278-1686 Electronic board $120.05 1 (after SN 000124) (replaces 278-1685) usually ships 5-12 days
5 278-1660 Spacer $3.17 1 usually ships 5-12 days
6 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
7 278-1661 Screw 2.9 x 12 $3.17 5 usually ships 5-12 days
8 278-1500 Screw M3 x 10 pan head $3.17 4 usually ships 5-12 days
9 278-1662 Steering wheel $66.70 1 usually ships 5-12 days
10 278-1663 Lever $16.02 2 usually ships 5-12 days
11 278-1664 Lever cover $3.17 2 usually ships 5-12 days
12 278-1665 Screw M5 x 25 round head $3.17 4 usually ships 5-12 days
13 278-1666 Ignition ket decal $6.36 1 usually ships 5-12 days
14 278-1667 Ignition key support $16.02 1 usually ships 5-12 days
15 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
16 278-1668 Rubber cover $3.17 2 usually ships 5-12 days
17 278-0029 ICE decal $6.36 1 usually ships 5-12 days
18 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel $0.99 3 ships same day
19 999-9100 Washer M5 flat stainless steel $5.83 3 ships same day
20 999-9089 Washer M4 flat stainless steel $0.99 3 ships same day
21 278-0076 Screw $3.17 3 usually ships 5-12 days
22 278-0081 LED light cover $15.49 1 usually ships 5-12 days
23 278-0079 LED light base $28.34 1 usually ships 5-12 days
24 278-0078 LED light kit $30.91 1 usually ships 5-12 days
25 278-1669 Steering column cover $103.29 1 usually ships 5-12 days
26 278-1670 Side brush return lever $21.34 1 usually ships 5-12 days
27 278-1671 Spacer $3.17 1 usually ships 5-12 days
28 278-1593 Washer 6.6 x 22 x 2 plain $3.17 1 usually ships 5-12 days
29 999-1117 Washer M6 split lock stainless steel $0.99 3 ships same day
30 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
31 278-1672 Main brush return lever $21.34 1 usually ships 5-12 days
32 278-1673 Lever $8.91 1 usually ships 5-12 days
33 278-1674 Spacer $3.17 2 usually ships 5-12 days
34 999-1803 Washer M6 flat fender stainless steel $0.99 5 ships same day
35 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
36 999-9099 Washer M10 flat stainless steel $0.99 1 ships same day
37 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 1 ships same day
38 999-0674 Washer M8 split lock plain finish $0.99 1 ships same day
40 278-1675 Disk plate $6.36 1 usually ships 5-12 days
41 278-1676 Clips $11.44 1 usually ships 5-12 days
42 278-1677 Long fork $16.02 1 usually ships 5-12 days
43 999-6697 Nut M10-1.5 hex stainless steel $1.01 2 ships same day
44 278-1678 Bar $16.02 1 usually ships 5-12 days
45 278-1679 Joint head $16.02 1 usually ships 5-12 days
46 278-1647 Screw M6 x 25 socket head $3.17 3 usually ships 5-12 days
47 278-1680 Serial decal Call for price 1 usually ships 5-12 days
48 278-1169 Rocker switch $3.17 1 usually ships 5-12 days
49 278-0580 Key switch kit $45.74 1 ships same day
50 278-1681 Main brush decal $3.17 1 usually ships 5-12 days
51a 278-1682 Side brush decal Call for price 1 (before SN 000134) usually ships 5-12 days
51b 278-1683 Side brush decal $3.17 1 (after SN 000133) usually ships 5-12 days
52 278-1684 Steering wheel cover $3.17 1 (after SN 000133) usually ships 5-12 days
