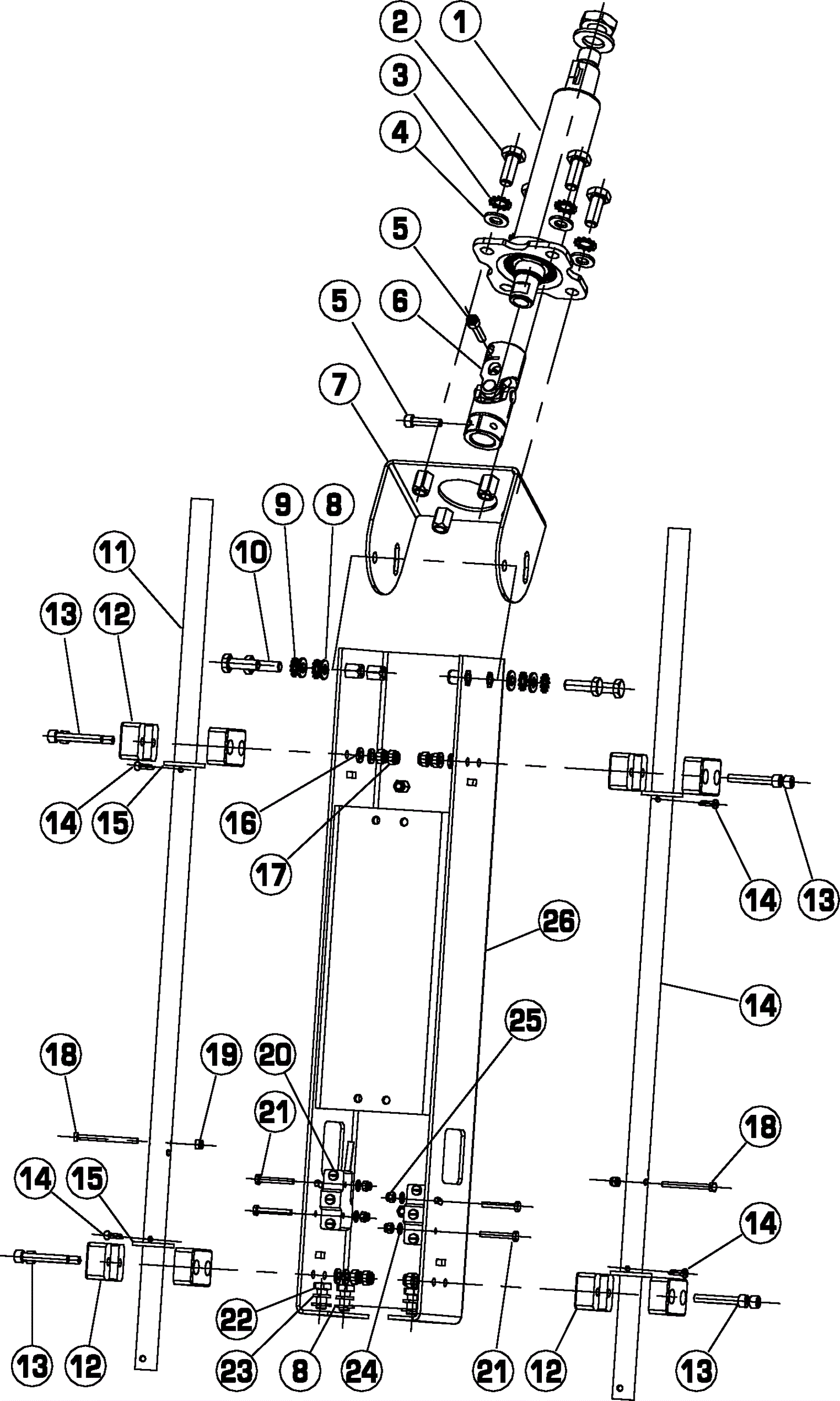

IS1100 Lower Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-1645 Steering column $21.21 1 usually ships 5-12 days
2 278-0703 Screw $3.17 4 usually ships 5-12 days
3 278-1646 Spring lock washer $3.17 4 usually ships 5-12 days
4 999-9099 Washer M10 flat stainless steel $0.99 4 ships same day
5 278-1647 Screw M6 x 25 socket head $3.17 2 usually ships 5-12 days
6 278-1648 Joint $155.23 1 usually ships 5-12 days
7 278-1649 Support $21.34 1 usually ships 5-12 days
7 278-1537 Washer 8 x 16 x 1.6 plain $3.17 4 usually ships 5-12 days
9 278-1535 Spring lock washer $3.17 4 usually ships 5-12 days
10 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 4 ships same day
11 278-1650 Lever shaft $21.34 2 usually ships 5-12 days
12 278-1587 Main brush support shaft $3.17 4 usually ships 5-12 days
13 278-1586 Screw M6 x 40 round head $3.17 8 usually ships 5-12 days
14 278-1651 Elastic pin 4 x 25 $3.17 4 usually ships 5-12 days
15 278-1652 Washer 19 x 34 x 3 plain $3.17 4 usually ships 5-12 days
16 999-6714 Washer M6 x 12mm flat stainless steel $0.99 8 ships same day
17 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 8 ships same day
18 278-1653 Screw hex head Call for price 2 usually ships 5-12 days
19 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
20 278-1654 Micro switch $21.34 2 usually ships 5-12 days
21 278-1655 Screw M4 x 30 round head $3.17 4 usually ships 5-12 days
22 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 4 ships same day
23 999-0674 Washer M8 split lock plain finish $0.99 4 ships same day
24 278-1567 Washer 4 x 12 x 1 plain $3.17 4 usually ships 5-12 days
25 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
26 278-1656 Column $117.39 1 usually ships 5-12 days
