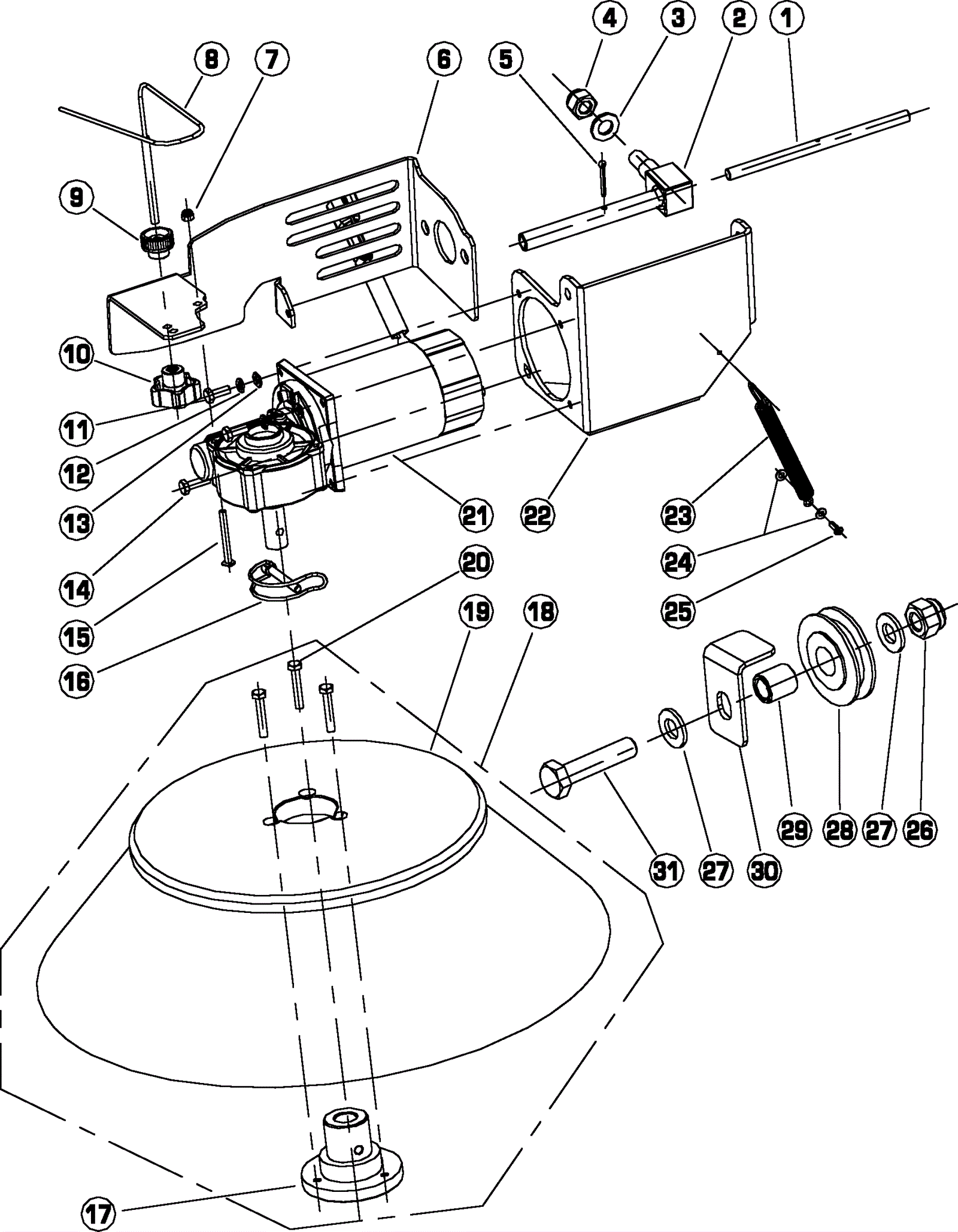

IS1100 Side Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-1621 Side brush shaft $3.65 1 usually ships 7-8 days
2 278-1622 Side brush linkage assembly $18.41 1 usually ships 7-8 days
3 278-0157 Washer $3.65 1 usually ships 7-8 days
4 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 1 ships same day
5 278-0166 Cotter $3.65 1 usually ships 7-8 days
6a 278-1623 Right hand plate $42.97 1 (right) usually ships 7-8 days
6b 278-1624 Left hand plate $42.97 1 (left) usually ships 7-8 days
7 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
8a 278-1625 Right hand side brush cable $13.16 1 (right) usually ships 7-8 days
8b 278-1626 Left hand side brush cable $7.30 1 (left) usually ships 7-8 days
9 278-1602 Small M6 knob $3.65 1 usually ships 7-8 days
10 278-1603 Star knob $3.65 1 usually ships 7-8 days
11 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 ships same day
12 999-1117 Washer M6 split lock stainless steel $0.99 4 ships same day
13 999-6714 Washer M6 x 12mm flat stainless steel $0.99 4 ships same day
14 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 1 ships same day
15 278-1627 Screw M5 x 50 $3.65 1 usually ships 7-8 days
16 278-1628 Split pin $3.65 1 usually ships 7-8 days
17 278-1629 Side brush hub $13.16 1 usually ships 7-8 days
18a 278-1630 Side brush assembly poly $138.07 1 usually ships 7-8 days
18b 278-1631 Side brush assembly poly and wire $284.92 1 usually ships 7-8 days
18c 278-1632 Side brush assembly mixed fibers $695.75 1 usually ships 7-8 days
19a 278-1633 Side brush poly $113.85 1 usually ships 7-8 days
19b 278-1634 Side brush poly and wire Call for price 1 usually ships 7-8 days
19c 278-1635 Side brush mixed fibers $442.75 1 usually ships 7-8 days
20 278-1636 Screw M6 x 25 countersunk hex head $3.65 3 usually ships 7-8 days
21a 278-1505 Right side brush motor kit with connectors $469.02 1 (right) usually ships 7-8 days
21b 278-1644 Left side brush motor kit with connectors $467.54 1 (left) usually ships 7-8 days
22a 278-1638 Right hand brush support $46.02 1 (right) usually ships 7-8 days
22b 278-1637 Left hand brush support $55.11 1 (left) usually ships 7-8 days
23 278-1639 Spring $7.30 1 usually ships 7-8 days
24 278-1567 Washer 4 x 12 x 1 plain $3.65 2 usually ships 7-8 days
25 278-1640 Screw ST 4 x 14 $3.65 1 usually ships 7-8 days
26 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 1 ships same day
27 278-1537 Washer 8 x 16 x 1.6 plain $3.65 2 usually ships 7-8 days
28 278-1641 Pulley $7.30 1 usually ships 7-8 days
29 278-1642 Spacer $3.65 1 usually ships 7-8 days
30 278-1643 Cable fixing bracket $7.30 1 usually ships 7-8 days
31 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 1 ships same day
