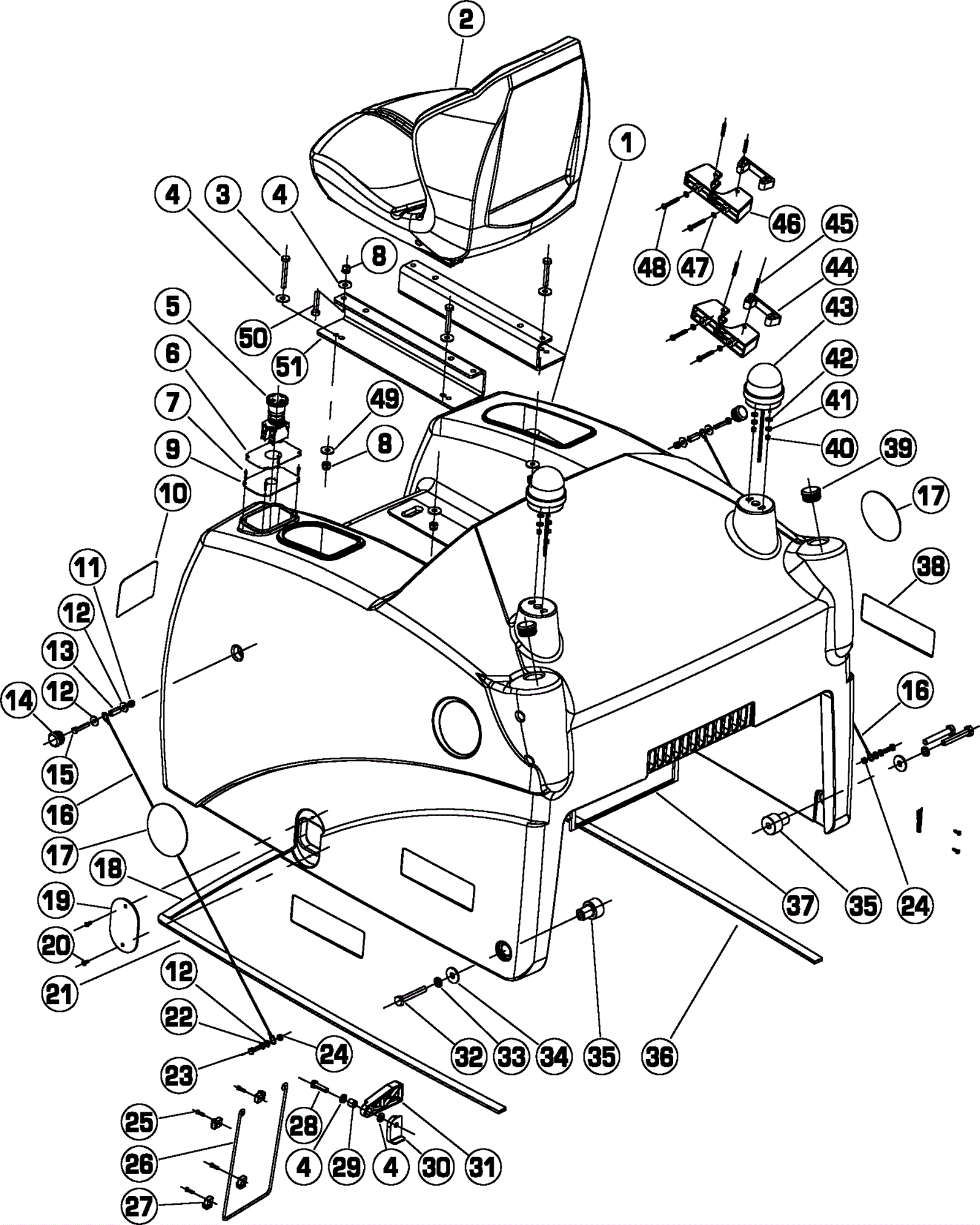

IS1100 Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-1548 Body Call for price 1 usually ships 9-14 days
2 278-1549 Seat $218.31 1 usually ships 9-14 days
3 278-1018 Bolt M8 x 55mm hex head $3.17 4 usually ships 9-14 days
4 278-1537 Washer 8 x 16 x 1.6 plain $3.65 10 usually ships 9-14 days
5 278-0402 Emergency stop switch $46.02 1 ships same day
6 278-1550 Emergency switch decal $3.65 1 usually ships 9-14 days
7 278-1551 Screw 2.9 x 16 $3.65 4 usually ships 9-14 days
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 8 ships same day
9 278-1552 Emergency switch panel $7.30 1 usually ships 9-14 days
10 278-1553 Warning decal Call for price 1 usually ships 9-14 days
11 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
12 999-1803 Washer M6 flat fender stainless steel $0.99 6 ships same day
13 278-1554 Tube $3.65 2 usually ships 9-14 days
14 278-1555 Cap $3.65 2 usually ships 9-14 days
15 278-1556 Screw M6 x 35 round head $3.65 2 usually ships 9-14 days
16 278-1557 Rope $7.30 2 usually ships 9-14 days
17 278-0029 ICE decal $7.30 2 usually ships 9-14 days
18 278-1558 Middle gasket $3.65 1 usually ships 9-14 days
19 278-0444 Cover $6.36 1 ships same day
20 999-9101 Screw M4-.7 x 10mm pan head stainless steel $0.99 2 ships same day
21 278-1559 Left hand gasket $3.65 1 usually ships 9-14 days
22 999-1117 Washer M6 split lock stainless steel $0.99 2 ships same day
23 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
24 278-1560 Tube $3.65 2 usually ships 9-14 days
25 278-0863 Screw M4 x 16mm pan head $3.65 4 usually ships 9-14 days
26 278-0063 Cargo net $18.41 1 usually ships 9-14 days
27 278-0064 Clamp $3.65 4 ships same day
28 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 1 ships same day
29 278-0033 Spacer $8.91 1 ships same day
30 278-0030 Bracket $3.65 1 usually ships 9-14 days
31 278-0032 Recovery tank support $3.65 1 usually ships 9-14 days
33 999-1081 Washer M10 split lock stainless steel $0.99 2 ships same day
34 999-6713 Washer M10 x 30mm flat stainless steel $0.99 2 ships same day
35 278-1562 Pin $6.95 2 usually ships 9-14 days
36 278-1563 Right hand gasket $3.65 1 usually ships 9-14 days
37 278-1564 Gasket $10.25 1 usually ships 9-14 days
38 278-0067 i-SYNERGY decal $5.08 2 (only for i-synergy) usually ships 9-14 days
39 278-1565 Cap $3.65 2 usually ships 9-14 days
40 278-1045 Hex nut $3.65 4 usually ships 9-14 days
41 999-1954 Washer M4 lock $0.99 4 ships same day
42 278-1567 Washer 4 x 12 x 1 plain $3.65 4 usually ships 9-14 days
43 278-1568 Flash light $106.72 2 usually ships 9-14 days
44 278-1569 Clamp $3.65 2 usually ships 9-14 days
45 278-1570 Pin $3.65 4 usually ships 9-14 days
46 278-1571 Bracket $7.30 2 usually ships 9-14 days
47 278-0665 Washer $3.65 4 usually ships 9-14 days
48 278-1572 Screw M5 x 35 $3.65 4 usually ships 9-14 days
49 999-6695 Washer M8 fender stainless steel $0.99 4 ships same day
50 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
51 278-1573 Bracket $6.36 2 usually ships 9-14 days
