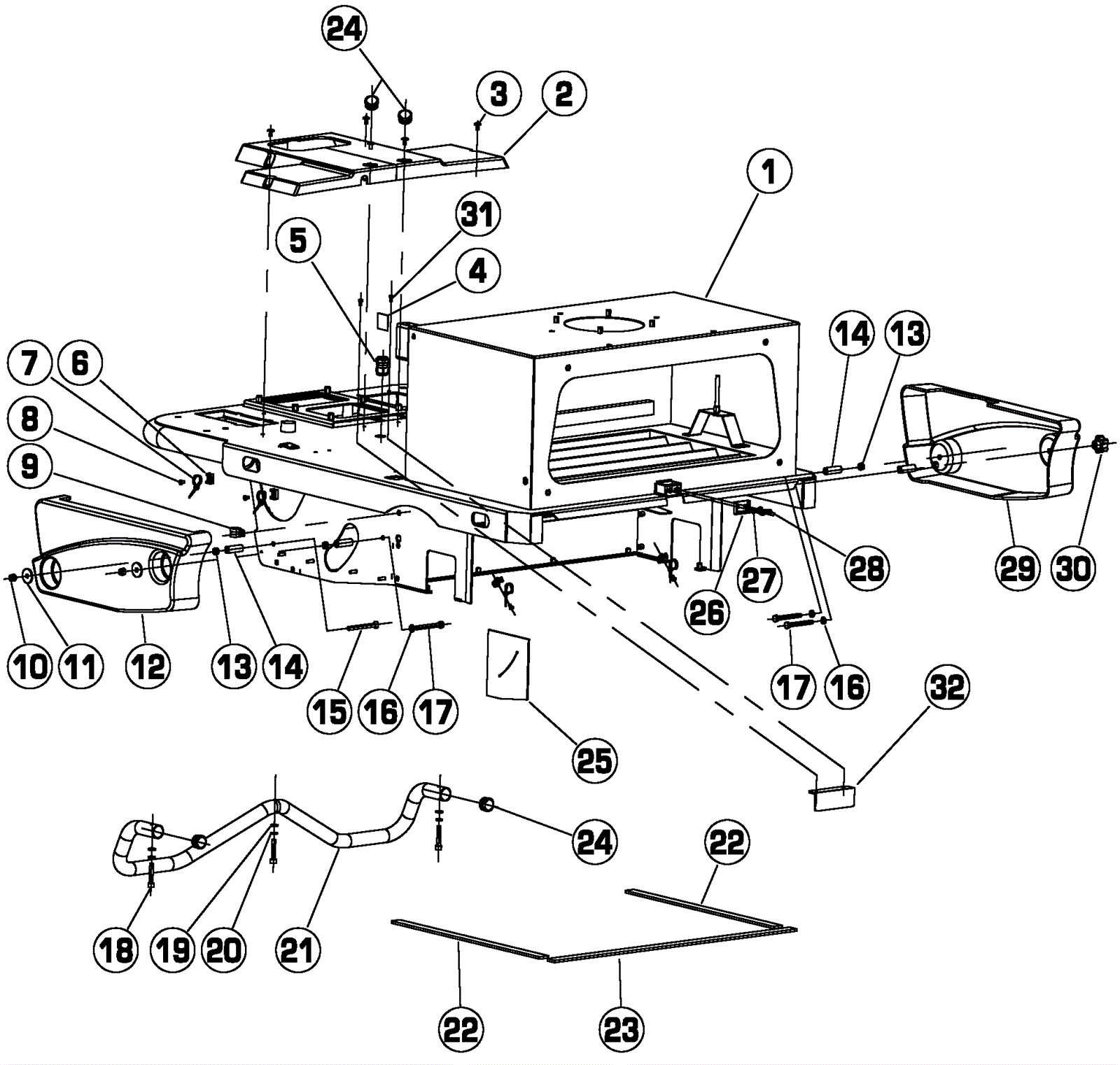

IS1100 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-1526 Chassis assembly $1,268.08 1 usually ships 9-14 days
2 278-1527 Foot board $48.05 1 usually ships 9-14 days
3 278-0927 Screw M6 x 14mm $3.17 6 usually ships 9-14 days
4 278-1528 Main brush adjustment decal $3.17 1 usually ships 9-14 days
5 278-1529 Strain relief Call for price 1 usually ships 9-14 days
6 278-1530 Clamp support $3.17 4 usually ships 9-14 days
7 278-0521 Tie $3.17 4 ships same day
8 278-1531 Screw M5 x 10 countersunk hex head $3.17 5 usually ships 9-14 days
9 278-1168 Cord clamp $3.17 1 usually ships 9-14 days
10 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
11 999-6695 Washer M8 fender stainless steel $0.99 2 ships same day
12 278-1532 Left hand cover $48.05 1 usually ships 9-14 days
13 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 ships same day
14 278-1533 Spacer $3.17 4 usually ships 9-14 days
15 278-1534 Screw M8 x 80 countersunk hex head $3.17 1 usually ships 9-14 days
16 278-1535 Spring lock washer $3.17 1 usually ships 9-14 days
17 278-1536 Screw M8 x 70 round head stainless steel $3.17 3 usually ships 9-14 days
18 278-0219 Screw M8 $3.17 3 usually ships 9-14 days
19 278-1537 Washer 8 x 16 x 1.6 plain $3.17 3 usually ships 9-14 days
20 999-0674 Washer M8 split lock plain finish $0.99 3 ships same day
21 278-1538 Front bumper $66.70 1 usually ships 9-14 days
22 278-1539 Gasket $3.17 2 usually ships 9-14 days
23 278-1540 Gasket $3.17 1 usually ships 9-14 days
24 278-1541 Cap $3.17 4 usually ships 9-14 days
25 278-1542 Gasket $32.10 1 usually ships 9-14 days
26 278-1543 Hook Call for price 1 usually ships 9-14 days
27 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
28 278-0801 Screw M6 x 12mm socket head $3.17 2 usually ships 9-14 days
29 278-1544 Right hand cover $48.05 1 usually ships 9-14 days
30 278-1545 Knob $3.17 2 usually ships 9-14 days
31 278-1546 Screw M5 x 8 $3.17 2 usually ships 9-14 days
32 278-1547 Front plate Call for price 1 usually ships 9-14 days
