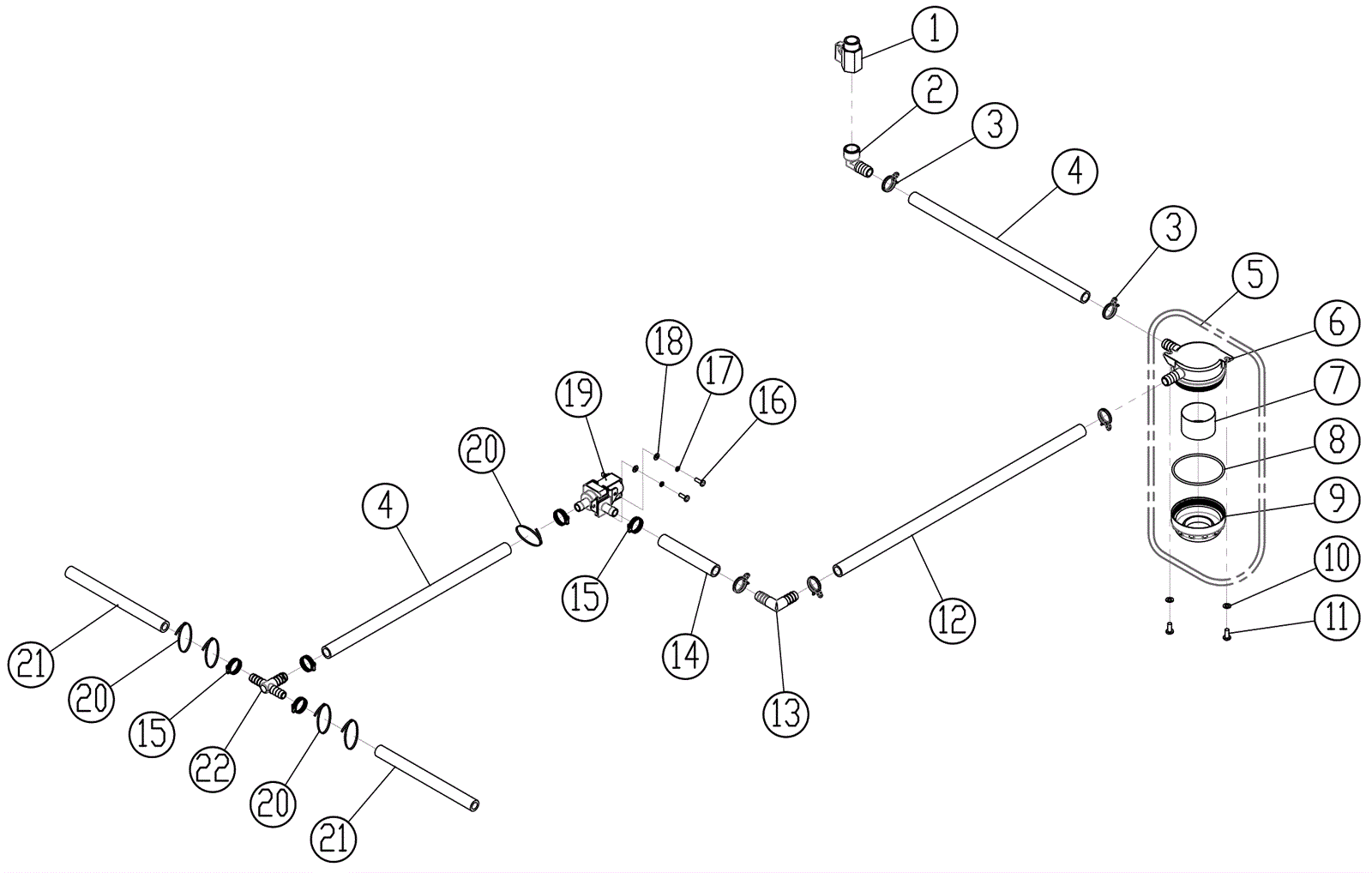

i32BTL Solution Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0069 Ball valve $16.16 1 usually ships 5-12 days
2 278-0070 Elbow $6.60 1 usually ships 5-12 days
3 278-0303 Clamp $2.88 5 usually ships 5-12 days
4 278-1036 Hose 12mm x 330mm $5.78 2 usually ships 5-12 days
5 278-0307 Filter assembly $25.30 1 (includes 6-9) ships same day
6 278-0308 Filter assembly base $5.78 1 usually ships 5-12 days
7 278-0310 40 mesh filter screen assembly $5.78 1 ships same day
8 278-0311 O-ring $2.88 1 ships same day
9 278-0312 Filter assembly cap $8.33 1 ships same day
10 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
11 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 2 ships same day
12 278-1037 Hose 12mm x 480mm $5.78 1 usually ships 5-12 days
13 278-0305 Elbow $2.88 1 usually ships 5-12 days
14 278-1038 Hose 12mm x 120mm $2.88 1 usually ships 5-12 days
15 278-0244 Clamp $2.88 5 usually ships 5-12 days
16 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 2 ships same day
17 999-1954 Washer M4 lock $0.99 2 ships same day
18 999-9089 Washer M4 flat stainless steel $0.99 2 ships same day
19 278-0159 24V solenoid valve $45.38 1 ships same day
20 278-0043 Nylon tie $2.88 5 usually ships 5-12 days
21 278-1039 Hose 10mm x 180mm $2.88 2 usually ships 5-12 days
22 278-1040 Tee fitting $2.88 1 usually ships 5-12 days
