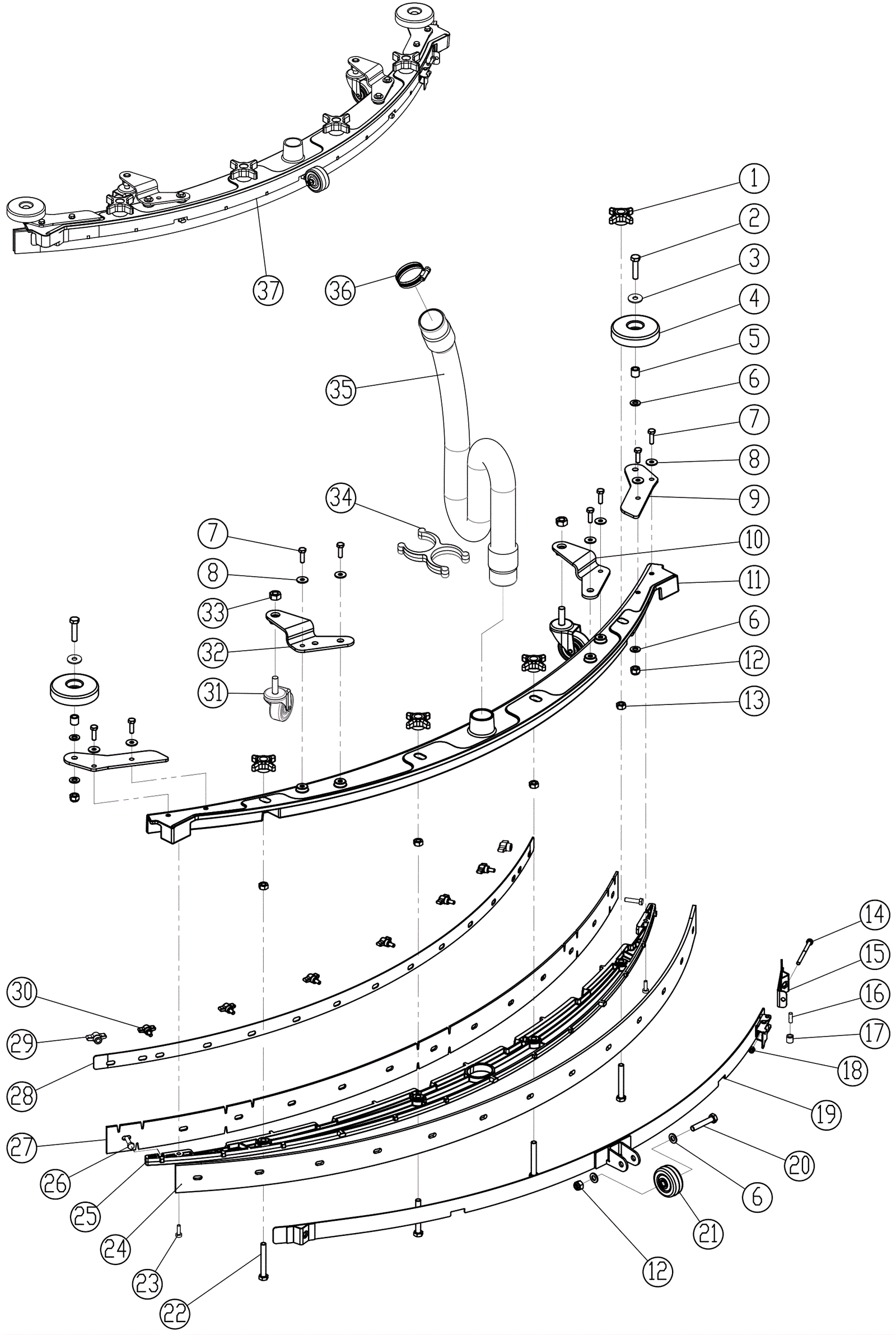

i32BTL 46 1/2 inch Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0426 Knob $11.13 4 ships same day
2 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
4 278-0216 Bumper wheel $4.44 2 ships same day
5 278-0033 Spacer $8.91 2 ships same day
6 999-9097 Washer M8 flat stainless steel $0.99 6 ships same day
7 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 8 ships same day
8 999-1803 Washer M6 flat fender stainless steel $0.99 8 ships same day
9 278-0734 Roller mounting bracket $10.25 2 usually ships 9-14 days
10 278-0287 Right hand bracket $16.53 1 usually ships 9-14 days
11a 278-0741 Squeegee housing $240.13 1 (old style) usually ships 9-14 days
11b 278-0772 Squeegee housing $160.73 1 (new style) usually ships 9-14 days
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
13 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 ships same day
14 999-9160 Screw M5-.8 x 75mm pan head $3.65 1 ships same day
15 278-0495 Short clamp assembly $18.41 1 ships same day
16 278-0297 Bushing $7.30 1 usually ships 9-14 days
17 278-0298 Bushing $10.25 1 usually ships 9-14 days
18 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
19a 278-0773 Squeegee clamp assembly $71.83 1 usually ships 9-14 days
19b 278-0735 Squeegee clamp assembly $36.39 1 (old style) (optional) usually ships 9-14 days
20 278-0219 Screw M8 $3.17 1 usually ships 9-14 days
21 278-0736 2 inch wheel $3.65 1 usually ships 9-14 days
22 999-1368 Screw M8-1.25 x 60mm hex head stainless steel $3.41 4 (old style) ships same day
23 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel $0.99 2 (old style) ships same day
24a 278-0774 Squeegee blade linatex rear $79.79 1 (old style) usually ships 9-14 days
24b 278-1140 Squeegee blade poly urethane rear $102.01 1 (old style) (optional) usually ships 9-14 days
24c 278-0737 Squeegee blade linatex rear $86.22 1 (new style) usually ships 9-14 days
24d 278-1136 Squeegee blade poly urethane rear Call for price 1 (new style) (optional) usually ships 9-14 days
25a 278-0775 Squeegee retainer $69.76 1 (old style) usually ships 9-14 days
25b 278-0738 Retainer $173.89 1 (new style) usually ships 9-14 days
26 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 2 (old style) ships same day
27a 278-0776 Squeegee blade linatex front $60.65 1 (old style) usually ships 9-14 days
27b 278-1141 Squeegee blade poly urethane front $79.79 1 (old style) (optional) usually ships 9-14 days
27c 278-0739 Squeegee blade linatex front $64.15 1 (new style) usually ships 9-14 days
27d 278-1137 Squeegee blade poly urethane front Call for price 1 (new style) (optional) usually ships 9-14 days
28 278-0742 Front blade clamp $46.02 1 (old style) usually ships 9-14 days
29 278-0468 Knob $5.30 2 (old style) ships same day
30 278-0743 Knob M6 $7.30 6 (old style) usually ships 9-14 days
31 278-0288 2 inch caster wheel $22.99 2 ships same day
32 278-0294 Left hand bracket $16.53 1 usually ships 9-14 days
33 999-6697 Nut M10-1.5 hex stainless steel $1.01 2 ships same day
34 278-0299 Vacuum hose holder $5.10 1 usually ships 9-14 days
35 278-0300 4 1/2 foot vacuum hose $48.69 1 ships same day
36 278-0025 Hose clamp $3.17 1 ships same day
37a 278-1524 46.5 inch squeegee assembly Call for price 1 (old style) (optional) usually ships 9-14 days
37b 278-0740 Squeegee assembly (new style) $889.81 1 (new style) (standard) usually ships 9-14 days
