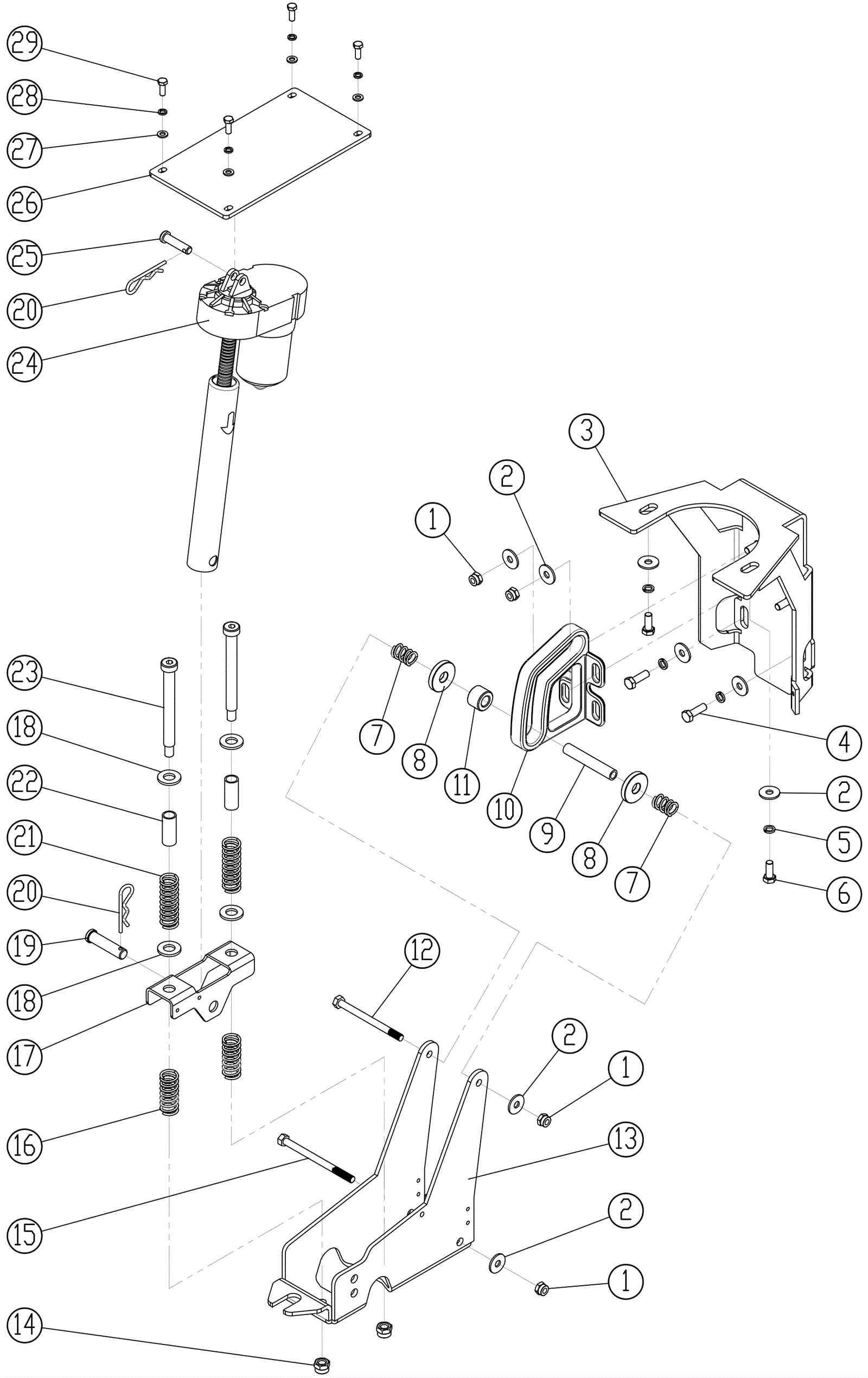

i32BTL Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 6 ships same day
3 278-0717 Guide mounting bracket $77.62 1 usually ships 5-12 days
4 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
5 999-0674 Washer M8 split lock plain finish $0.99 4 ships same day
6 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
7 278-0718 Spring $2.88 2 usually ships 5-12 days
8 278-0719 Washer $7.48 2 usually ships 5-12 days
9 278-0720 Shaft $5.78 1 usually ships 5-12 days
10 278-0721 Roller guide $194.04 1 usually ships 5-12 days
11 278-0722 Roller $5.78 1 usually ships 5-12 days
12 999-9159 Bolt M8-1.0 x 100mm hex cap $2.68 1 ships same day
13 278-0723 Scrub lift bracket $119.02 1 usually ships 5-12 days
14 278-0724 Nut 3/8 lock $2.88 2 usually ships 5-12 days
15 278-1028 Bolt M8 x 110mm hex head $5.78 1 usually ships 5-12 days
16 278-0725 Spring $2.88 2 usually ships 5-12 days
17 278-0726 Spring bracket $14.56 1 usually ships 5-12 days
18 278-0119 Washer $2.40 4 usually ships 5-12 days
19 278-0727 Pin $5.78 1 usually ships 5-12 days
20 278-0451 Cotter pin $2.88 2 usually ships 5-12 days
21 278-0729 Spring $2.88 2 usually ships 5-12 days
22 278-1029 Sleeve $2.88 2 ships same day
23 278-0731 Bolt 3/8 shoulder $14.56 2 usually ships 5-12 days
24 278-1030 Actuator $848.94 1 usually ships 5-12 days
25 278-0448 Pin $5.78 1 usually ships 5-12 days
26 278-0733 Actuator mounting bracket $33.96 1 usually ships 5-12 days
27 999-6714 Washer M6 x 12mm flat stainless steel $0.99 4 ships same day
28 999-1117 Washer M6 split lock stainless steel $0.99 4 ships same day
29 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
