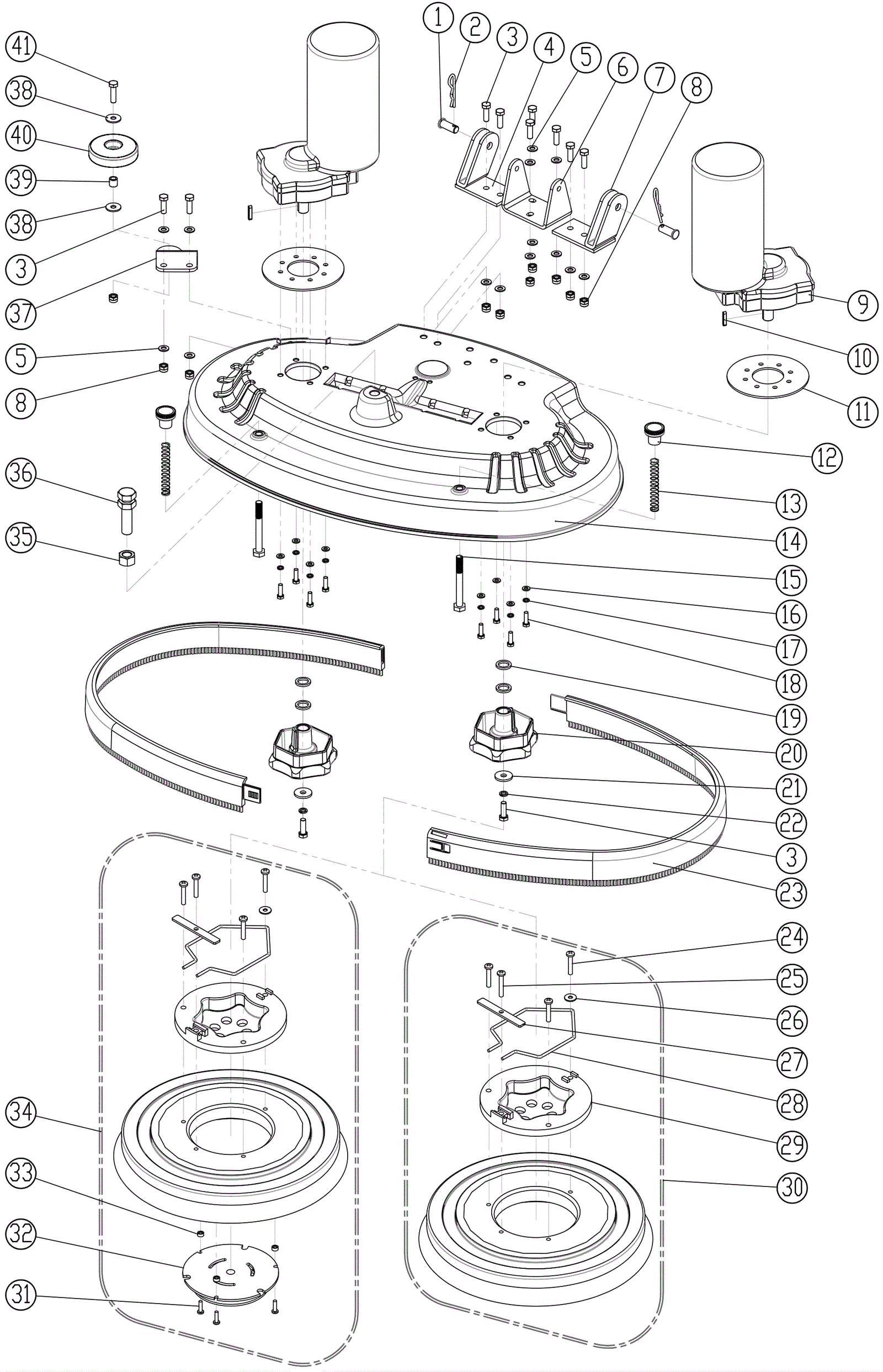

i32BTL Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0705 Pin $2.88 2 usually ships 5-12 days
2 278-0451 Cotter pin $2.88 2 usually ships 5-12 days
3 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 11 ships same day
4 278-0540 Right hand scrub bracket $17.60 1 ships same day
5 999-9097 Washer M8 flat stainless steel $0.99 14 ships same day
6 278-0706 Actuator mounting bracket $19.40 1 usually ships 5-12 days
7 278-0541 Left hand scrub bracket $17.60 1 ships same day
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 10 ships same day
9a 278-1021 24V brush motor $703.40 2 usually ships 5-12 days
9b 278-1522 Carbon brush $5.48 2 usually ships 5-12 days
10 278-0249 Square keyway $4.37 2 ships same day
11 278-1523 Rubber spacer $2.88 2 usually ships 5-12 days
12 278-0708 Knob $5.78 2 usually ships 5-12 days
13 278-0709 Spring $2.88 2 usually ships 5-12 days
14a 278-1022 Scrub head housing $703.40 1 (i28BTL) usually ships 5-12 days
14b 278-1134 Scrub head housing $679.14 1 (i32BTL) usually ships 5-12 days
15 278-0713 Bolt M10 x 90mm hex $5.78 2 usually ships 5-12 days
16 999-6714 Washer M6 x 12mm flat stainless steel $0.99 8 ships same day
17 999-1117 Washer M6 split lock stainless steel $0.99 8 ships same day
18 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 8 ships same day
19 278-0472 Spacer $5.78 4 usually ships 5-12 days
20 278-0473 Brush drive hub $116.13 2 ships same day
21 999-6695 Washer M8 fender stainless steel $0.99 2 ships same day
22 999-0674 Washer M8 split lock plain finish $0.99 2 ships same day
23a 278-1023 Scrub head bumper $118.87 2 (i28BTL) usually ships 5-12 days
23b 278-0641 32 inch scrub head bumper (pkg of 2) $145.53 2 (i32BTL) ships same day
24 278-0711 Screw M6 x 35mm $2.88 12 usually ships 5-12 days
25 278-0712 Screw M6 x 40mm $2.88 4 usually ships 5-12 days
26 999-1803 Washer M6 flat fender stainless steel $0.99 4 ships same day
27 278-1024 Retainer bar $2.88 4 usually ships 5-12 days
28 278-1025 Spring $4.68 4 usually ships 5-12 days
29 278-0474 Clutch plate $106.72 4 usually ships 4-13 days
30a 278-1026 Brush assembly $183.37 2 (i28BTL) (optional) (includes 24-29) usually ships 5-12 days
30b 278-0476 16 inch brush $182.00 2 (i32BTL) (optional) (includes 24-29) usually ships 5-12 days
31 278-0203 Screw $2.88 6 usually ships 5-12 days
32 278-0202 Center lok $34.34 2 ships same day
33 278-0204 Spacer $2.88 6 usually ships 5-12 days
34a 278-1027 Pad driver $183.37 2 (i28BTL) (includes 31-33) usually ships 5-12 days
34b 278-0478 15 inch pad holder $183.37 2 (i32BTL) (inclues 31-33) ships same day
35 278-0714 Nut M16 hex $2.88 1 usually ships 5-12 days
36 278-0715 Adjustment stud M16 $8.10 1 usually ships 5-12 days
37 278-0716 Roller mounting bracket $14.56 1 usually ships 5-12 days
39 278-0033 Spacer $7.04 1 ships same day
40 278-0216 Bumper wheel $4.04 1 ships same day
41 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 1 ships same day
