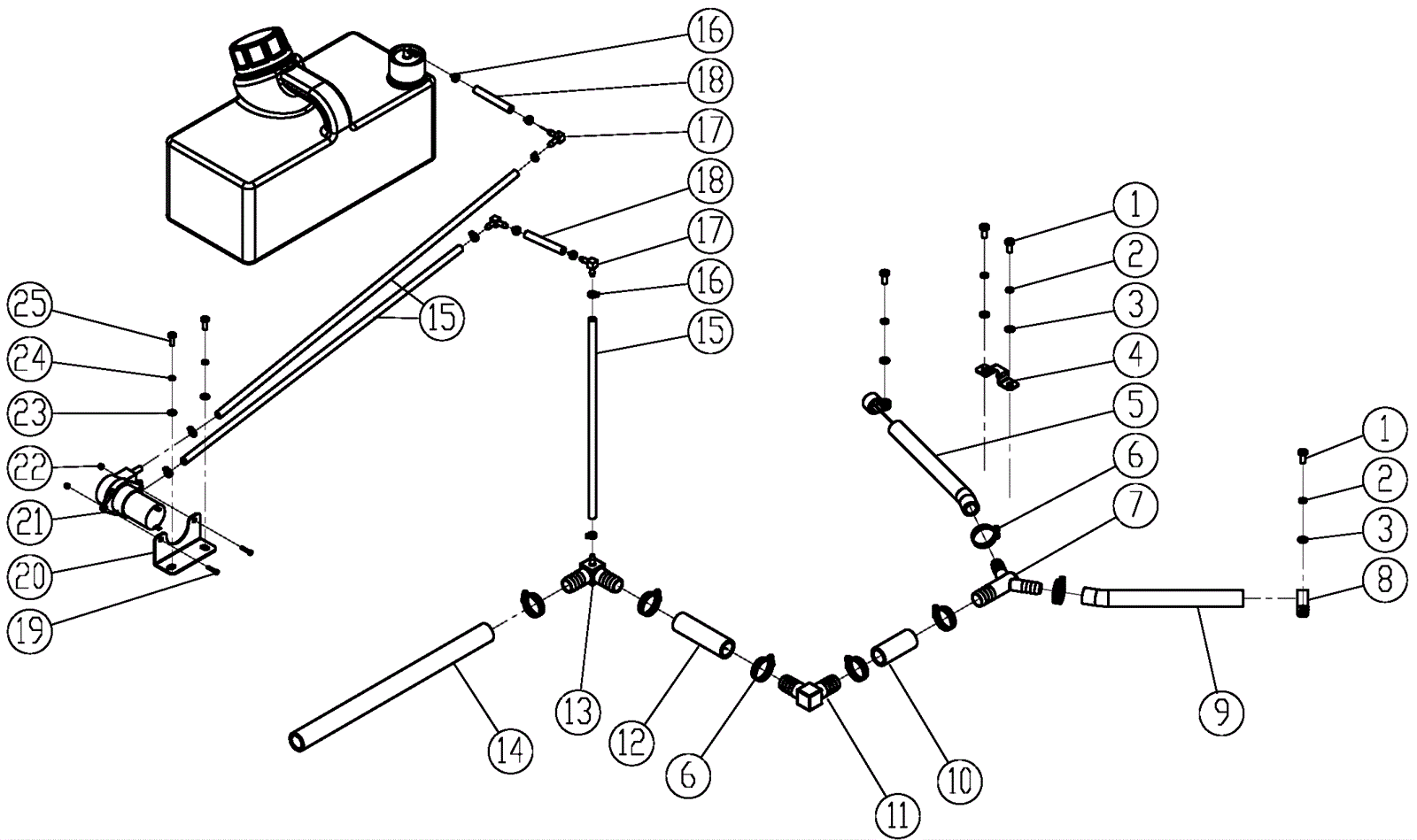

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-9109
|
Screw M5-.8 x 12mm pan head phillips stainless steel |
4 |
|
|
2 |
999-9132
|
Washer M5 split lock stainless steel |
4 |
|
|
3 |
999-9100
|
Washer M5 flat stainless steel |
4 |
|
|
4 |
278-1497
|
Clamp |
1 |
|
|
5 |
278-0513
|
7 inch tube |
1 |
|
|
6 |
278-0066
|
Clamp |
8 |
|
|
7 |
278-0604
|
Plastic fitting |
1 |
|
|
8 |
278-0240
|
Plastic clamp |
2 |
|
|
9 |
278-0514
|
8 1/2 inch tube |
1 |
|
|
10 |
278-0512
|
1 1/2 inch tube |
1 |
|
|
11 |
278-1498
|
Elbow |
1 |
|
|
12 |
278-1499
|
Tubing |
1 |
|
|
13 |
278-0603
|
Elbow fitting |
1 |
|
|
14 |
278-0510
|
Tube |
1 |
|
|
15 |
278-0515
|
13 inch tube |
3 |
|
|
16 |
278-0521
|
Tie |
10 |
|
|
17 |
278-0432
|
Fitting |
3 |
|
|
18 |
278-0605
|
4 inch tubing |
2 |
|
|
19 |
278-1500
|
Screw M3 x 10 pan head |
2 |
|
|
20 |
278-1501
|
Pump bracket |
1 |
|
|
21 |
278-1502
|
Detergent pump kit |
1 |
|
|
22 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
2 |
|
|
23 |
999-9089
|
Washer M4 flat stainless steel |
2 |
|
|
24 |
999-1954
|
Washer M4 lock |
2 |
|
|
25 |
999-1645
|
Screw M4-.7 x 12mm hex head stainless steel |
2 |
|
|
