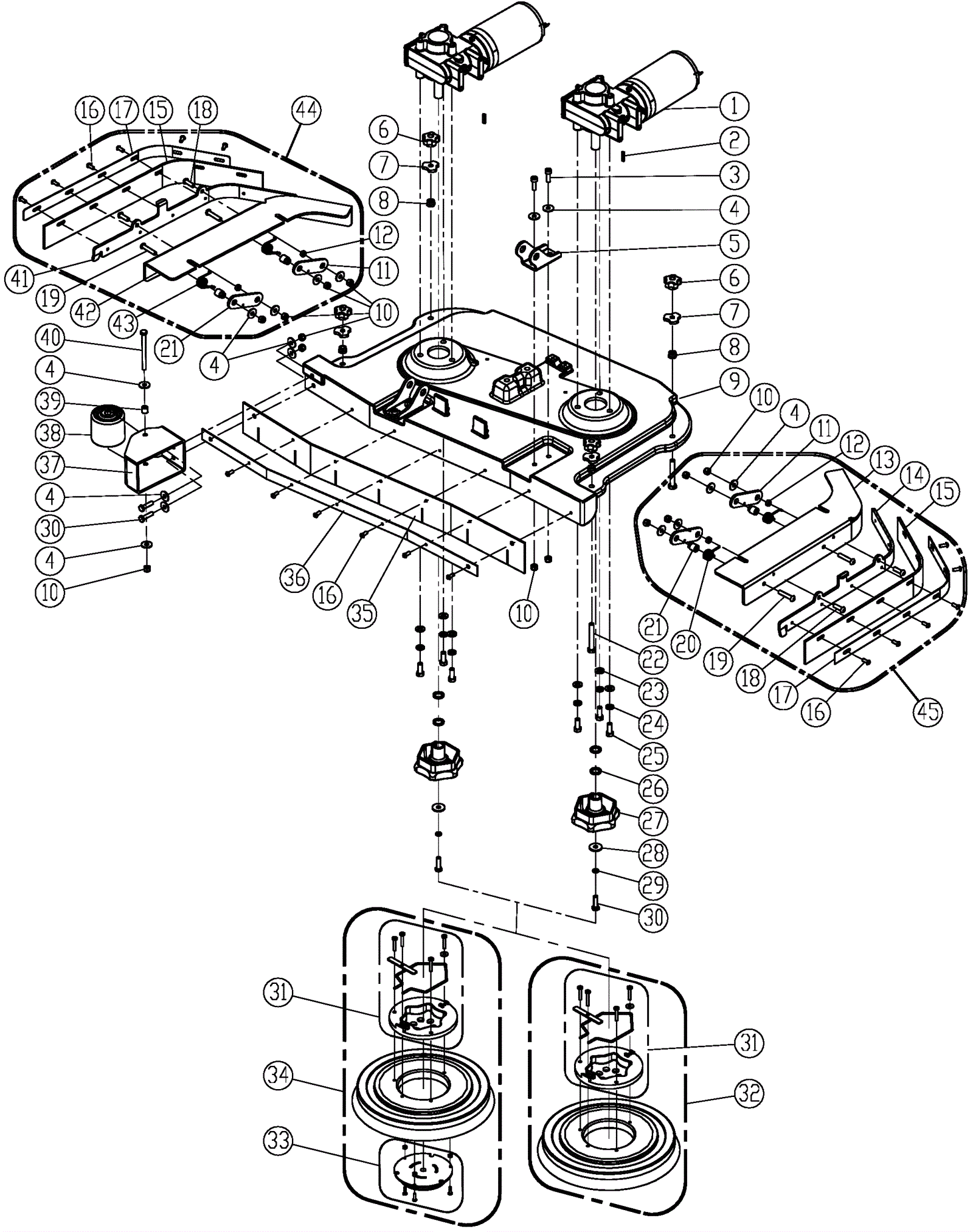

Scrub Head Assembly

#PartDescription ReqNotesAvailability
1 278-0598 26 inch squeegee assembly 2
2 278-0249 Square keyway 2
3 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 4
5 278-1465 Scrub head bracket 2
6 278-0467 Knob 4
7 278-0621 Knob 4
8 278-0960 Nut M10 self locking 4
9 278-1466 Scrub head housing 1
10 999-0496 Nut M8-1.25 nylon insert lock stainless steel 15
11 278-1467 Lever 4
12 278-1468 Sleeve 4
13 278-1469 Left hand bracket 1
14 278-1470 Left hand skirt bracket 1
15 278-1471 linatex side skirt blade 2
16 999-0920 Screw M6-1 x 16mm button head socket 18
17 278-1472 Side skirt clamp 2
18 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 4
19 278-1473 Bolt M8 x 40 socket head 4
20 278-1474 Left rotated torsion spring 2
21 278-1475 Sleeve 4
22 999-6709 Screw M10-1.5 x 80mm hex head stainless steel 4
23 999-9099 Washer M10 flat stainless steel 6
24 999-1482 Nut 3/8-16 nylon lock stainless steel 6
25 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 6
26 278-0472 Spacer 4
27 278-0473 Brush drive hub 2
28 999-6695 Washer M8 fender stainless steel 2
29 999-0674 Washer M8 split lock plain finish 2
30 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 4
31 278-0474 Clutch plate 2
32 278-0475 13 inch polypropylene brush 2
33 278-0202 Center lok 2
34 278-0477 13 inch pad driver 2
35 278-1476 Front skirt 1
36 278-1477 Front skirt clamp 1
37 278-1478 Bumper wheel bracket 1
38 278-0484 Protective wheel 1
39 278-0033 Spacer 6
40 999-9159 Bolt M8-1.0 x 100mm hex cap 1
41 278-1479 Right hand side skirt bracket 1
42 278-1480 Right hand bracket 1
43 278-1481 Right rotated tosion spring 2
44 278-1482 Right hand skirt assembly 1
45 278-1483 Left hand skirt assembly 1
