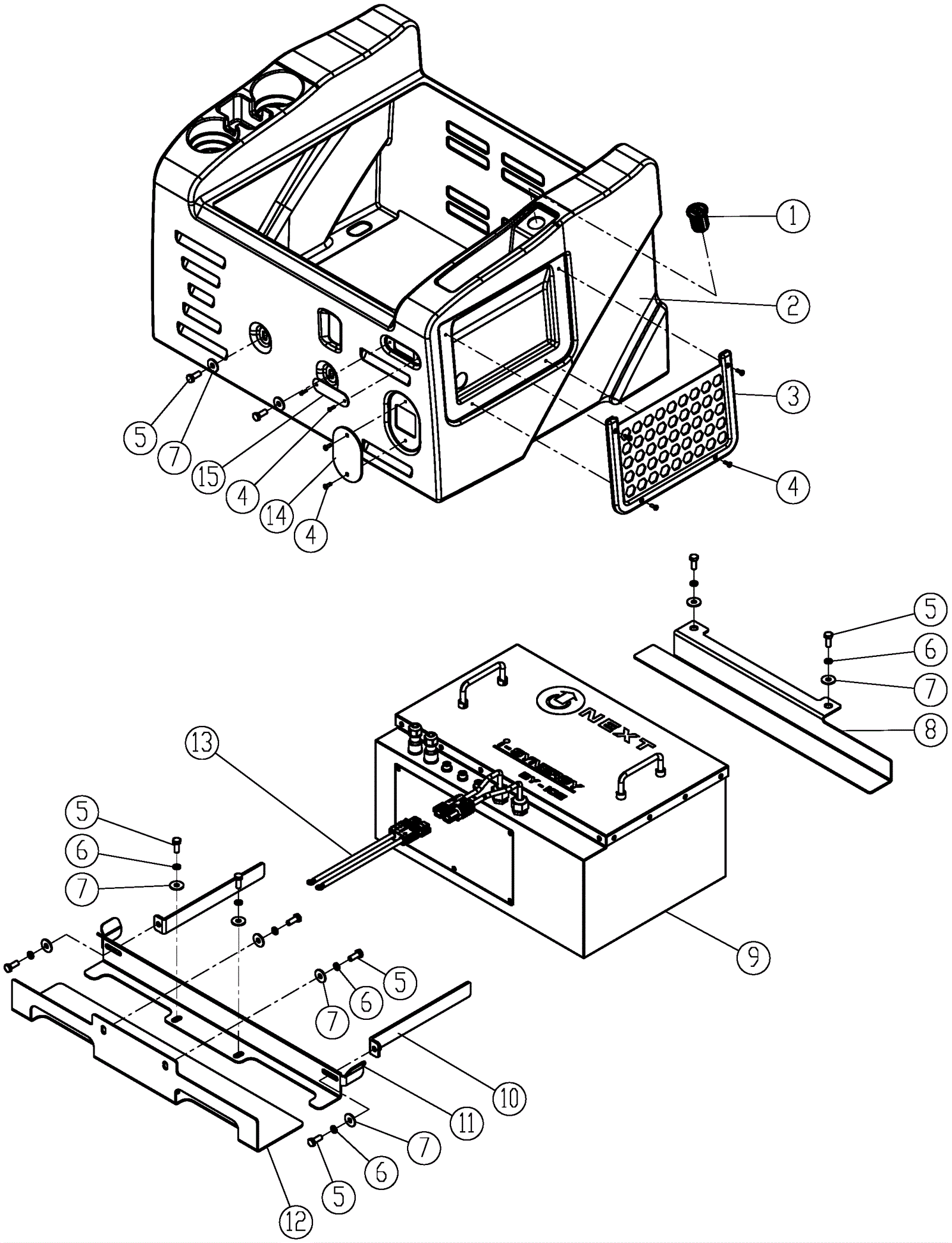

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
278-1455
|
USB charge port |
1 |
|
|
2 |
278-1456
|
Battery box |
1 |
|
|
3 |
278-1457
|
Cargo mesh |
1 |
|
|
4 |
999-9101
|
Screw M4-.7 x 10mm pan head stainless steel |
8 |
|
|
5 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
10 |
|
|
6 |
999-0674
|
Washer M8 split lock plain finish |
8 |
|
|
7 |
999-6695
|
Washer M8 fender stainless steel |
10 |
|
|
8 |
278-1458
|
Rear battery support |
1 |
|
|
9 |
278-1459
|
240AH lithium ion battery (OBSOLETE) |
1 |
|
|
10 |
278-0437
|
Plate |
2 |
|
|
11 |
278-1460
|
Front battery support |
1 |
|
|
12 |
278-1461
|
Fixed battery board |
1 |
|
|
13 |
278-1151
|
Battery connector with cable |
1 |
|
|
14 |
278-0444
|
Cover |
1 |
|
|
15 |
278-0106
|
Clear cover |
1 |
|
|
