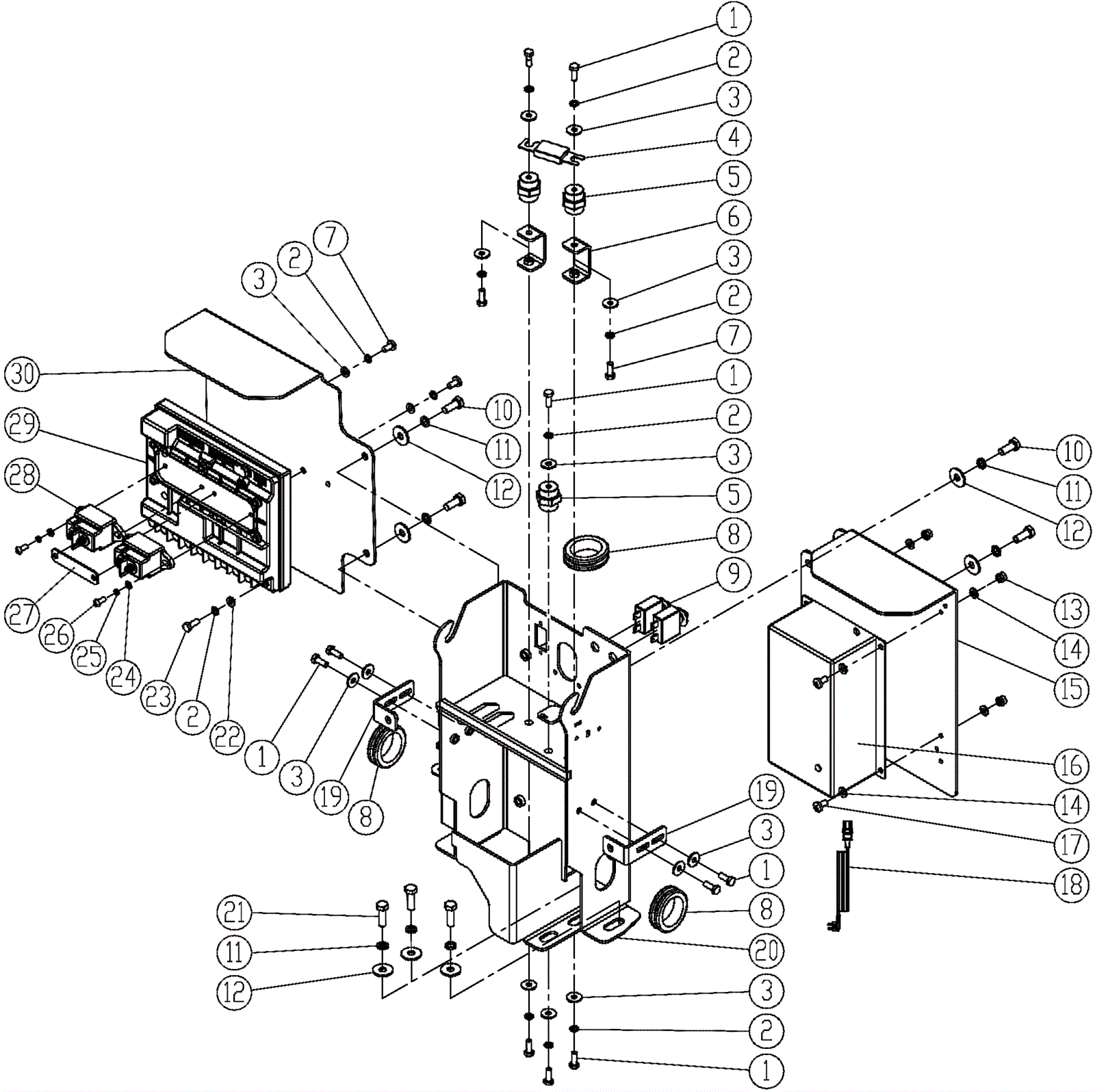

Controller Assembly

#PartDescription ReqNotesAvailability
1 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 10
2 999-1117 Washer M6 split lock stainless steel 20
3 999-1803 Washer M6 flat fender stainless steel 14
4 278-0404 150amp fuse 1
5 278-0405 Insulator 3
6 278-0406 Insulator bracket 2
7 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
8 278-0327 Rubber grommet 4
9 278-0101 5amp circuit breaker 2
10 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
11 999-0674 Washer M8 split lock plain finish 9
12 999-6695 Washer M8 fender stainless steel 9
13 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 4
14 999-9100 Washer M5 flat stainless steel 8
15 278-1448 Charger bracket 1
16 278-0987 Charger kit for the I28BTL 1
17 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 4
18 278-0583 Onboard battery charger cord (Old style-charger 8132020-US) 1 (old style for charger 8132020-US)
19 278-0409 Bracket 2
20 278-1449 Scrub head lifting bracket 1
21 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 5
22 278-0127 Washer 10
23 278-0125 Bolt 10
24 999-9089 Washer M4 flat stainless steel 4
25 999-1954 Washer M4 lock 4
26 278-0863 Screw M4 x 16mm pan head 4
27 278-1450 Connect plate 1
28 278-1451 24VDC 120A relay 2
29 278-1452 Main controller 1
30 278-1453 Main controller bracket 1
