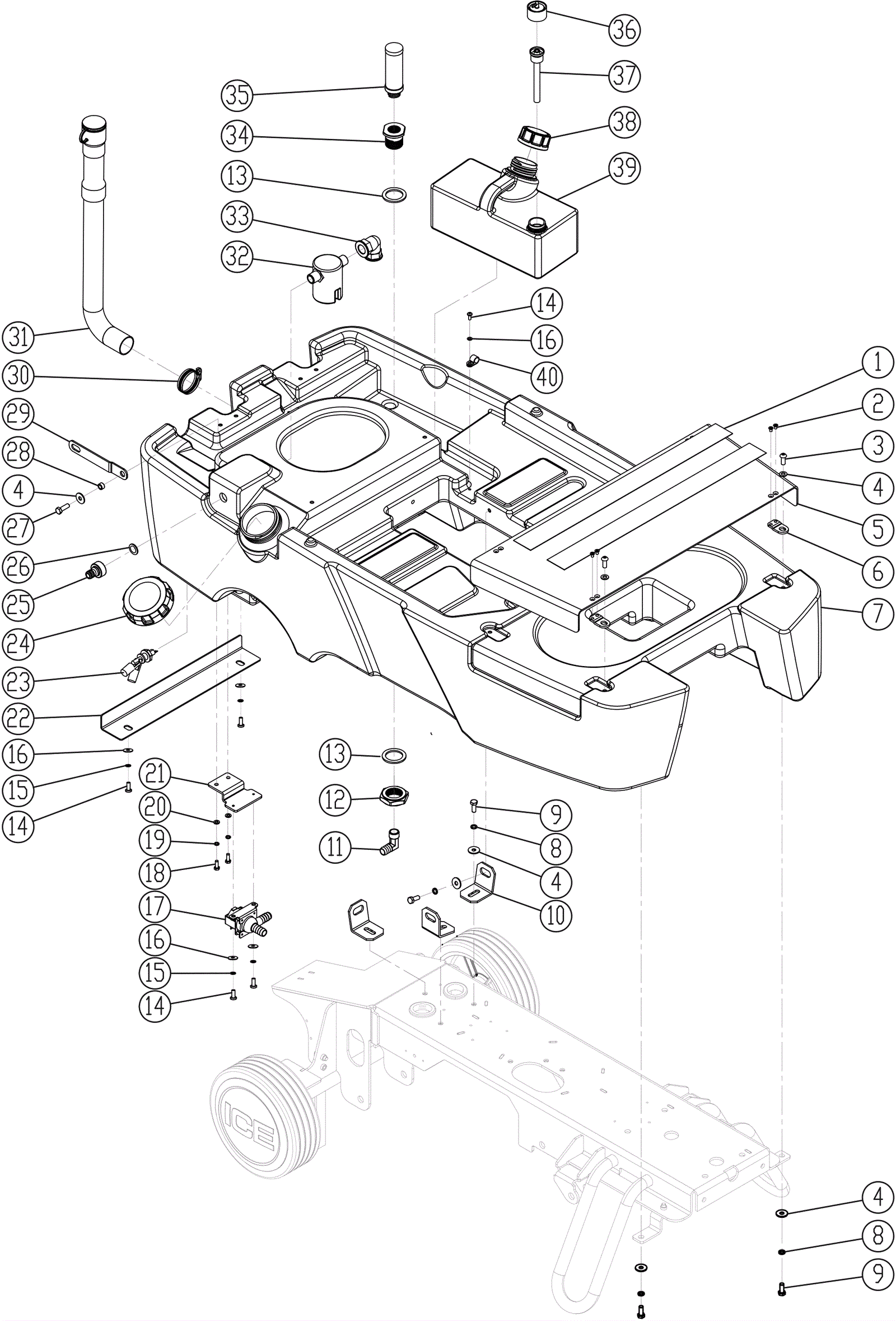

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 278-0342 Foot rest plate 2
2 278-0343 Screw M5 8
3 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 4
5 278-1415 Footrest plate 1
6 278-0344 Junction plate 4
7 278-1355 Solution tank 1
8 999-0674 Washer M8 split lock plain finish 8
9 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
10 278-0345 Solution tank bracket 3
11 278-0346 Elbow 1
12 278-0347 Nut 1
13 278-0348 Seal 2
14 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 9
15 999-9132 Washer M5 split lock stainless steel 4
16 999-9100 Washer M5 flat stainless steel 9
17 278-1416 Solenoid valve 1
18 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
19 999-1117 Washer M6 split lock stainless steel 2
20 999-6714 Washer M6 x 12mm flat stainless steel 2
21 278-1417 Bracket 1
22 278-1418 Protective bracket 1
23 278-0570 Solution level sensor kit 1
24 278-0350 Solution tank cap 1
25 278-1419 G1/2 quick connector 1
26 278-1420 Gasket 1
27 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
28 278-0351 Sleeve 1
29 278-1421 Recovery tank support arm 1
30 278-0025 Hose clamp 1
31 278-0024 Drain hose 1
32 278-1422 Float valve 1
33 278-1423 G1/2 elbow 1
34 278-0354 Strainer adapter assembly 1
35 278-0355 Strainer assembly 1
36 278-0422 Blue safety cap (key adapter) 1
37 278-0423 Cap and tube insert lock 1
38 278-0425 Bottle cap 1
39 278-1424 Detergent tank 1
40 278-0093 P clamp 5
