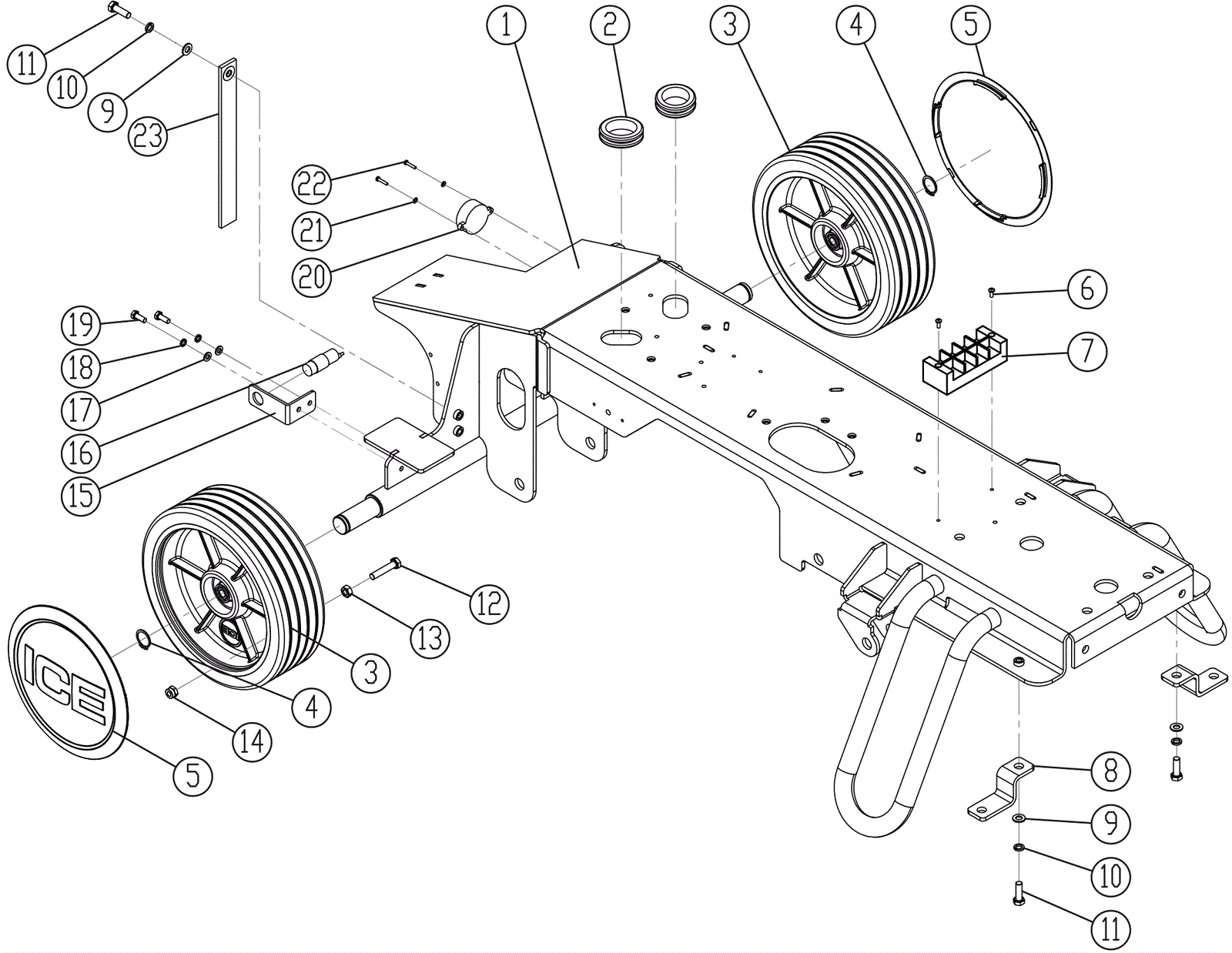

RS26L PLUS Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-1386 Welded main frame Call for price 1 usually ships 9-14 days
2 278-0327 Rubber grommet $6.36 4 usually ships 9-14 days
3a 278-0326 10 inch wheel $329.12 2 ships same day
3b 278-0560 Ball bearing $16.02 4 ships same day
3c 278-1387 10 inch anti-slip wheel Call for price 2 (optional) usually ships 9-14 days
4 278-0325 Retaining ring $3.17 2 ships same day
5 278-0324 Wheel cap $28.56 2 ships same day
6 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 2 ships same day
7 278-1388 Barrier terminal block $20.59 1 usually ships 9-14 days
8 278-0322 Stand bracket $11.44 2 usually ships 9-14 days
10 999-0674 Washer M8 split lock plain finish $0.99 3 ships same day
11 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 3 ships same day
12 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 1 ships same day
13 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 1 ships same day
15 278-1155 Proximity sensor bracket $16.52 1 usually ships 9-14 days
16 278-0179 Proximity sensor kit $60.98 1 usually ships 9-14 days
17 999-1803 Washer M6 flat fender stainless steel $0.99 2 ships same day
18 999-1117 Washer M6 split lock stainless steel $0.99 2 ships same day
19 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
20 278-0561 Horn kit $12.72 1 ships same day
21 999-1521 Washer M3 flat stainless steel $0.99 4 ships same day
22 999-6716 Screw M3-.5 x 12mm hex head stainless steel $0.99 2 usually ships 12-18 days
23 278-0178 Static strap $6.36 1 ships same day
