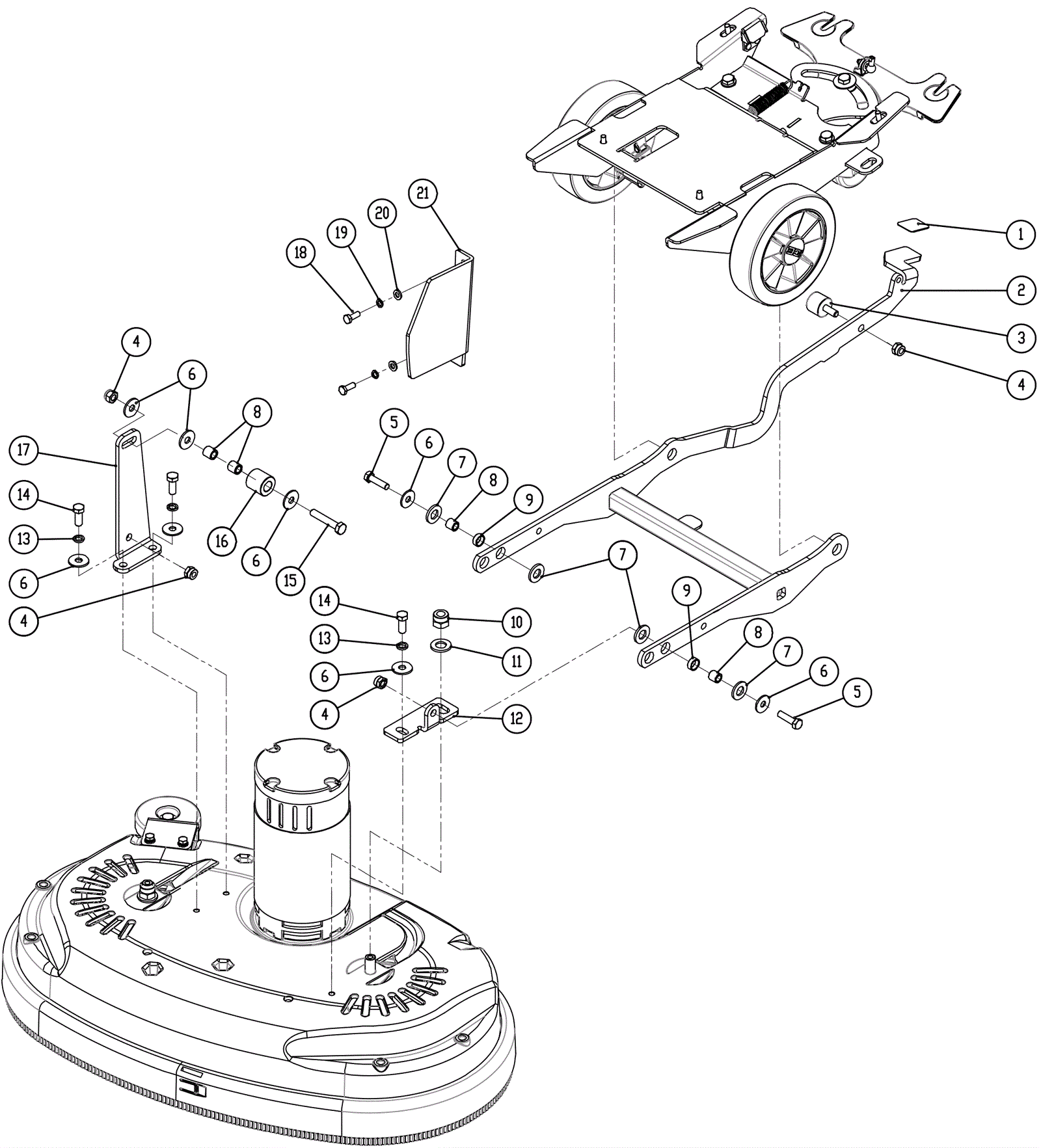

I24BTL Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0273 Non-slip mat $3.17 1 usually ships 5-12 days
2 278-0274 Scrub head lift bracket $165.18 1 usually ships 5-12 days
3 278-0275 Bumper $6.36 1 usually ships 5-12 days
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 5 ships same day
5 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 2 ships same day
7 278-0174 Nylon spacer $3.17 4 usually ships 5-12 days
8 278-0033 Spacer $7.74 4 ships same day
9 278-0163 Sleeve $3.17 2 usually ships 5-12 days
10 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 ships same day
11 278-0157 Washer $2.64 1 usually ships 5-12 days
12 278-0284 Left hand bracket $16.02 1 usually ships 5-12 days
13 999-0674 Washer M8 split lock plain finish $0.99 3 ships same day
14 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 3 ships same day
15 278-0219 Screw M8 $3.17 1 usually ships 5-12 days
16 278-0280 Roller $6.36 1 usually ships 5-12 days
17 278-0285 Right hand bracket $16.02 1 usually ships 5-12 days
18 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
19 999-1117 Washer M6 split lock stainless steel $0.99 2 ships same day
20 999-6714 Washer M6 x 12mm flat stainless steel $0.99 2 ships same day
21 278-0286 Guide bracket $16.02 1 usually ships 5-12 days
