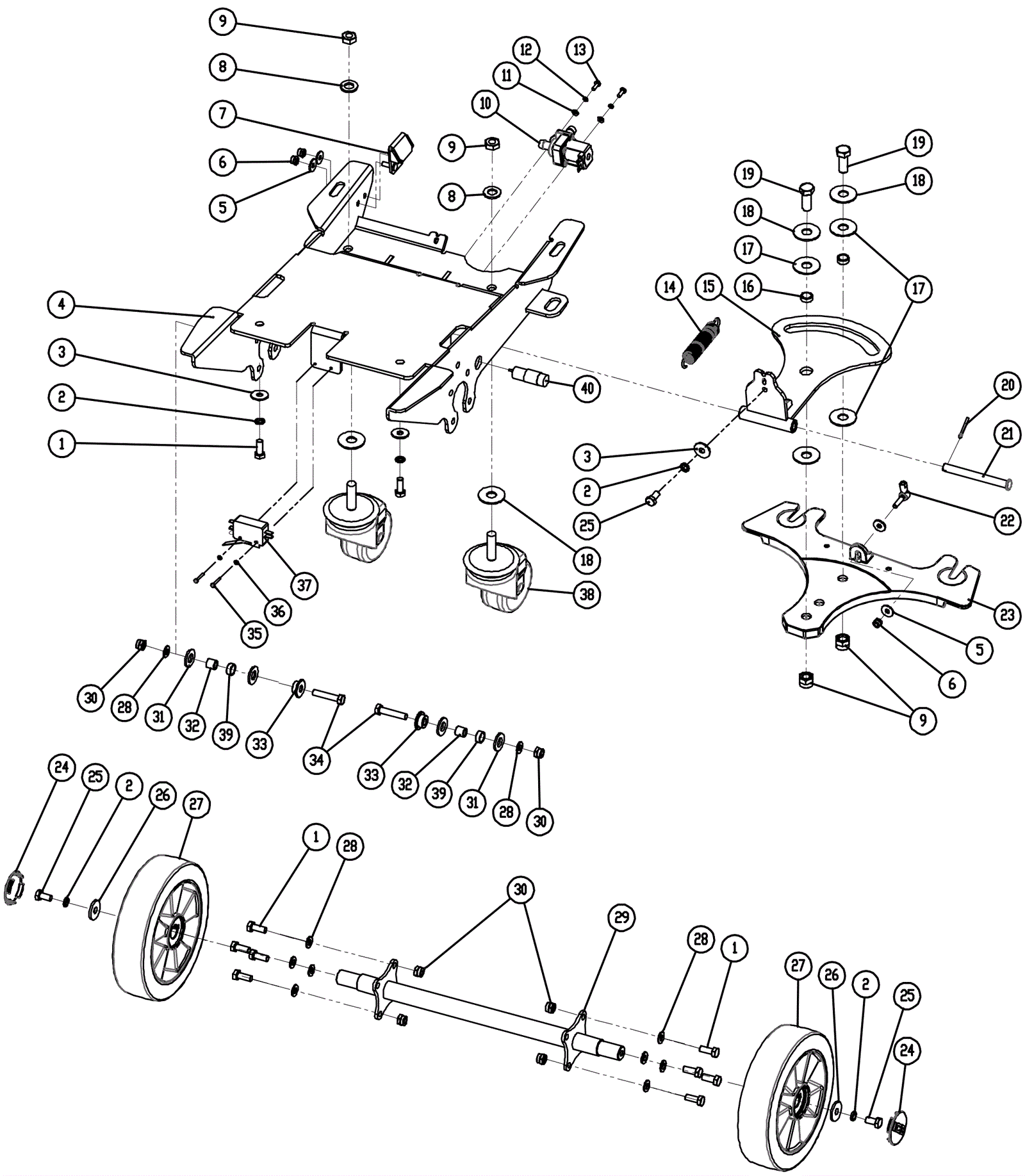

I20NBL Frame and Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 12 ships same day
2 999-0674 Washer M8 split lock plain finish $0.99 7 ships same day
4 278-0155 Main frame $400.22 1 usually ships 5-12 days
5 999-1803 Washer M6 flat fender stainless steel $0.99 4 ships same day
6 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 3 ships same day
7 278-0156 Pedal locking bracket $11.44 1 usually ships 5-12 days
8 278-0157 Washer $2.64 4 usually ships 5-12 days
9 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 4 ships same day
10 278-0159 24V solenoid valve $49.92 1 usually ships 5-12 days
11 999-9089 Washer M4 flat stainless steel $0.99 2 ships same day
12 999-1954 Washer M4 lock $0.99 2 ships same day
13 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 4 ships same day
14 278-0161 Spring $6.36 1 usually ships 5-12 days
15 278-0162 Squeegee lift bracket $75.68 1 usually ships 5-12 days
16 278-1364 Axle sleeve $3.17 2 usually ships 5-12 days
17 278-0164 Thrust washer $4.20 4 usually ships 5-12 days
18 278-0119 Washer $2.64 4 usually ships 5-12 days
19 278-0165 Bolt M12 x 30mm $3.17 2 usually ships 5-12 days
20 278-0166 Cotter $3.17 1 usually ships 5-12 days
21 278-0167 Pin $10.21 1 usually ships 5-12 days
22 278-0168 Ball joint $16.02 1 usually ships 5-12 days
23 278-0169 Squeegee mounting bracket $48.40 1 usually ships 5-12 days
24 278-0170 Wheel cover $2.64 2 usually ships 5-12 days
25 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 3 ships same day
26 999-6695 Washer M8 fender stainless steel $0.99 2 ships same day
27a 278-0171 8 inch wheel $106.72 2 usually ships 5-12 days
27b 278-0907 Ball bearing $12.72 4 usually ships 5-12 days
28 999-9097 Washer M8 flat stainless steel $0.99 10 ships same day
29 278-0172 Shaft $49.70 1 usually ships 5-12 days
30 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 10 ships same day
31 278-0174 Nylon spacer $3.17 4 usually ships 5-12 days
32 278-0033 Spacer $7.74 2 ships same day
33 278-0175 Bushing $6.36 2 usually ships 5-12 days
34 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
35 278-0090 Screw M3 x 25mm $3.17 2 usually ships 5-12 days
36 278-0089 Washer M3 tooth $3.17 2 ships same day
37 278-0176 Microswitch $66.70 1 ships same day
38 278-0177 Swivel caster $158.84 2 ships same day
39 278-0163 Sleeve $3.17 2 usually ships 5-12 days
40 278-0179 Proximity sensor kit $60.98 1 usually ships 5-12 days
