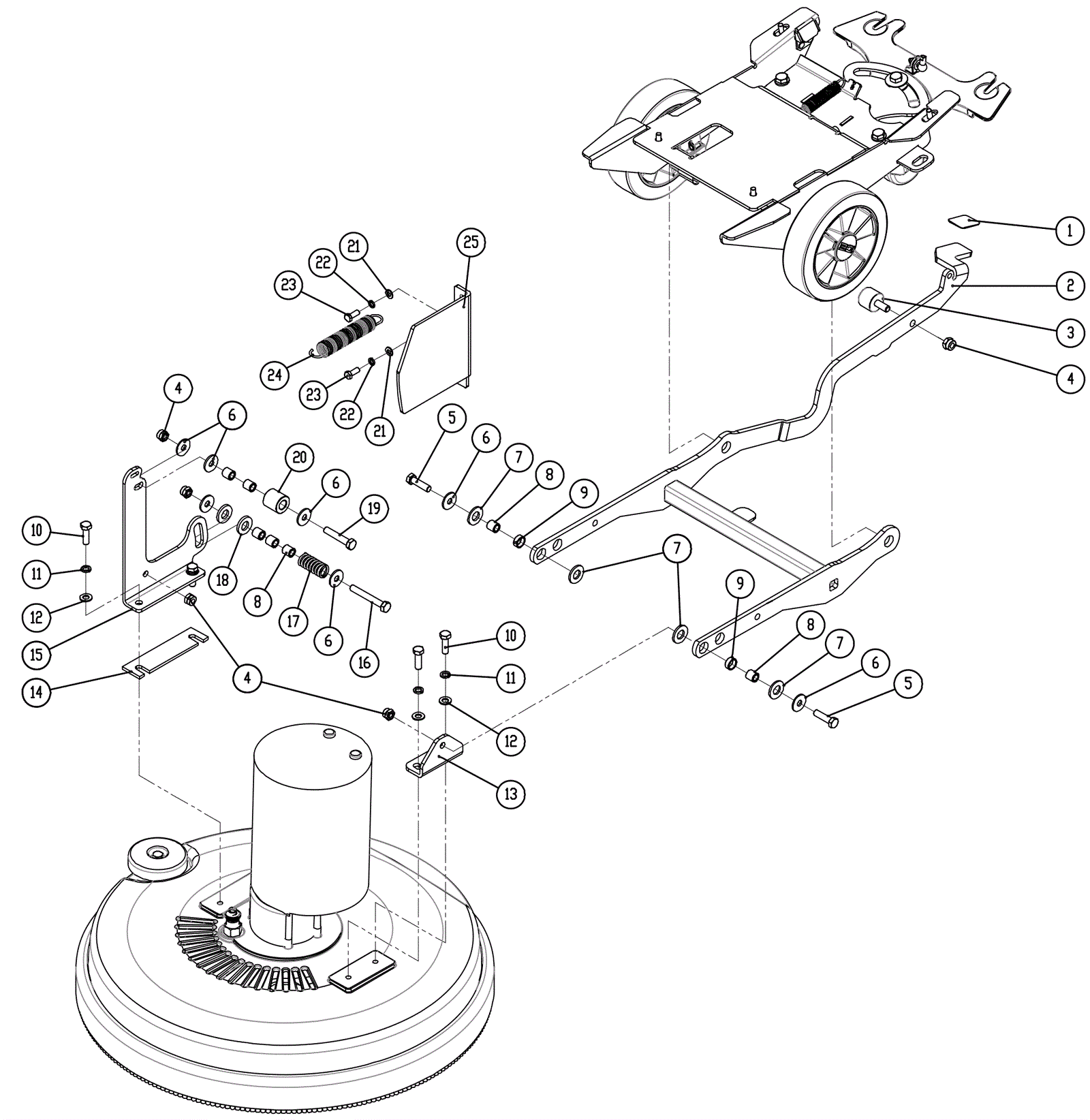

i20NBTL Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0273 Non-slip mat $3.17 1 usually ships 5-12 days
2 278-0274 Scrub head lift bracket $165.18 1 usually ships 5-12 days
3 278-0275 Bumper $6.36 1 usually ships 5-12 days
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 5 usually ships 11-24 days
5 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 2 ships same day
7 278-0174 Nylon spacer $3.17 4 usually ships 5-12 days
8 278-0033 Spacer $7.74 7 ships same day
9 278-0163 Sleeve $3.17 2 usually ships 5-12 days
10 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
11 999-0674 Washer M8 split lock plain finish $0.99 4 ships same day
12 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
13 278-0276 Left hand bracket $16.02 1 usually ships 5-12 days
14 278-0277 Spacer $6.36 1 usually ships 5-12 days
15 278-0278 Right hand bracket $24.38 1 ships same day
16 999-1155 Screw M8-1.25 x 60mm hex head $1.87 1 ships same day
17 278-0279 Spring $3.17 1 usually ships 5-12 days
18 278-0055 Thrust bearing $3.17 2 usually ships 5-12 days
19 278-0219 Screw M8 $3.17 1 usually ships 5-12 days
20 278-0280 Roller $6.36 1 usually ships 5-12 days
21 999-6714 Washer M6 x 12mm flat stainless steel $0.99 2 ships same day
22 999-1117 Washer M6 split lock stainless steel $0.99 2 ships same day
23 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
24 278-0281 Spring $6.36 1 usually ships 5-12 days
25 278-0282 Guide bracket $32.76 1 usually ships 5-12 days
