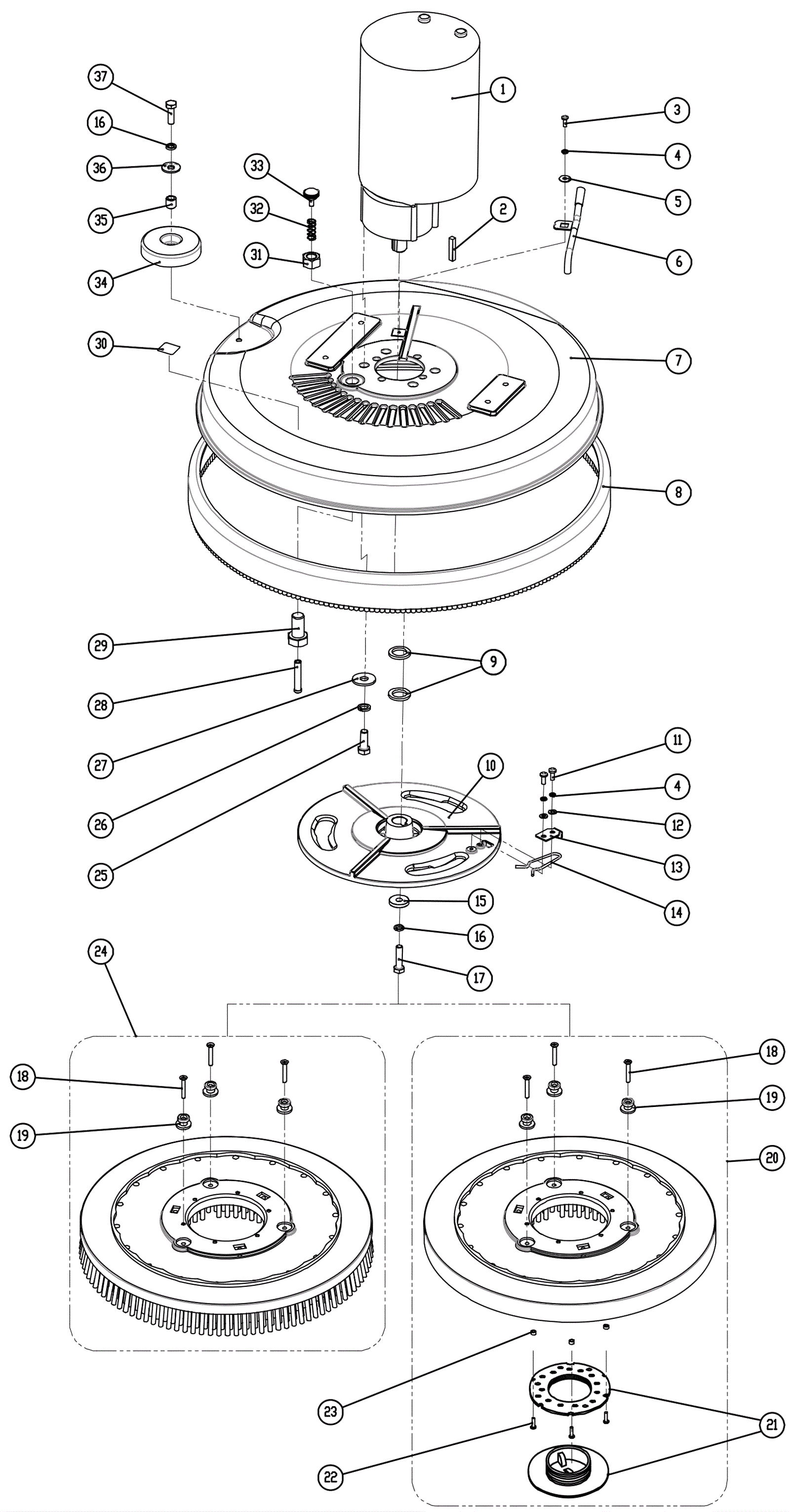

i20NBTL Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1a 278-0009 24V brush motor kit $773.74 1 usually ships 5-12 days
1b 278-1366 Brush motor carbon brush $24.09 2 usually ships 5-12 days
2 278-0186 Square key $3.17 1 ships same day
3 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 1 ships same day
4 999-9132 Washer M5 split lock stainless steel $0.99 3 ships same day
5 999-9100 Washer M5 flat stainless steel $5.83 1 ships same day
6 278-0188 Water supply tube $16.02 1 usually ships 5-12 days
7 278-0189 Scrub head housing $234.78 1 usually ships 5-12 days
8 278-0190 Scrub head bumper $120.05 1 usually ships 5-12 days
9 278-0191 Spacer $3.17 2 usually ships 5-12 days
10 278-0192 3 lug drive hub $60.50 1 usually ships 5-12 days
11 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 2 ships same day
12 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
13 278-0193 Brush plate clamp $3.17 1 usually ships 5-12 days
14 278-0194 Spring clip $3.17 1 usually ships 5-12 days
15 278-0195 Washer $3.17 1 usually ships 5-12 days
16 999-0674 Washer M8 split lock plain finish $0.99 2 ships same day
17 278-0196 Bolt 5/16-18 x 1 1/2 $3.17 1 usually ships 5-12 days
18 278-0197 Screw M6 x 35mm $3.17 6 usually ships 5-12 days
19 278-0198 Stud $6.36 6 usually ships 5-12 days
20a 278-0199 19 inch pad driver $201.71 1 usually ships 5-12 days
20b 278-0200 19 inch pad driver $200.20 1 (optional) usually ships 5-12 days
21a 278-0201 Big mouth center lok $20.22 1 usually ships 1-5 days
21b 278-0202 Center lok $37.77 1 (optional) ships same day
22 278-0203 Screw $3.17 3 usually ships 5-12 days
23 278-0204 Spacer $3.17 3 usually ships 5-12 days
24a 278-0205 19 inch brush (black) $201.71 1 (optional) ships same day
24b 278-0206 19 inch brush (blue) $200.20 1 (optional) usually ships 5-12 days
25 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 ships same day
26 999-1081 Washer M10 split lock stainless steel $0.99 4 ships same day
27 999-6713 Washer M10 x 30mm flat stainless steel $0.99 4 ships same day
28 278-0210 Pin $6.36 1 usually ships 5-12 days
29 278-0211 Screw M14 x 20mm $18.15 1 usually ships 5-12 days
30 278-0212 Warning decal $3.17 1 usually ships 5-12 days
31 278-0213 Nut $3.17 1 usually ships 5-12 days
32 278-0214 Spring $3.17 1 usually ships 5-12 days
33 278-0215 Knob $3.17 1 usually ships 5-12 days
34 278-0216 Bumper wheel $4.44 1 ships same day
35 278-0033 Spacer $7.74 1 ships same day
37 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
