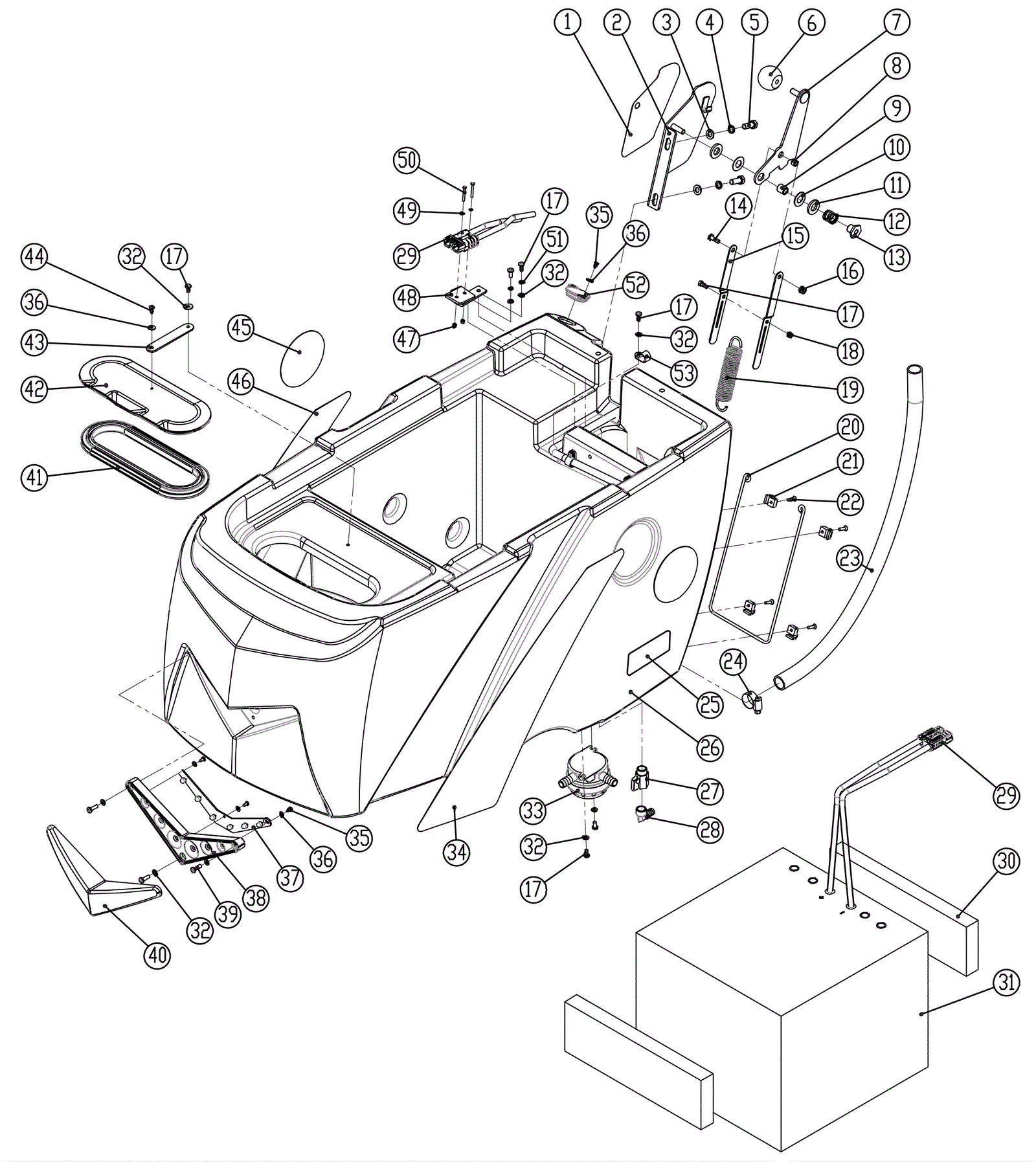

i20NBTL Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0047 Down pressure decal $6.36 1 usually ships 5-12 days
2 278-0048 Down pressure lever bracket $36.30 1 usually ships 5-12 days
3 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
4 999-0674 Washer M8 split lock plain finish $0.99 2 ships same day
5 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
6 278-0050 Ball knob $6.36 1 usually ships 5-12 days
7 278-0051 Down pressure lever $21.23 1 usually ships 5-12 days
8 278-0052 Bushing $3.17 1 usually ships 5-12 days
9 278-0053 Sleeve $3.17 1 usually ships 5-12 days
10 278-0054 Washer $3.17 2 usually ships 5-12 days
11 278-0055 Thrust bearing $3.17 2 usually ships 5-12 days
12 278-0056 Spring $3.17 1 usually ships 5-12 days
13 278-0057 Spring retainer $6.36 1 usually ships 5-12 days
14 999-1592 Bolt M6-1 x 18mm hex head stainless steel $1.24 1 usually ships 1-5 days
15a 278-0058 Spring link $7.70 2 usually ships 5-12 days
15b 278-0059 Orbital head model spring link $8.91 2 usually ships 5-12 days
16 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
17 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 15 ships same day
18 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
19 278-0062 Spring $8.91 1 usually ships 5-12 days
20 278-0063 Cargo net $16.02 1 usually ships 5-12 days
21 278-0064 Clamp $3.17 4 ships same day
22 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 4 ships same day
23 278-1357 Clean tubing $16.02 1 usually ships 5-12 days
24 278-0066 Clamp $3.17 1 ships same day
25 278-0067 i-SYNERGY decal $5.08 2 usually ships 5-12 days
26 278-0068 Solution tank $978.30 1 usually ships 5-12 days
27 278-0069 Ball valve $17.78 1 usually ships 5-12 days
28 278-0070 Elbow $7.26 1 usually ships 5-12 days
29 278-0071 Connector $8.91 2 usually ships 5-12 days
30 278-0072 Battery spacer $3.17 2 usually ships 5-12 days
31 278-1353 110Ah Lithium ion battery pack $5,520.90 1 usually ships 5-12 days
32 999-9100 Washer M5 flat stainless steel $5.83 17 ships same day
33 278-0307 Filter assembly $27.83 1 ships same day
34 278-0075 Left hand side decal $21.34 1 usually ships 5-12 days
35 278-0076 Screw $3.17 4 usually ships 5-12 days
36 999-9089 Washer M4 flat stainless steel $0.99 5 ships same day
37 278-0078 LED light kit $30.91 1 usually ships 5-12 days
38 278-0079 LED light base $28.34 1 usually ships 5-12 days
39 999-1671 Screw M5-.8 x 20mm pan head phillips stainless steel $0.99 3 ships same day
40 278-0081 LED light cover $15.49 1 usually ships 5-12 days
41 278-0082 Seal $6.36 1 usually ships 5-12 days
42 278-0083 Cover $6.36 1 usually ships 5-12 days
43 278-0084 Strap $3.17 1 usually ships 5-12 days
44 278-0085 Screw $3.17 1 ships same day
45 278-0029 ICE decal $6.36 2 usually ships 5-12 days
46 278-0086 Right hand side decal $21.34 1 usually ships 5-12 days
47 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
48 278-0088 Connector bracket $6.36 1 usually ships 5-12 days
49 278-0089 Washer M3 tooth $3.17 2 ships same day
50 278-0090 Screw M3 x 25mm $3.17 2 usually ships 5-12 days
51 999-9132 Washer M5 split lock stainless steel $0.99 2 ships same day
52 278-0092 Solution fill cap $6.36 1 ships same day
53 278-0093 P clamp $3.17 9 usually ships 5-12 days
