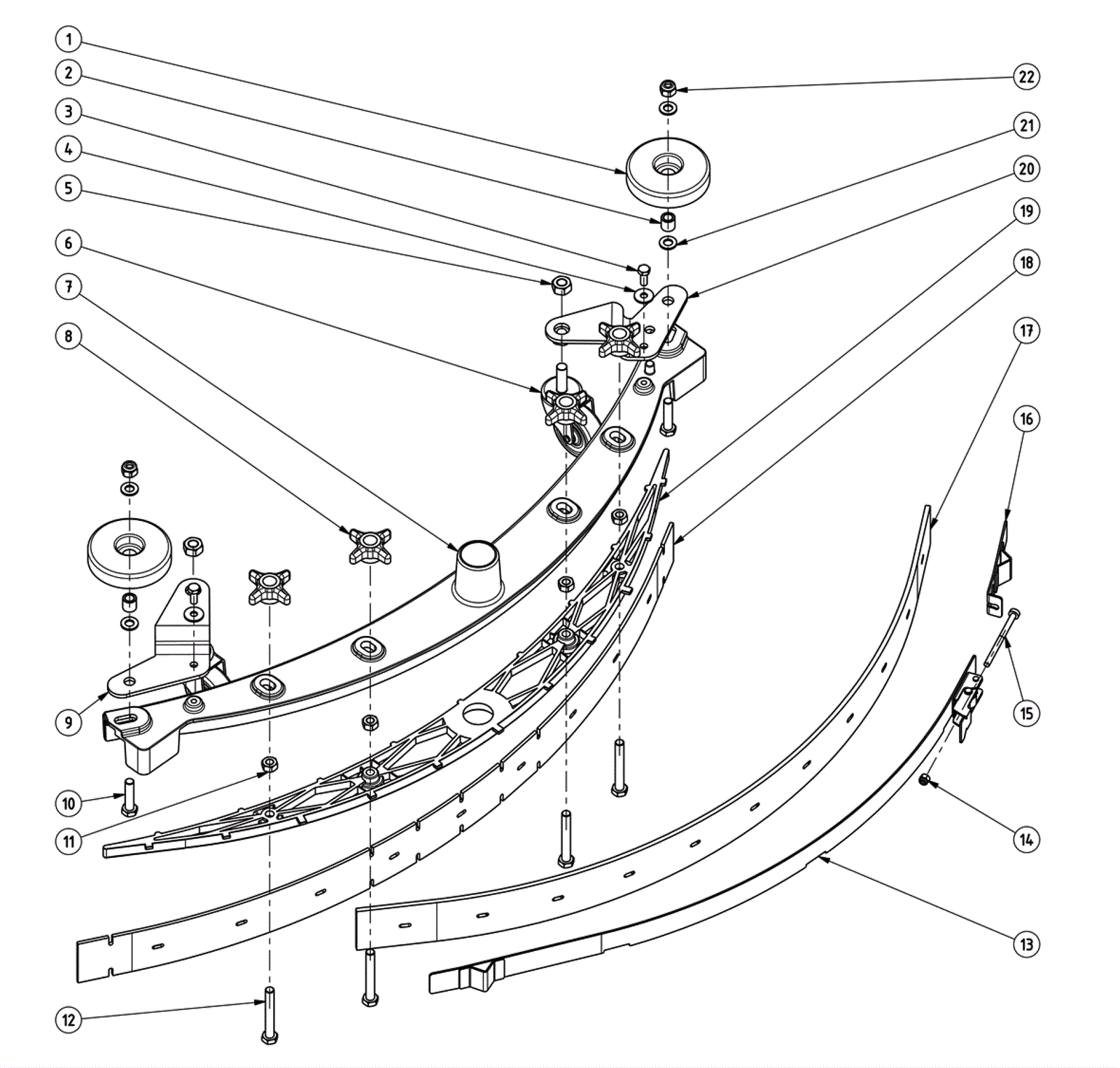

i20B Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0216 Bumper wheel $5.10 2 ships same day
2 278-0033 Spacer $8.91 2 ships same day
3 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
4 999-1803 Washer M6 flat fender stainless steel $0.99 2 ships same day
6 278-0288 2 inch caster wheel $26.44 2 ships same day
7 278-0289 Squeegee housing $153.43 1 usually ships 9-14 days
8 278-0045 Knob $5.10 4 usually ships 9-14 days
9 278-0287 Right hand bracket $22.81 1 usually ships 9-14 days
10 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
11 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 ships same day
12 999-1368 Screw M8-1.25 x 60mm hex head stainless steel $3.41 4 ships same day
14 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
15 278-0888 Screw M5 x 70mm $3.65 1 usually ships 9-14 days
16 278-0292 Short clamp assembly $10.25 1 usually ships 9-14 days
17a 278-0010 Squeegee blade rear linatex $60.65 1 ships same day
17b 278-0013 Squeegee blade rear polyurethane $73.37 1 ships same day
18a 278-0011 Squeegee blade front linatex $44.55 1 ships same day
18b 278-0012 Squeegee blade front polyurethane $57.40 1 usually ships 9-14 days
19 278-0291 Squeegee retainer kit $98.19 1 usually ships 9-14 days
20 278-0294 Left hand bracket $22.81 1 usually ships 9-14 days
21 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
22 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
