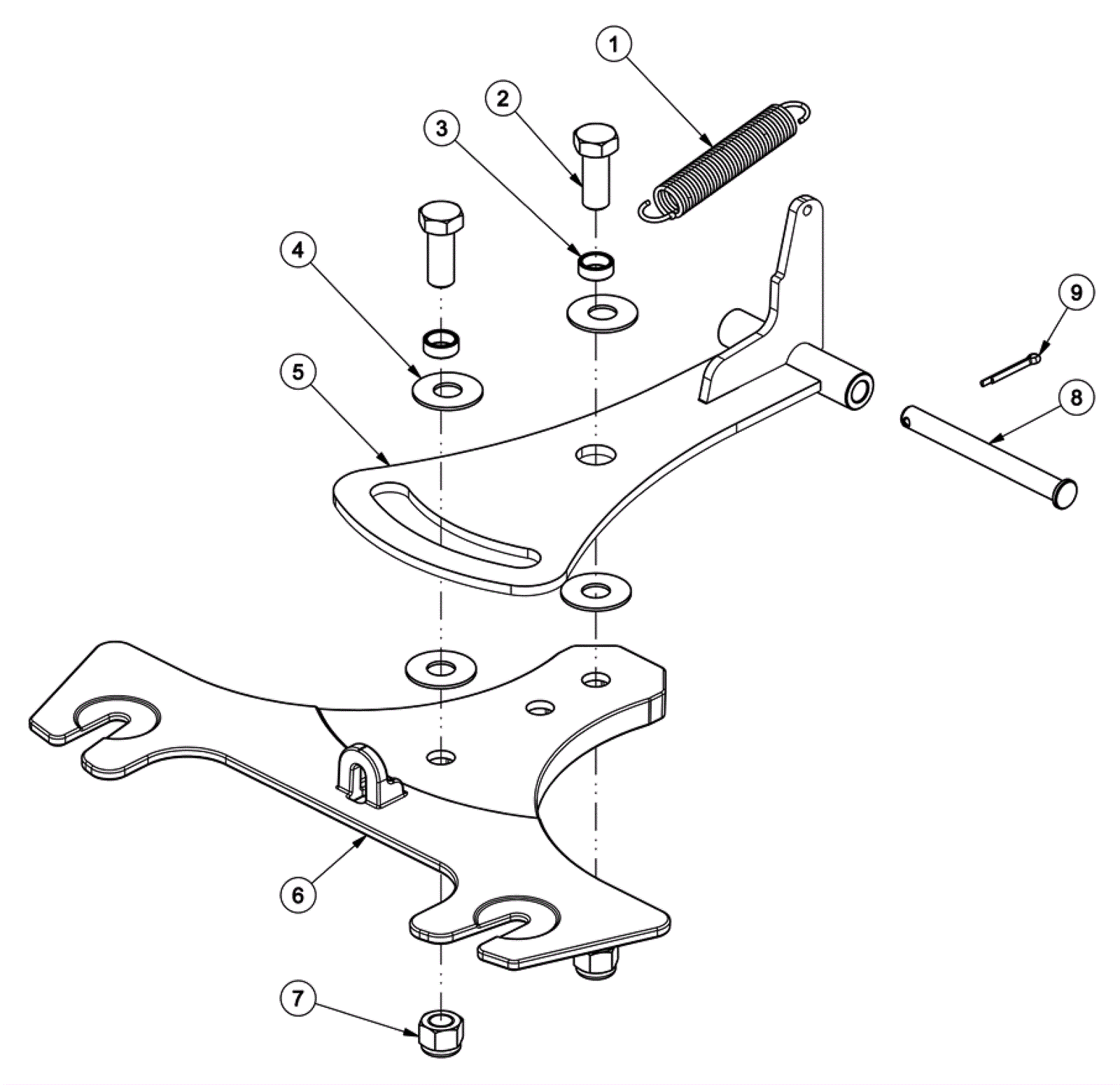

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
278-0161
|
Spring |
1 |
|
|
2 |
278-0165
|
Bolt M12 x 30mm |
2 |
|
|
3 |
278-0163
|
Sleeve |
2 |
|
|
4 |
278-0119
|
Washer |
4 |
|
|
5 |
278-0886
|
Squeegee bracket |
1 |
|
|
6 |
278-0169
|
Squeegee mounting bracket |
1 |
|
|
7 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
|
8 |
278-0167
|
Pin |
1 |
|
|
9 |
278-0166
|
Cotter |
1 |
|
|
