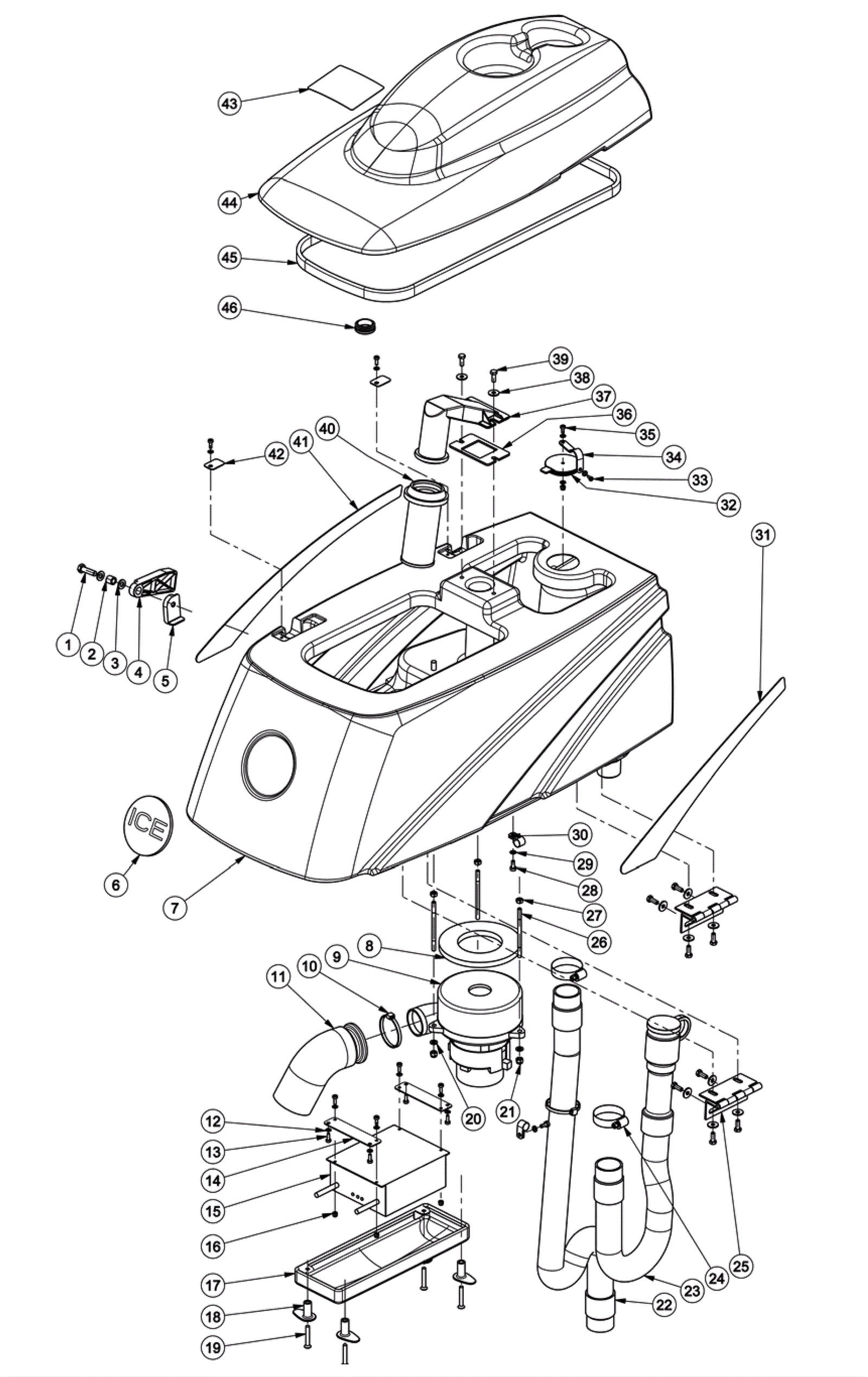

I20b Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 1 ships same day
2 278-0033 Spacer $8.91 1 ships same day
3 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
4 278-0032 Recovery tank support $3.65 1 usually ships 9-14 days
5 278-0030 Bracket $3.65 1 usually ships 9-14 days
6 278-0029 ICE decal $7.30 1 usually ships 9-14 days
7 278-0840 Recovery tank $306.83 1 usually ships 9-14 days
8 278-0036 Vacuum motor gasket $7.30 1 usually ships 9-14 days
10 278-0043 Nylon tie $3.65 2 usually ships 9-14 days
11 278-0042 Vacuum motor muffler $10.25 1 ships same day
12 999-9089 Washer M4 flat stainless steel $0.99 13 ships same day
13 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 10 ships same day
14 278-0842 Charger fixer (OBSOLETE) $12.52 2 usually ships 9-14 days
15 278-0319 Onboard charger kit $1,150.84 1 usually ships 9-14 days
16 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 5 ships same day
17 278-0844 Cable string bag $18.41 1 usually ships 9-14 days
18 278-0122 Power cord hook $3.65 4 usually ships 9-14 days
19 278-0121 Screw $3.65 4 usually ships 9-14 days
20 999-1261 Washer M6 flat stainless steel $0.99 3 ships same day
21 278-0846 Nut M6 self locking $3.65 3 usually ships 9-14 days
22 278-0300 4 1/2 foot vacuum hose $55.99 1 ships same day
23 278-0024 Drain hose $61.38 1 ships same day
24 278-0025 Hose clamp $3.65 2 ships same day
25 278-0026 Hinge assembly $31.44 2 usually ships 9-14 days
26 278-0038 Stud $3.65 3 ships same day
27 999-1308 Nut M6-1 hex stainless steel $0.99 3 ships same day
28 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 2 ships same day
29 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
30 278-0093 P clamp $3.65 2 usually ships 9-14 days
31 278-0848 Decal $18.41 1 usually ships 9-14 days
32 278-0022 Cap $7.30 1 usually ships 9-14 days
33 278-0076 Screw $3.65 1 usually ships 9-14 days
34 278-0084 Strap $3.65 1 usually ships 9-14 days
36 278-0020 Gasket $3.65 1 usually ships 9-14 days
37 278-0019 Float adapter $13.16 1 usually ships 9-14 days
38 999-1803 Washer M6 flat fender stainless steel $0.99 10 ships same day
39 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 10 ships same day
41 278-0850 Decal $18.41 1 usually ships 9-14 days
42 278-0851 Plate $3.65 2 usually ships 9-14 days
43 278-0015 Warning decal $7.30 1 usually ships 9-14 days
44 278-0852 Cover tank $276.14 1 usually ships 9-14 days
45 278-0853 Sealing strip $24.55 1 usually ships 9-14 days
46 278-0652 Cap $3.65 1 usually ships 9-14 days
