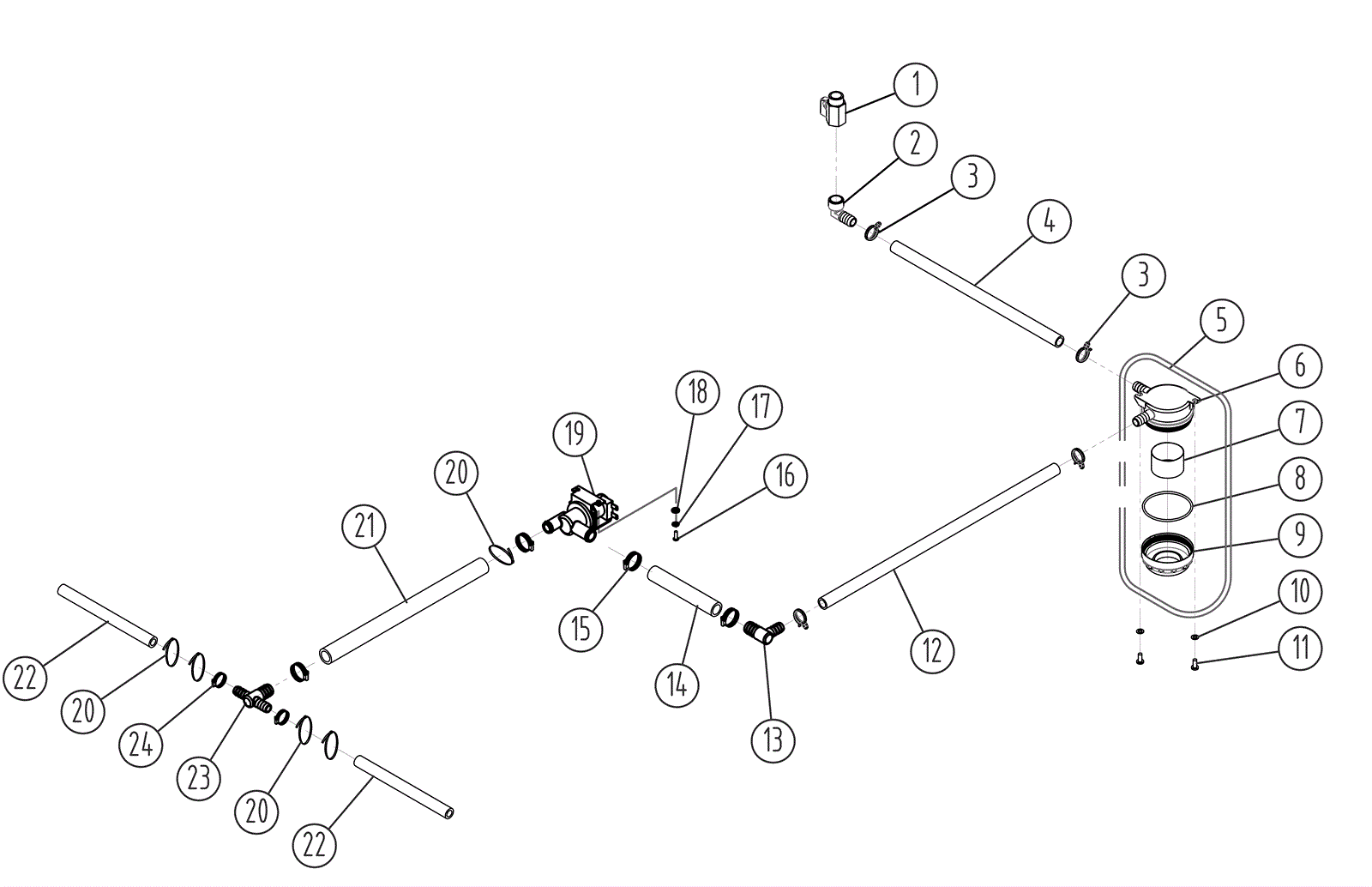

I36BT Solution Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0069 Ball valve $24.55 1 usually ships 9-14 days
2 278-0070 Elbow $8.36 1 usually ships 9-14 days
3 278-0303 Clamp $3.65 4 usually ships 9-14 days
4 278-0744 Hose $7.30 1 usually ships 9-14 days
5 278-0307 Filter assembly $32.01 1 ships same day
6 278-0308 Filter assembly base $7.30 1 usually ships 9-14 days
7 278-0310 40 mesh filter screen assembly $7.30 1 usually ships 9-14 days
8 278-0311 O-ring $3.65 1 ships same day
9 278-0312 Filter assembly cap $12.65 1 ships same day
10 999-9100 Washer M5 flat stainless steel $5.83 1 ships same day
11 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 2 ships same day
12 278-0747 Hose $10.25 1 usually ships 9-14 days
13 278-0748 Barbed elbow $3.65 1 usually ships 9-14 days
14 278-0749 Hose $3.65 1 usually ships 9-14 days
15 278-0066 Clamp $3.65 4 ships same day
16 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 2 ships same day
17 999-9132 Washer M5 split lock stainless steel $0.99 2 ships same day
18 278-0751 Washer $3.65 2 usually ships 9-14 days
19 278-0640 36V solenoid valve $447.70 1 usually ships 9-14 days
20 278-0043 Nylon tie $3.65 5 usually ships 9-14 days
21 278-0640 36V solenoid valve $447.70 1 usually ships 9-14 days
22 278-0513 7 inch tube $3.65 2 ships same day
23 278-0753 Plastic tee fitting $3.65 1 usually ships 9-14 days
24 278-0244 Clamp $3.65 2 usually ships 9-14 days
