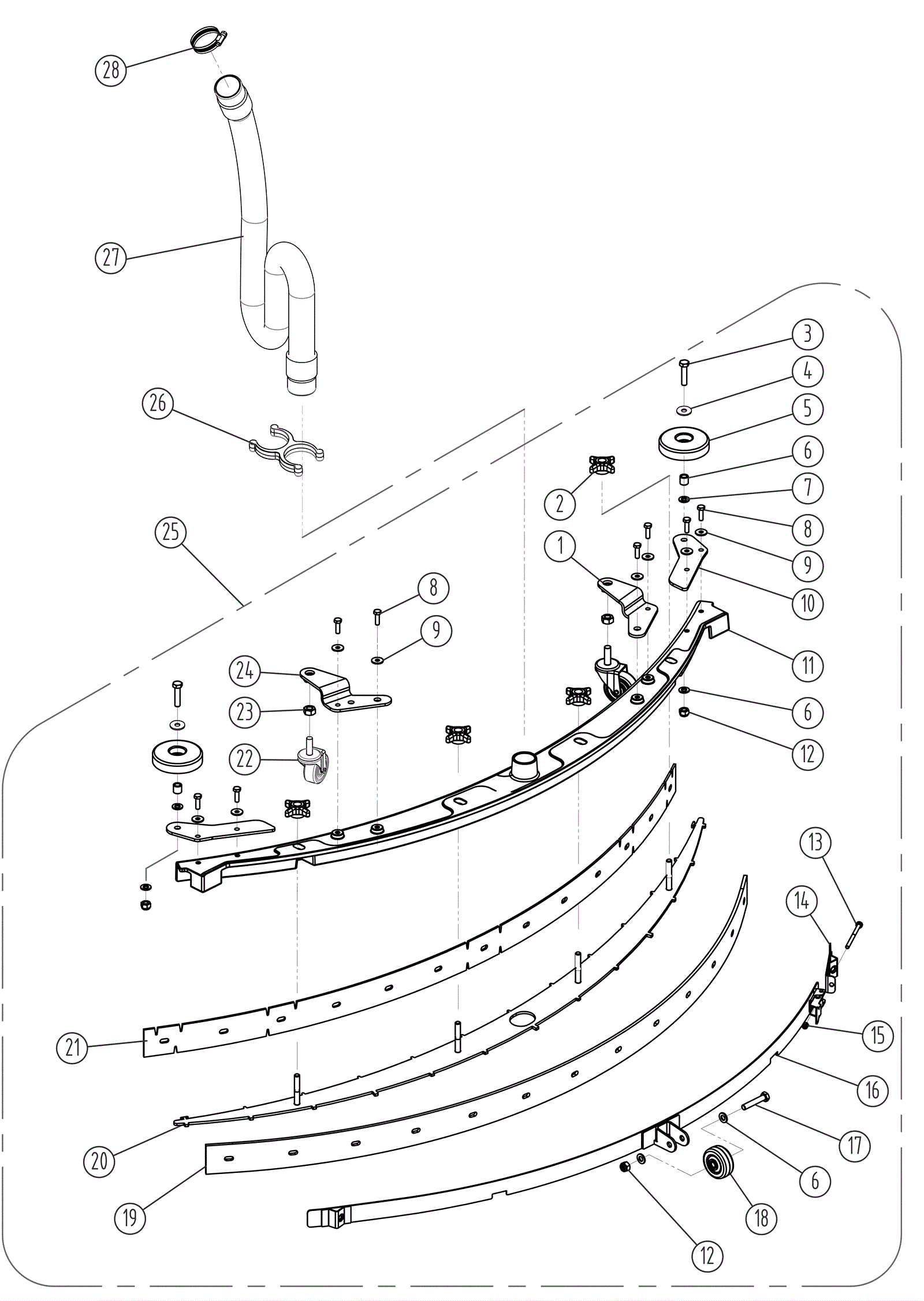

I36BT Squeegee Assembly - 46.5 inch

#PartDescriptionPriceReqNotesAvailability
1 278-0287 Right hand bracket $16.53 1 usually ships 9-14 days
2 278-0426 Knob $9.68 4 ships same day
3 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
5 278-0216 Bumper wheel $4.44 2 ships same day
6 278-0033 Spacer $7.74 2 ships same day
7 999-9097 Washer M8 flat stainless steel $0.99 6 ships same day
8 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 8 ships same day
9 999-1803 Washer M6 flat fender stainless steel $0.99 8 ships same day
10 278-0734 Roller mounting bracket $8.91 2 usually ships 9-14 days
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
13 999-9160 Screw M5-.8 x 75mm pan head $7.68 1 ships same day
14 278-0495 Short clamp assembly $16.02 1 ships same day
15 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
16 278-0735 Squeegee clamp assembly $36.39 1 usually ships 9-14 days
17 278-0219 Screw M8 $3.17 1 usually ships 9-14 days
18 278-0736 2 inch wheel $3.17 1 usually ships 9-14 days
19 278-0737 Squeegee blade linatex rear $74.98 1 ships same day
20 278-0738 Retainer $151.21 1 usually ships 9-14 days
21 278-0739 Squeegee blade linatex front $46.50 1 usually ships 9-14 days
22 278-0288 2 inch caster wheel $22.99 2 ships same day
23 999-6697 Nut M10-1.5 hex stainless steel $1.01 2 ships same day
24 278-0294 Left hand bracket $16.53 1 usually ships 9-14 days
25 278-0740 Squeegee assembly (new style) $773.74 1 usually ships 9-14 days
26 278-0299 Vacuum hose holder $4.44 1 usually ships 9-14 days
27 278-0300 4 1/2 foot vacuum hose $48.69 1 ships same day
28 278-0025 Hose clamp $3.17 1 ships same day
