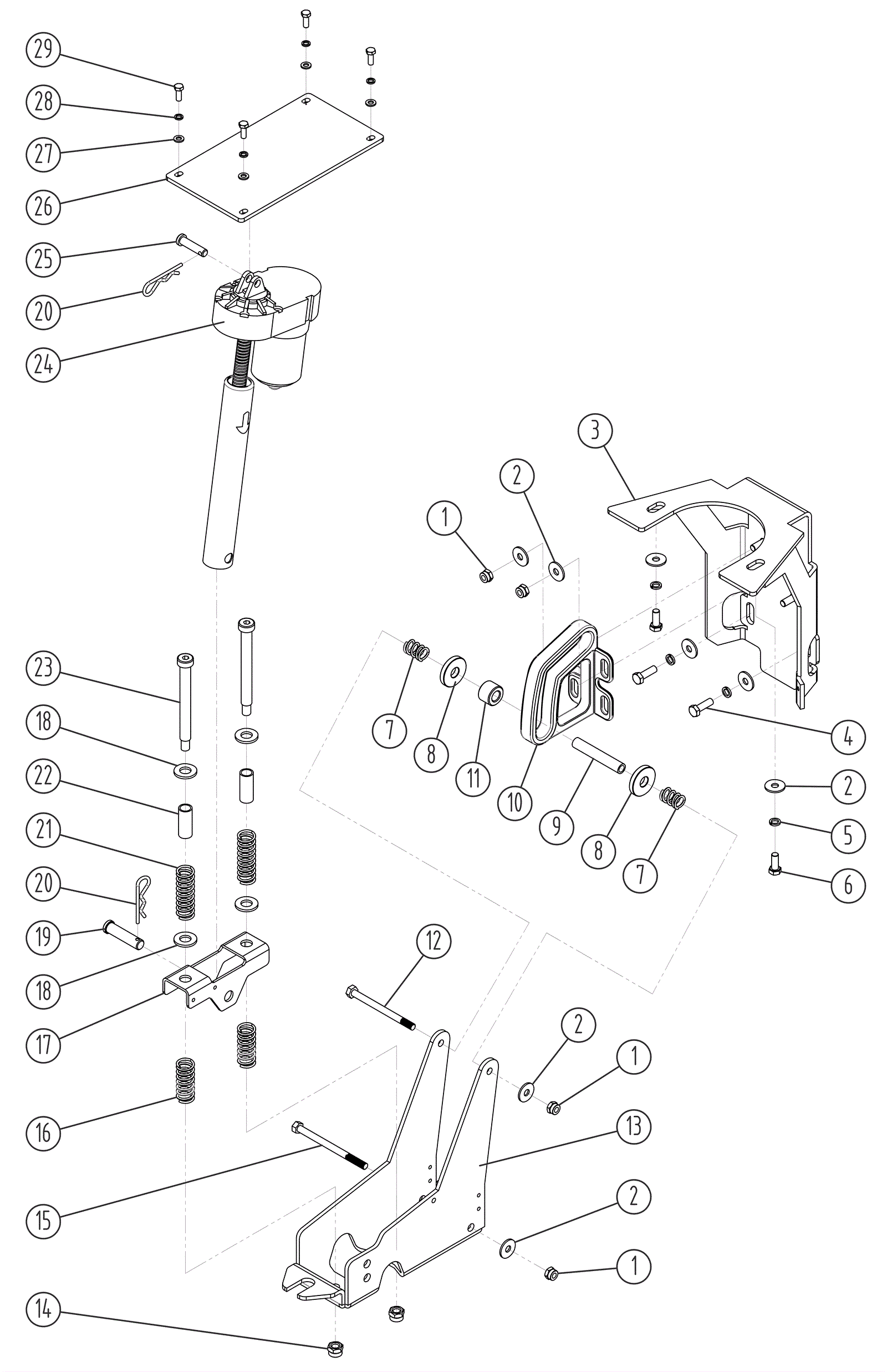

I36BT Scrub head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 6 ships same day
3 278-0717 Guide mounting bracket $98.19 1 usually ships 9-14 days
4 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
5 999-0674 Washer M8 split lock plain finish $0.99 4 ships same day
6 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
7 278-0718 Spring $3.65 2 usually ships 9-14 days
8 278-0719 Washer $9.46 2 usually ships 9-14 days
9 278-0720 Shaft $7.30 1 usually ships 9-14 days
10 278-0721 Roller guide $245.45 1 usually ships 9-14 days
11 278-0722 Roller $7.30 1 usually ships 9-14 days
12 999-9159 Bolt M8-1.0 x 100mm hex cap $2.68 1 ships same day
13 278-0723 Scrub lift bracket $150.57 1 usually ships 9-14 days
14 278-0724 Nut 3/8 lock $3.65 2 usually ships 9-14 days
15 999-9159 Bolt M8-1.0 x 100mm hex cap $2.68 1 ships same day
16 278-0725 Spring $3.65 2 usually ships 9-14 days
17 278-0726 Spring bracket $18.41 1 usually ships 9-14 days
18 278-0119 Washer $3.65 4 usually ships 9-14 days
19 278-0727 Pin $7.30 1 usually ships 9-14 days
20 278-0727 Pin $7.30 2 usually ships 9-14 days
21 278-0729 Spring $3.65 2 usually ships 9-14 days
22 278-0730 Spring $3.65 2 usually ships 9-14 days
23 278-0718 Spring $3.65 2 usually ships 9-14 days
24 278-0731 Bolt 3/8 shoulder $18.41 1 usually ships 9-14 days
25 278-0448 Pin $7.30 1 usually ships 9-14 days
26 278-0733 Actuator mounting bracket $42.97 1 usually ships 9-14 days
27 999-6714 Washer M6 x 12mm flat stainless steel $0.99 4 ships same day
28 999-1117 Washer M6 split lock stainless steel $0.99 4 ships same day
29 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
