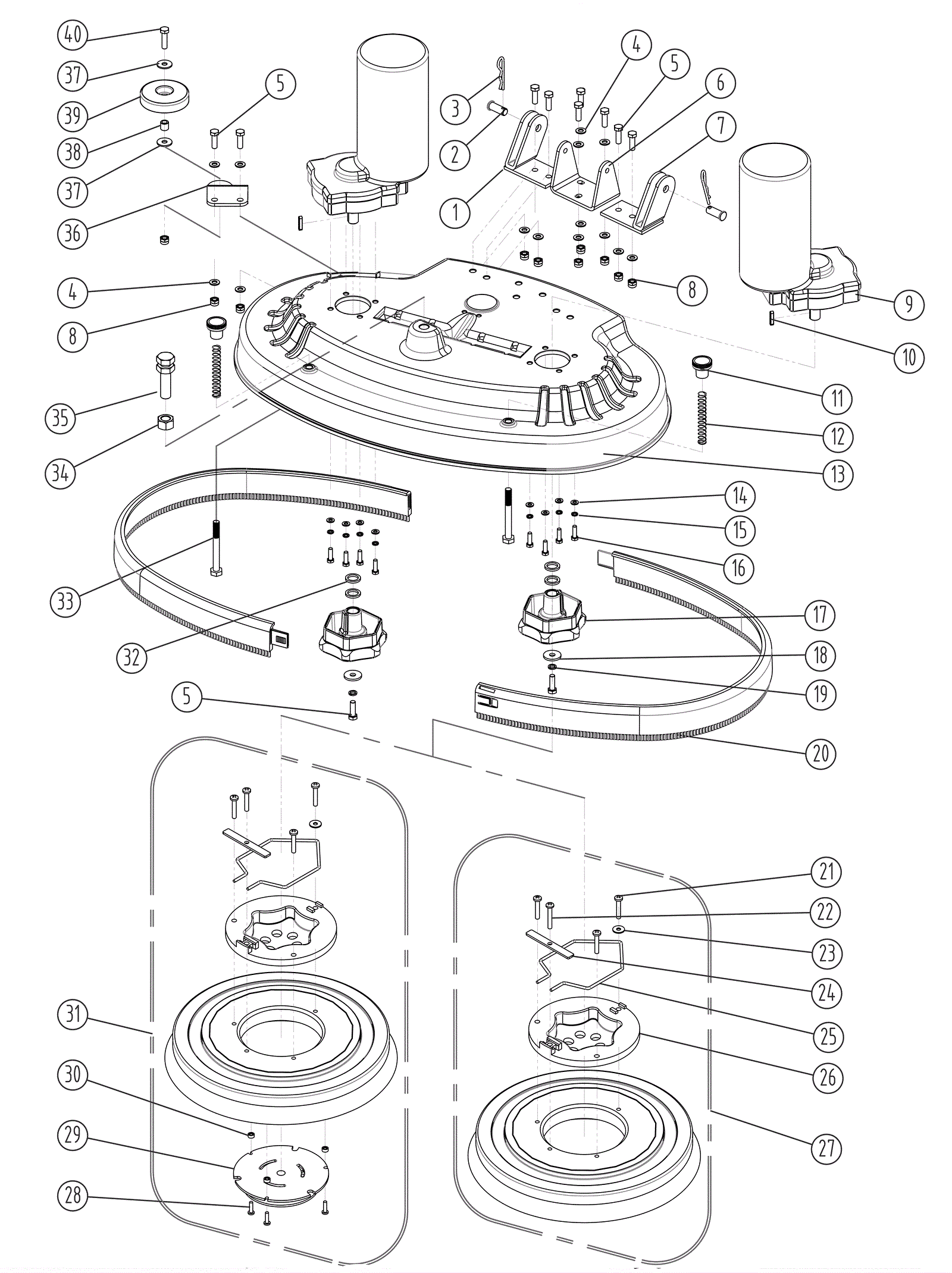

I36BT Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0540 Right hand scrub bracket $19.36 1 usually ships 9-14 days
2 278-0705 Pin $3.17 2 usually ships 9-14 days
3 278-0451 Cotter pin $3.17 2 ships same day
4 999-9097 Washer M8 flat stainless steel $0.99 14 ships same day
5 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 11 ships same day
6 278-0706 Actuator mounting bracket $21.34 1 usually ships 9-14 days
7 278-0541 Left hand scrub bracket $19.36 1 usually ships 9-14 days
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 10 ships same day
9 278-0707 Brush motor $775.02 2 usually ships 9-14 days
10 278-0249 Square keyway $3.17 2 ships same day
11 278-0708 Knob $6.36 2 usually ships 9-14 days
12 278-0709 Spring $3.17 2 usually ships 9-14 days
13 278-0710 Scrub head housing $606.38 1 usually ships 9-14 days
14 999-6714 Washer M6 x 12mm flat stainless steel $0.99 8 ships same day
15 999-1117 Washer M6 split lock stainless steel $0.99 8 ships same day
16 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 8 ships same day
17 278-0473 Brush drive hub $234.78 2 ships same day
18 999-6695 Washer M8 fender stainless steel $0.99 2 ships same day
19 999-0674 Washer M8 split lock plain finish $0.99 2 ships same day
20 278-0641 32 inch scrub head bumper (pkg of 2) $160.08 1 ships same day
21 278-0711 Screw M6 x 35mm $3.17 12 usually ships 9-14 days
22 278-0712 Screw M6 x 40mm $3.17 4 usually ships 9-14 days
23 999-1803 Washer M6 flat fender stainless steel $0.99 4 ships same day
26 278-0474 Clutch plate $117.39 4 ships same day
27 278-0476 16 inch brush $242.00 2 usually ships 9-14 days
28 278-0203 Screw $3.17 6 usually ships 9-14 days
29 278-0202 Center lok $37.77 2 ships same day
30 278-0204 Spacer $3.17 6 usually ships 9-14 days
31 278-0478 15 inch pad holder $201.71 2 ships same day
32 278-0472 Spacer $6.36 4 ships same day
33 278-0713 Bolt M10 x 90mm hex $6.36 2 usually ships 9-14 days
34 278-0714 Nut M16 hex $3.17 1 usually ships 9-14 days
35 278-0715 Adjustment stud M16 $8.91 1 usually ships 9-14 days
36 278-0716 Roller mounting bracket $16.02 1 usually ships 9-14 days
38 278-0033 Spacer $7.74 1 ships same day
39 278-0216 Bumper wheel $4.44 1 ships same day
40 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 1 ships same day
