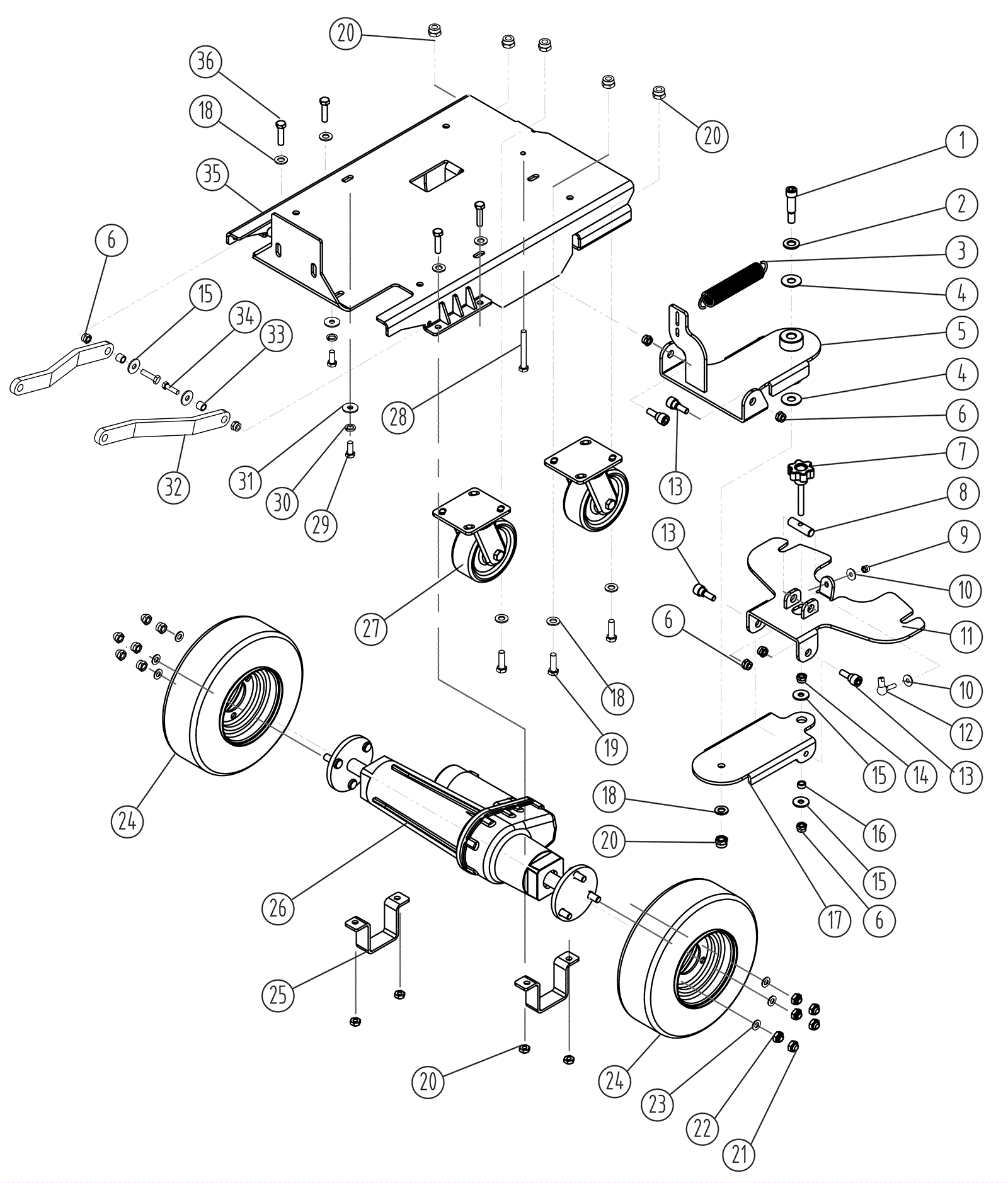

I36BT Frame and Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0686 Shoulder bolt $8.91 1 usually ships 9-14 days
2 278-0119 Washer $2.64 1 usually ships 9-14 days
3 278-0687 Spring $8.91 1 usually ships 9-14 days
4 278-0164 Thrust washer $4.20 2 usually ships 9-14 days
5 278-0688 Squeegee lift bracket $76.23 1 usually ships 9-14 days
6 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 7 ships same day
7 278-0689 Knob $6.36 1 usually ships 9-14 days
8 278-0704 Pin $6.36 1 usually ships 9-14 days
9 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 5 ships same day
10 999-1803 Washer M6 flat fender stainless steel $0.99 2 ships same day
11 278-0690 Squeegee mount bracket $81.31 1 usually ships 9-14 days
13 278-0692 Shoulder bolt $6.36 4 usually ships 9-14 days
14 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
16 278-0693 Bushing $3.17 14 usually ships 9-14 days
17 278-0694 Swing bracket $37.36 1 usually ships 9-14 days
18 999-9099 Washer M10 flat stainless steel $0.99 13 ships same day
19 278-0695 Bolt M10 x 30mm $3.17 8 usually ships 9-14 days
20 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 13 ships same day
24a 278-0696 12 inch wheel (foam fill) $234.78 2 usually ships 9-14 days
24b 278-0697 12 inch wheel (gray) (air filled) $133.41 2 (serial number 000103-000137) usually ships 9-14 days
26a 278-0698 Transaxle kit $2,604.56 1 usually ships 9-14 days
26b 278-0699 Electronic brake kit $279.51 1 usually ships 9-14 days
27 278-0700 5 inch caster $66.70 2 usually ships 9-14 days
29 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 5 ships same day
30 999-0674 Washer M8 split lock plain finish $0.99 5 ships same day
31 999-6695 Washer M8 fender stainless steel $0.99 5 ships same day
32 278-0701 Scrub head lifting arm $21.34 2 usually ships 9-14 days
33 278-0702 Bushing $3.17 2 usually ships 9-14 days
34 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 5 ships same day
35 278-0539 Frame $480.26 1 usually ships 9-14 days
36 278-0703 Screw $3.17 4 usually ships 9-14 days
