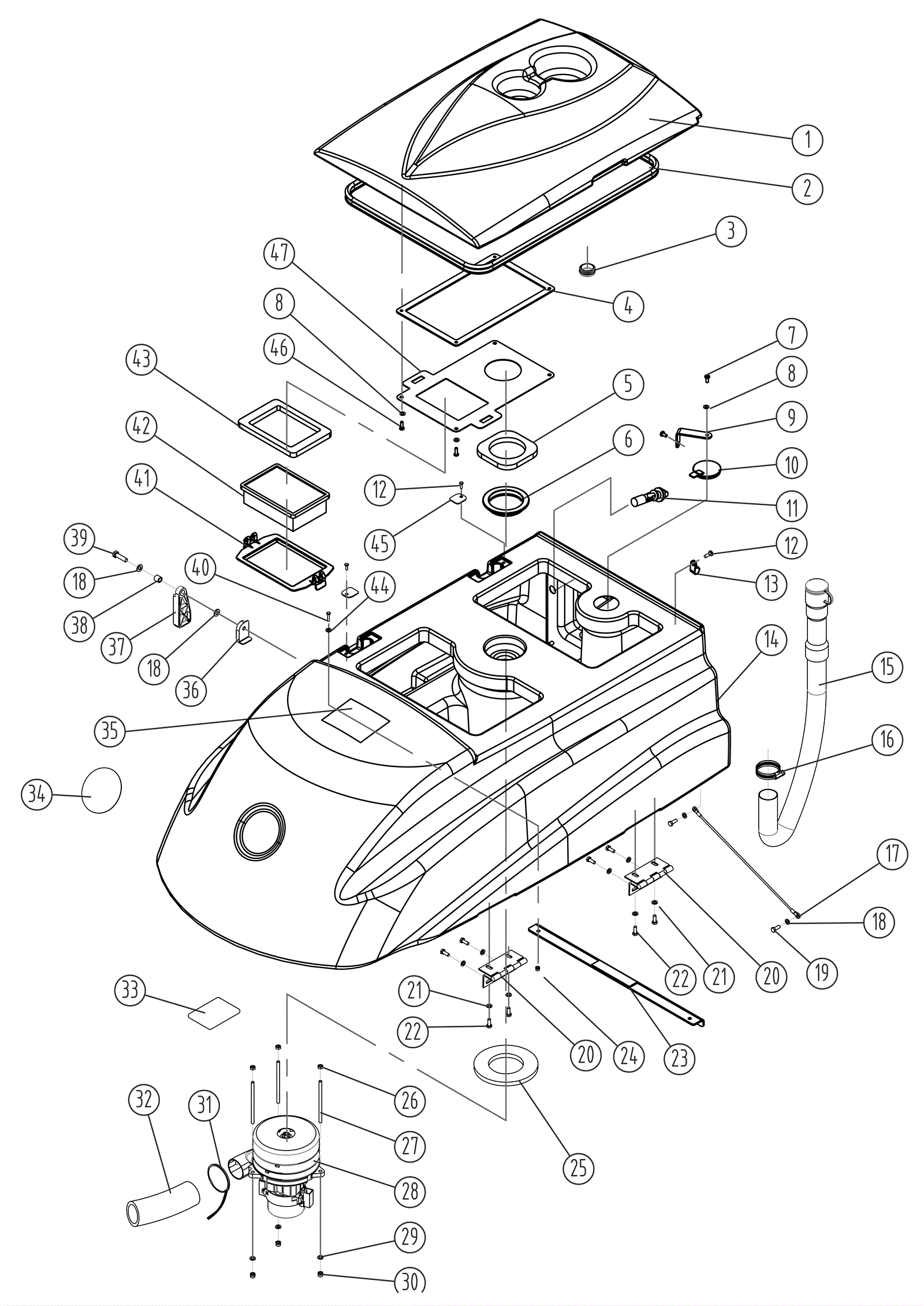

I36BT Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0650 Recovery tank cover $133.41 1 usually ships 9-14 days
2 278-0651 Seal $13.33 1 usually ships 9-14 days
3 278-0652 Cap $3.17 1 usually ships 9-14 days
4 278-0653 Gasket $8.91 1 usually ships 9-14 days
5 278-0654 Screen gasket $3.17 1 usually ships 9-14 days
6 278-0655 Screen $8.91 1 usually ships 9-14 days
7 278-0085 Screw $3.17 2 usually ships 9-14 days
8 999-9100 Washer M5 flat stainless steel $5.83 9 ships same day
9 278-0084 Strap $3.17 1 usually ships 9-14 days
10 278-0022 Cap $5.30 1 usually ships 9-14 days
11 278-0570 Solution level sensor kit $37.36 1 ships same day
12 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 3 ships same day
13 278-0093 P clamp $3.17 1 usually ships 9-14 days
14 278-0656 Recovery tank $606.39 1 usually ships 9-14 days
15 278-0024 Drain hose $53.37 1 ships same day
16 278-0025 Hose clamp $3.17 1 ships same day
18 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
19 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
20 278-0026 Hinge assembly $27.35 2 usually ships 9-14 days
21 999-1803 Washer M6 flat fender stainless steel $0.99 8 ships same day
22 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 8 ships same day
23 278-0658 Support bracket kit $43.01 1 usually ships 9-14 days
24 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
25 278-0036 Vacuum motor gasket $6.36 1 usually ships 9-14 days
26 278-0037 Upholstery tool assembly $173.25 3 usually ships 9-14 days
27 278-0664 Stud M6 x 110mm $3.17 3 usually ships 9-14 days
28 278-0659 3 stage vacuum motor $533.61 1 ships same day
29 999-6714 Washer M6 x 12mm flat stainless steel $0.99 5 ships same day
30 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 3 ships same day
31 278-0043 Nylon tie $3.17 1 usually ships 9-14 days
32 278-0042 Vacuum motor muffler $8.91 1 ships same day
33 278-0660 Battery label $6.36 1 usually ships 9-14 days
34 278-0029 ICE decal $6.36 1 usually ships 9-14 days
35 278-0015 Warning decal $6.36 1 usually ships 9-14 days
36 278-0030 Bracket $3.17 1 usually ships 9-14 days
37 278-0032 Recovery tank support $3.17 1 usually ships 9-14 days
38 278-0033 Spacer $7.74 1 ships same day
39 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 1 ships same day
40 999-1671 Screw M5-.8 x 20mm pan head phillips stainless steel $0.99 2 ships same day
41 278-0662 Bracket filter $3.17 1 usually ships 9-14 days
42 278-0005 Dust filter $12.72 1 ships same day
43 278-0378 Dust filter gasket $7.85 1 ships same day
44 278-0665 Washer $3.17 2 usually ships 9-14 days
45 278-0034 Plate $3.17 2 ships same day
46 999-1601 Screw M5 x 10 flat head stainless steel $0.99 6 ships same day
47 278-0663 Plate $37.36 1 usually ships 9-14 days
