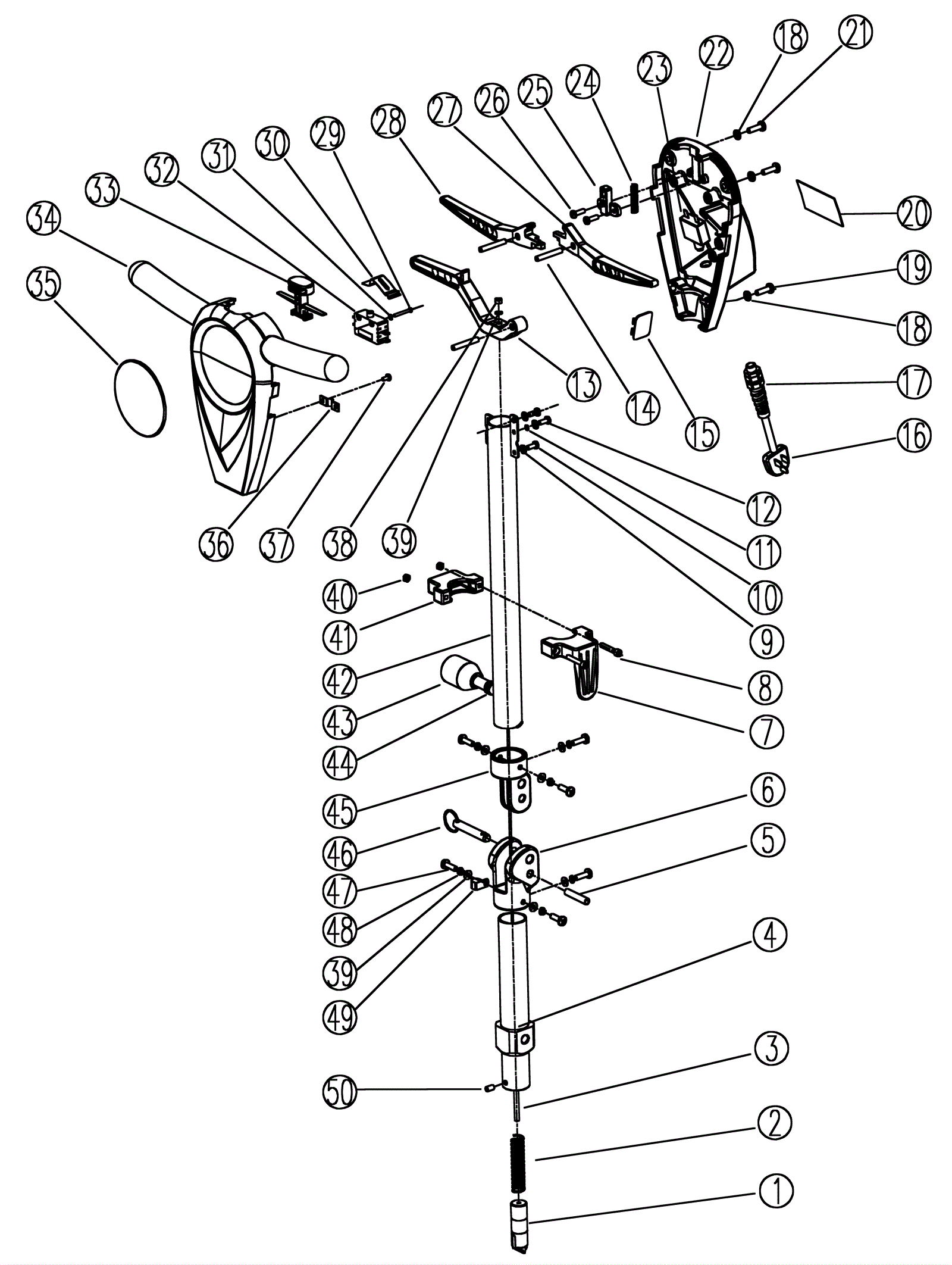

IB2000 Handle Assembly

#PartDescription ReqNotesAvailability
1 278-1183 Insert 1 usually ships 7-9 days
2 278-1184 Leveling spring 1 usually ships 7-9 days
3 278-1181 Leveling rod 1 usually ships 7-9 days
4 278-1875 Bottom tubing bracket 1 usually ships 7-9 days
5 278-1182 Pin 1 usually ships 7-9 days
6 278-1911 Handle base 1 usually ships 7-9 days
7 278-1876 Cord wrap 1 usually ships 7-9 days
8 999-1670 Screw M5-8 x 40mm hex head 2 usually ships 1-5 days
9 278-1055 Tooth washer 5 4 usually ships 7-9 days
10 278-1056 Screw M5 x 12mm 4 usually ships 7-9 days
11 278-1058 Tooth washer 4 2 usually ships 7-9 days
12 999-1645 Screw M4-.7 x 12mm hex head stainless steel 1 usually ships 11-14 days
13 278-1877 Leveling rod 1 usually ships 7-9 days
14 278-1059 Pin 3 usually ships 7-9 days
15 278-1907 Cover 1 usually ships 7-9 days
16 278-0983 50 foot power cord (yellow) 1 usually ships 7-9 days
17 278-1057 Strain relief cord 1 usually ships 7-9 days
18 999-0876 Washer M6 split lock plain finish 4 usually ships 11-14 days
19 278-1064 Screw M6 x 35mm 2 usually ships 7-9 days
20 278-2000 Serial number 1 usually ships 7-9 days
21 278-1065 Screw M6 x 25mm 2 usually ships 7-9 days
22 278-1062 Rear cover 1 usually ships 7-9 days
23 278-2198 20amp circuit breaker 1 usually ships 7-9 days
24 278-1074 Safety spring 1 usually ships 7-9 days
25 278-1068 Ball base 1 usually ships 7-9 days
26 278-1069 Screw M4 x 8mm 2 usually ships 7-9 days
27 278-1070 Right hand trigger switch 1 usually ships 7-9 days
28 278-1060 Left trigger switch 1 usually ships 7-9 days
29 278-0090 Screw M3 x 25mm 2 usually ships 7-9 days
30 278-1071 Safety spring 1 usually ships 7-9 days
31 278-0089 Washer M3 tooth 2 usually ships 7-9 days
32 278-2192 Switch 1 usually ships 7-9 days
33 278-1073 Safety bottom 1 usually ships 7-9 days
34 278-1075 Front cover 1 usually ships 7-9 days
35 278-0029 ICE decal 1 usually ships 7-9 days
36 278-1076 Clamp core 1 usually ships 7-9 days
37 278-1077 Screw M4 x 6mm 2 usually ships 7-9 days
38 999-0497 Nut M6-1 nylon insert lock stainless steel 1 usually ships 11-14 days
39 999-6714 Washer M6 x 12mm flat stainless steel 6 usually ships 11-14 days
40 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 2 usually ships 11-14 days
41 278-1053 Tank clamp 1 usually ships 7-9 days
42 278-1879 Top tubing bracket 1 usually ships 7-9 days
43 278-1084 Handle cord 1 usually ships 7-9 days
44 278-1086 Grommet 1 usually ships 7-9 days
45 278-1911 Handle base 1 usually ships 7-9 days
46 278-1880 Pin 1 usually ships 7-9 days
47 278-0131 Screw 6 usually ships 7-9 days
48 999-1117 Washer M6 split lock stainless steel 6 usually ships 11-14 days
49 278-1168 Cord clamp 1 usually ships 7-9 days
50 278-0231 Screw M6 x 10mm 1 usually ships 7-9 days
