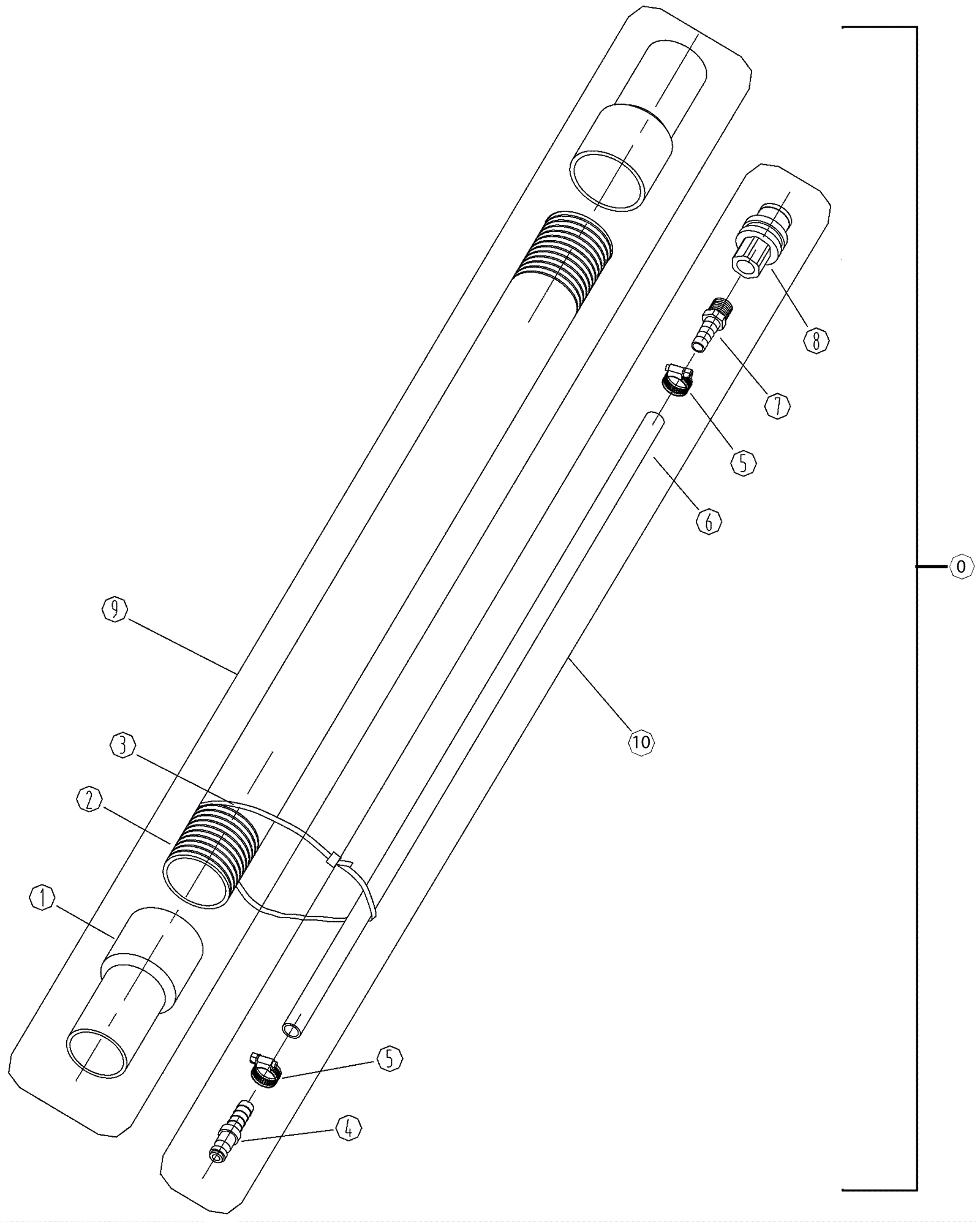

Hose Assembly

#PartDescription ReqNotesAvailability
0 278-0037 Upholstery tool assembly 1 (Includes 1-13)
1 278-1274 1 1/2 inch hose cuff 1
2 278-1275 Vacuum hose 1
3 278-0043 Nylon tie 1
4 278-1273 Male barbed hose plug 1
5 278-0244 Clamp 1
6 278-1276 Solution hose 1
7 278-1211 Hose barb 1
8 278-1207 Quick connect coupler 1
9 278-1277 Vacuum hose assembly 2 (Includes 1-3)
10 278-1278 Solution hose assembly 1 (Includes 4-8)
