| # | Part | Description |
Req | Notes | Availability |
|---|

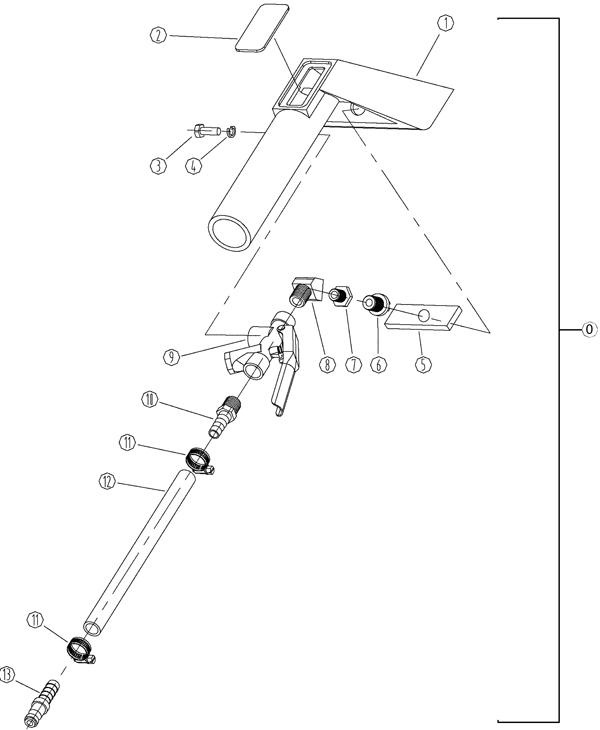

0 |
278-1263
|
Upholstery tool assembly |
|
(Includes 1-13) |
|
1 |
278-1264
|
Upholstery tool |
|
|
|
2 |
278-1265
|
Hand tool window |
|
|
|
3 |
999-1454
|
Bolt 5/16-18 x 5/8 pan head stainless steel |
|
|
|
4 |
999-9097
|
Washer M8 flat stainless steel |
|
|
|
5 |
278-1267
|
Gasket |
|
|
|
6 |
278-1268
|
Spray tip nozzle |
|
|
|
7 |
278-1269
|
Brass bushing |
|
|
|
8 |
278-1210
|
Elbow |
|
|
|
9 |
278-1271
|
Trigger valve |
|
|
|
10 |
278-1211
|
Hose barb |
|
|
|
11 |
278-0244
|
Clamp |
|
|
|
12 |
278-1272
|
3/8 inch solution hose |
|
|
|
13 |
278-1273
|
Male barbed hose plug |
|
|
|
