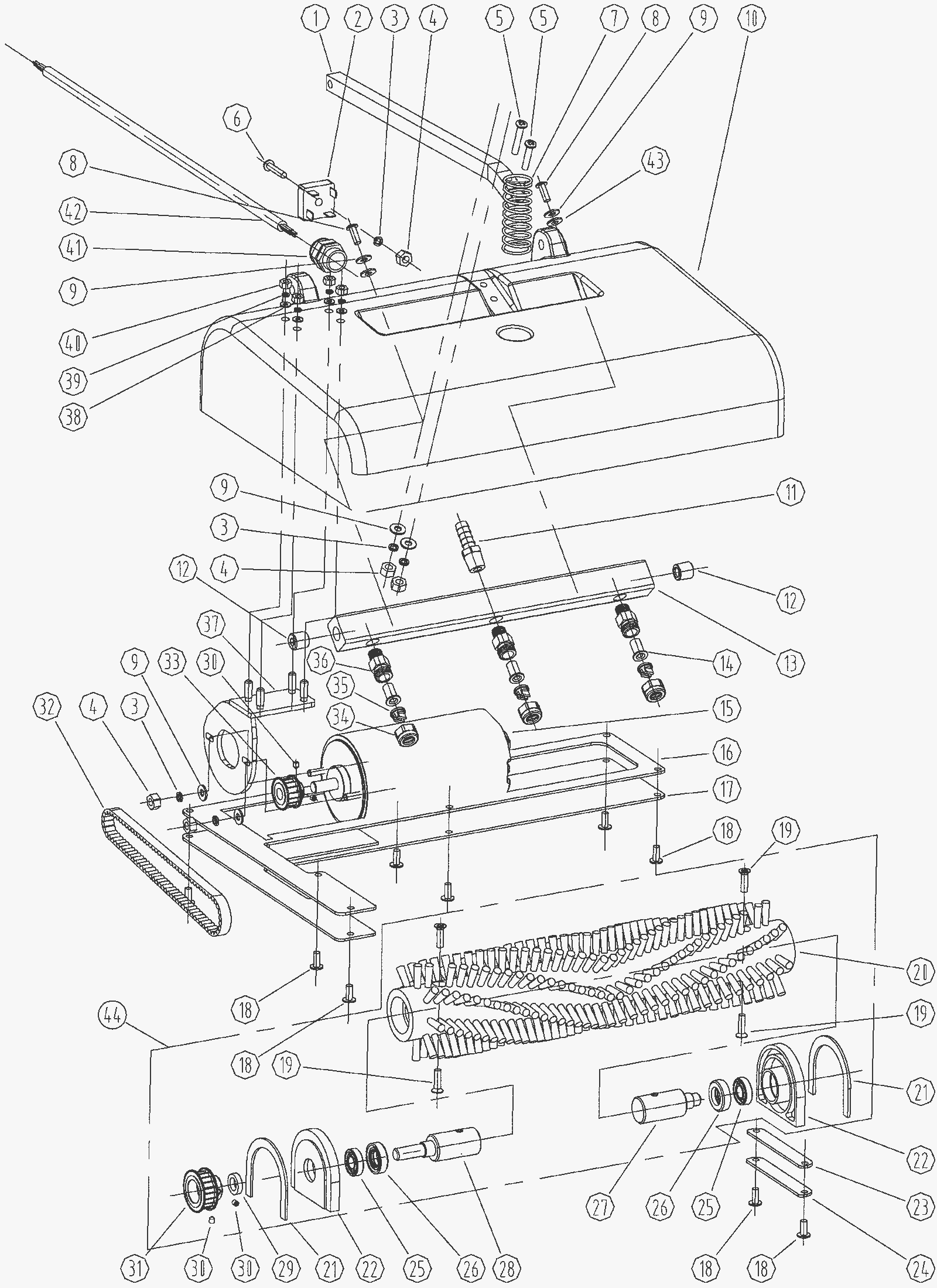

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
278-1242
|
Lift bar |
|
|
|
2 |
278-1243
|
Rectifier |
|
|
|
3 |
999-9132
|
Washer M5 split lock stainless steel |
|
|
|
4 |
999-0740
|
Nut M5-.8 hex stainless steel |
|
|
|
5 |
999-0797
|
Screw M5-.8 x 30mm pan head phillips stainless steel |
|
|
|
6 |
999-1425
|
Screw M5-.8 x 25mm pan head stainless steel |
|
|
|
7 |
278-1228
|
Spring |
|
|
|
8 |
278-1090
|
Screw M5 x 14mm |
|
|
|
9 |
278-1909
|
Washer M5x15x10 stainless steel |
|
|
|
10 |
278-1244
|
Mounting base brush |
|
|
|
11 |
278-1211
|
Hose barb |
|
|
|
12 |
278-1245
|
Insert sprayer body |
|
|
|
13 |
278-1246
|
Sprayer body |
|
|
|
14 |
278-1187
|
Strainer |
|
|
|
15 |
278-1247
|
120V brush motor |
|
|
|
16 |
278-1248
|
Gasket |
|
|
|
17 |
278-1249
|
Bottom plate |
|
|
|
18 |
999-9109
|
Screw M5-.8 x 12mm pan head phillips stainless steel |
|
|
|
19 |
278-1281
|
Screw M5 x 20 flat head SS |
|
|
|
20 |
N/A
|
Not available |
|
(only available in 44) |
|
21 |
278-0547
|
Gasket |
|
|
|
22 |
278-0546
|
Brush frame |
|
|
|
23 |
278-1252
|
Gasket |
|
|
|
24 |
278-1253
|
Plate |
|
|
|
25 |
278-0545
|
Bearing |
|
|
|
26 |
278-0544
|
Seal |
|
|
|
27 |
278-0542
|
Brush shaft |
|
|
|
28 |
278-0543
|
Pulley axle |
|
|
|
29 |
278-0548
|
Spacer |
|
|
|
30 |
278-0549
|
Screw |
|
|
|
31 |
278-0550
|
Driven pulley |
|
|
|
32 |
278-1254
|
Belt |
|
|
|
33 |
278-1255
|
Driving pulley |
|
|
|
34 |
278-1256
|
Nozzle body cap |
|
|
|
35 |
278-1257
|
Spray tip nozzle |
|
|
|
36 |
278-1258
|
Adapters |
|
|
|
37 |
278-1259
|
Motor mounting bracket |
|
|
|
38 |
278-1279
|
Washer |
|
|
|
39 |
999-1117
|
Washer M6 split lock stainless steel |
|
|
|
40 |
999-1308
|
Nut M6-1 hex stainless steel |
|
|
|
41 |
278-0921
|
Strain relief |
|
|
|
42 |
278-1260
|
Power cord |
|
|
|
43 |
278-1261
|
Gasket |
|
|
|
44 |
278-1262
|
Brush assembly |
|
(includes 19-22, 25-31) |
|
