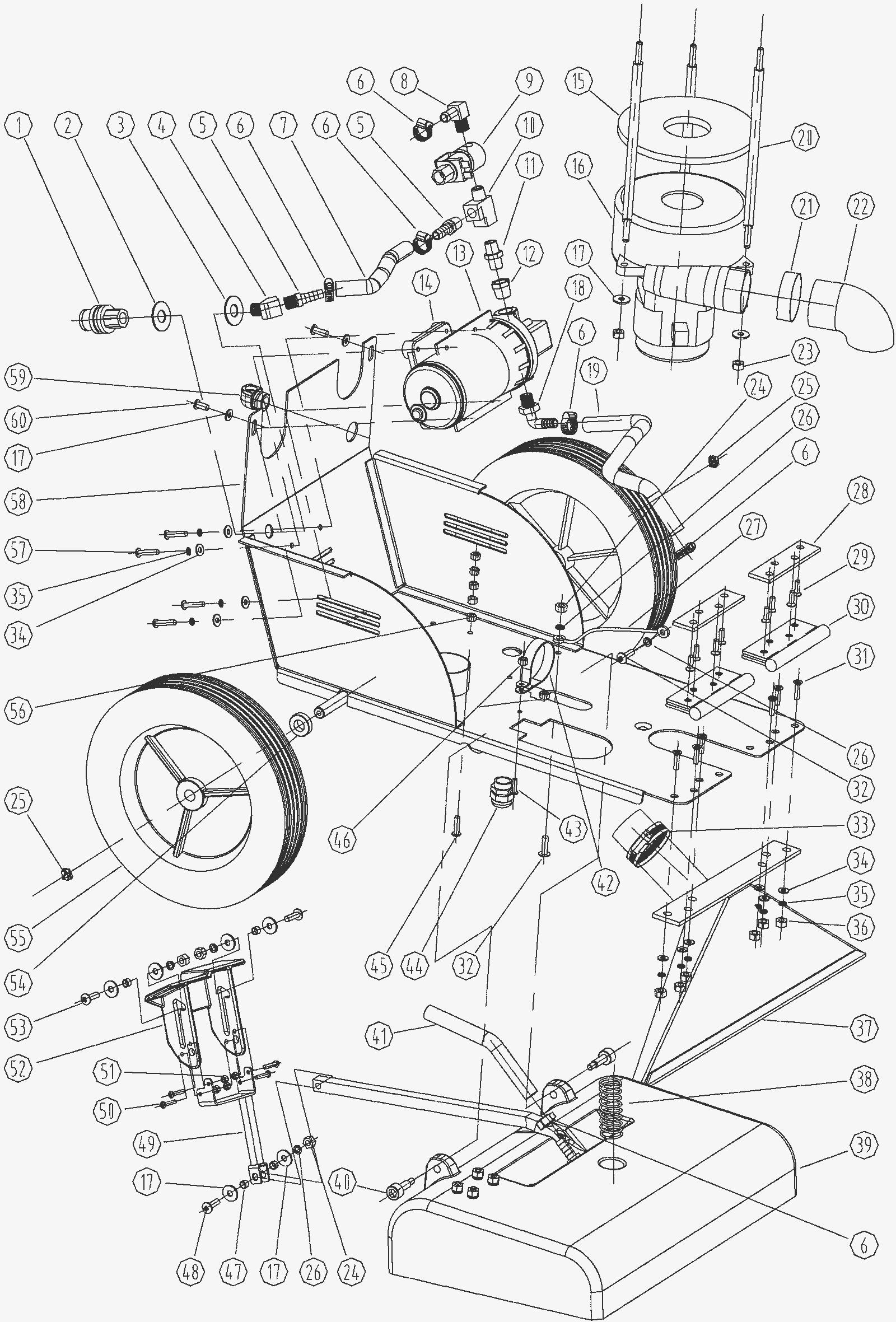

Lower Frame Assembly

#PartDescription ReqNotesAvailability
1 278-1207 Quick connect coupler
2 278-1208 Washer
3 278-1209 Washer 14 x 32 x 1.5 plain
4 278-1210 Elbow
5 278-1211 Hose barb
6 278-0244 Clamp
7 278-1212 High pressure hose
8 278-1213 Pump barb
9 278-1214 Solution solenoid (120V/60Hz)
10 278-1215 Three-way connector
11 278-1216 Connector
12 278-1217 Pump barb
13 278-1218 Pump mounting frame
14 278-1219 115V pump (100PSI)
15 278-0531 Seal
16 278-1220 Vacuum motor kit
17 278-1279 Washer
18 278-1221 Pump bend nylon
19 278-1222 Solution hose
20 278-1223 Stud
21 278-0043 Nylon tie
22 278-1224 Acoustic insulation pipe
23 999-0497 Nut M6-1 nylon insert lock stainless steel
24 999-1308 Nut M6-1 hex stainless steel
25 278-0533 Wheel clip
26 999-1117 Washer M6 split lock stainless steel
27 278-1225 Cable
28 278-1226 Spacer
29 278-0638 Screw M5-.8 x 15mm flat head countersunk stainless steel
30 278-1001 4 inch hinge stainless steel
31 278-1281 Screw M5 x 20 flat head SS
32 999-1257 Screw M6-1 x 16mm pan head Phillips
33 278-0025 Hose clamp
34 278-1909 Washer M5x15x10 stainless steel
35 999-9132 Washer M5 split lock stainless steel
36 999-0740 Nut M5-.8 hex stainless steel
37 278-1227 Carpet pick-up tool
38 278-1228 Spring
39 278-1244 Mounting base brush
40 278-1230 Shoulder screw
41 278-1231 Spraying hose
42 278-1232 Clamp
43 278-0863 Screw M4 x 16mm pan head
44 278-0921 Strain relief
45 278-1233 Screw M4 x 25mm stainless steel
46 999-0954 Nut M4-.7 nylon insert lock stainless steel
47 278-1234 Spacer
48 999-0780 Screw M6-1 x 40mm hex head
49 278-1236 Foot step bracket
50 278-0104 Screw M5 x 15mm
51 999-0953 Nut M5-.8 hex nylon insert lock stainless steel
52 278-1237 Foot step
53 999-1087 Bolt M6-1 x 25mm hex head stainless steel
54 278-0534 Washer
55 278-1241 10 inch wheel
56 278-1238 Nut M4 keps
58 278-1240 Bottom plate assembly
59 278-1174 Elbow corrugated tubing
