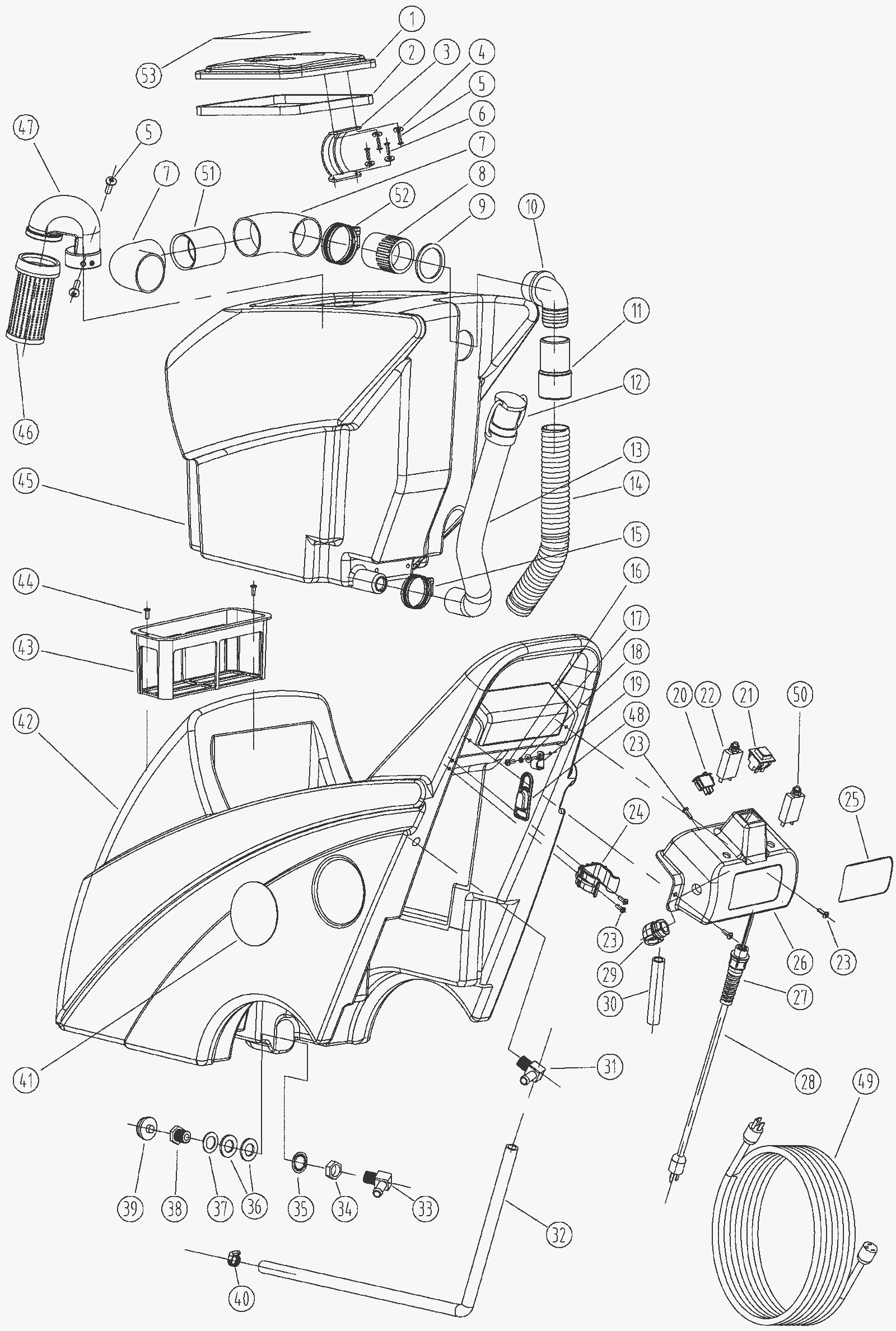

Upper Tank Assembly

#PartDescription ReqNotesAvailability
1 278-1158 Clear dome 1
2 278-0979 Clear dome gasket 1
3 278-1159 Rubber hinge 1
4 999-9089 Washer M4 flat stainless steel 4
5 278-1280 Screw 4 x 10 pan head self tapping 4
6 999-9101 Screw M4-.7 x 10mm pan head stainless steel 2
7 278-1160 Tube bend 2
8 278-1203 Coupler 1
9 278-1162 Coupler gasket 1
10 278-1163 Elbow 1
11 278-1164 Vacuum hose coupler 1
12 278-1165 Plug 1 (Before SN 000000-001234)
13a 278-1166 Drain hose 1 (Before SN 000000-001235)
13b 278-0024 Drain hose 1 (From SN 001235)
14 278-1167 Vacuum hose 1
15 278-0025 Hose clamp 1
16 999-1908 Screw M6-1 x 10mm hex head stainless steel 1
17 999-1117 Washer M6 split lock stainless steel 1
18 278-1279 Washer 1
19 278-1168 Cord clamp 1
20 278-1169 Rocker switch 1
21 278-1170 Push button switch 1
22 278-0988 2amp circuit breaker 1
23 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 3
24 278-0124 Drain hose clamp 1
25 278-1171 Warning decal 1
26 278-1172 Switch housing 1
27 278-1057 Strain relief cord 1
28 278-1173 Power plug 1
29 278-1174 Elbow corrugated tubing 1
30 278-1175 Corrugated tubing 1
31 278-1176 90 degree barbed elbow 1
32 278-0065 Tubing 1
33 278-1178 Hose barb 1
34 278-1179 Coupling nut 1
35 278-1206 Washer internal star lock 1
36 278-1180 Solution intake gasket 2
37 278-1185 Washer 1
38 278-1186 Coupling 1
39 278-0014 Strainer 1
40 278-0066 Clamp 1
41 278-0029 ICE decal 3
42 278-1188 Solution tank 1
43 278-1189 Filter 1
44 278-1196 Screw 2
45 278-1197 Recovery tank 1
46 278-1198 Shut-off float 1
47 278-1199 Bend 1
48 278-0919 Wire buffer 1
49 278-0647 Power cord 1
50 278-1202 17amp circuit breaker 1
51 278-1203 Coupler 1
52 278-0025 Hose clamp 1
53 278-1205 Warning decal 1
