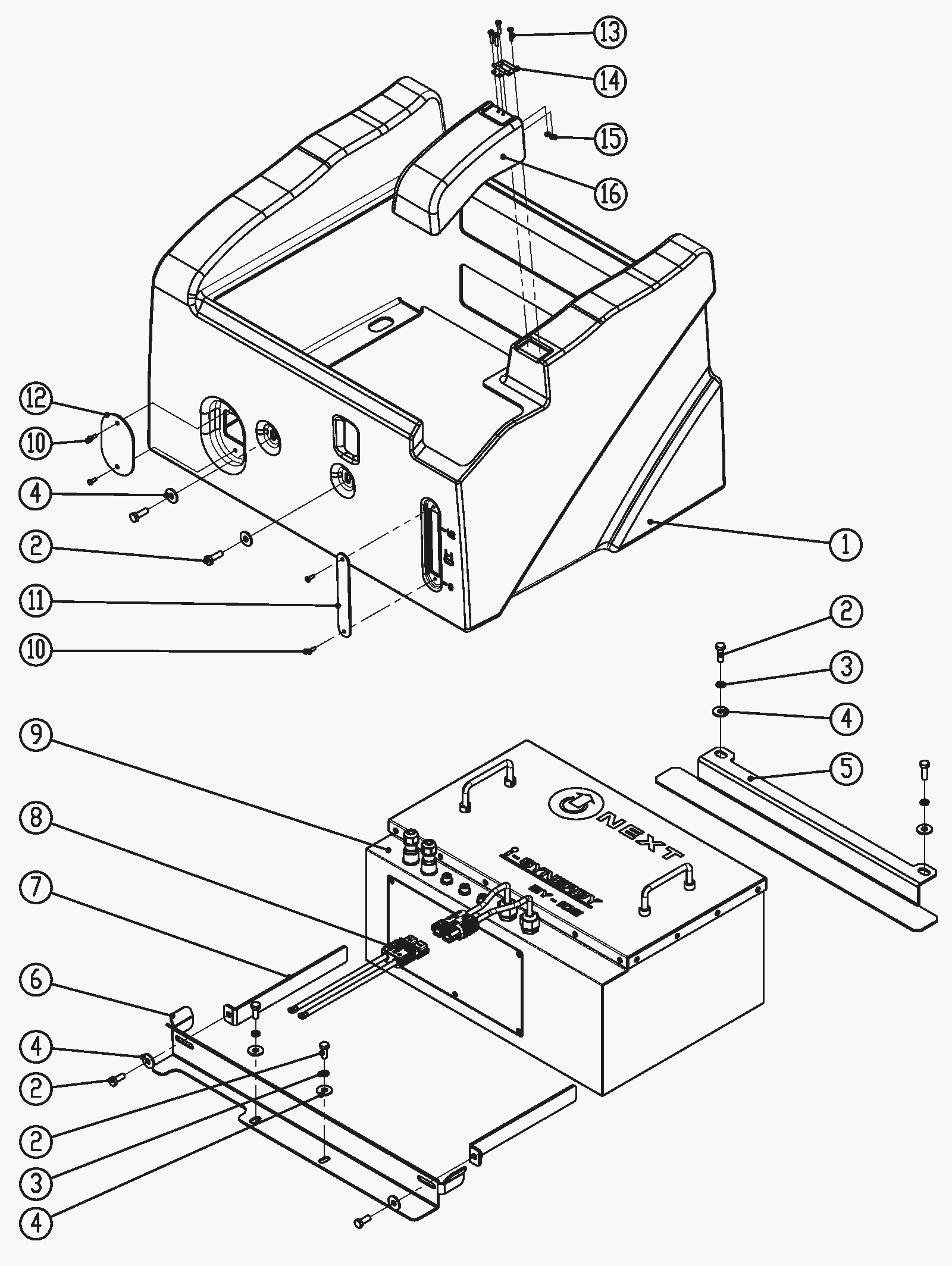

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
278-0433
|
Battery box |
1 |
|
|
2 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
8 |
|
|
3 |
999-0674
|
Washer M8 split lock plain finish |
4 |
|
|
5 |
278-0434
|
Rear battery support |
1 |
|
|
6 |
278-0438
|
Front battery support |
1 |
|
|
7 |
278-0437
|
Plate |
2 |
|
|
8 |
278-1151
|
Battery connector with cable |
1 |
|
|
9 |
278-1154
|
240amp lithium ion battery |
1 |
|
|
10 |
999-1645
|
Screw M4-.7 x 12mm hex head stainless steel |
4 |
|
|
11 |
278-0443
|
Cover |
1 |
|
|
12 |
278-0444
|
Cover |
1 |
|
|
13 |
278-0445
|
Rivet |
4 |
|
|
14 |
278-0446
|
Hinge assembly |
1 |
|
|
15 |
999-9089
|
Washer M4 flat stainless steel |
4 |
|
|
16 |
278-0447
|
Cover |
1 |
|
|
