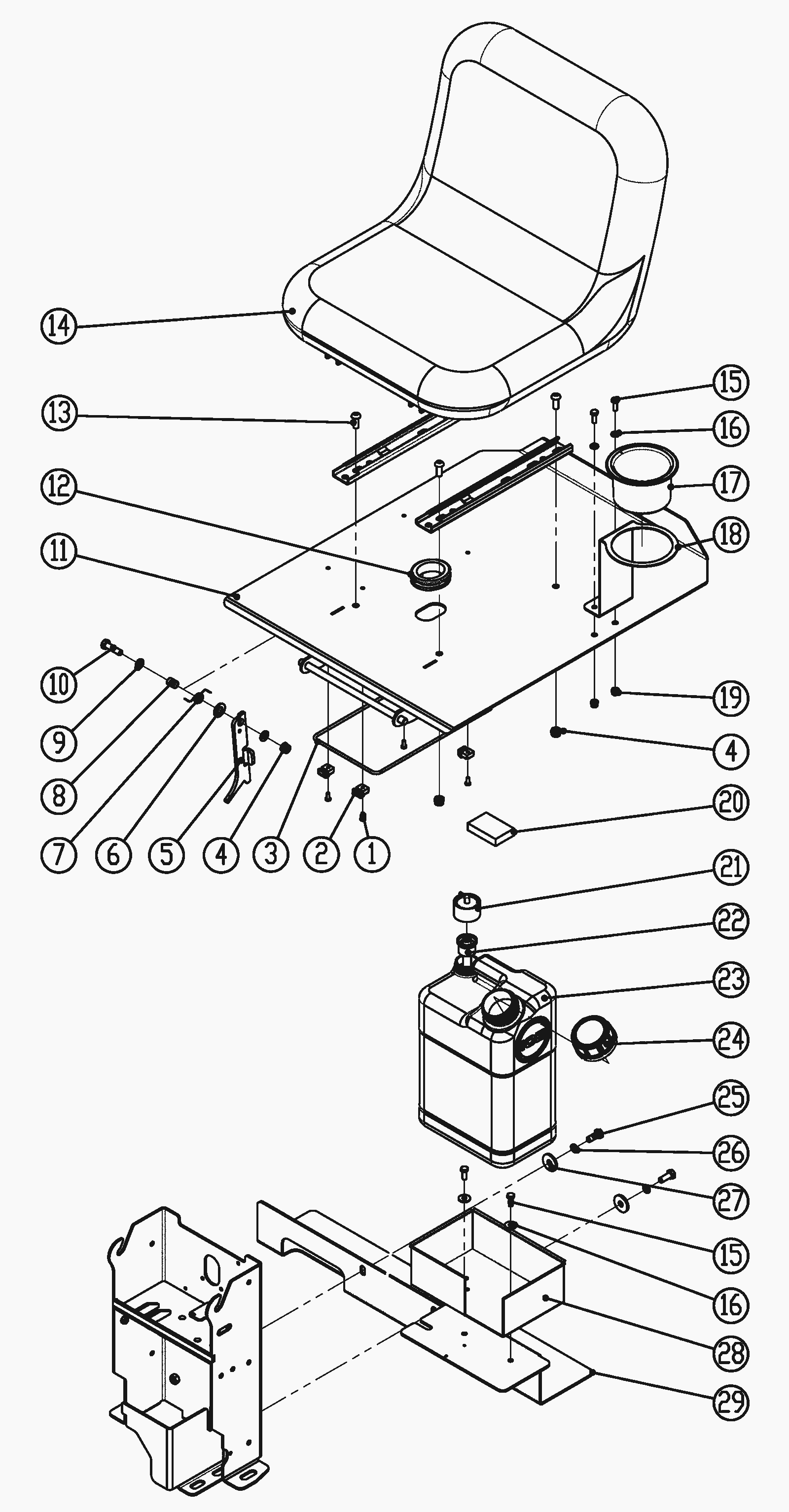

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1645
|
Screw M4-.7 x 12mm hex head stainless steel |
4 |
|
|
2 |
278-0064
|
Clamp |
4 |
|
|
3 |
278-0063
|
Cargo net |
1 |
|
|
4 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
5 |
|
|
5 |
278-0414
|
Seat support |
1 |
|
|
6 |
278-0174
|
Nylon spacer |
1 |
|
|
7 |
278-0415
|
Torsion spring |
1 |
|
|
8 |
278-0416
|
Sleeve |
1 |
|
|
9 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
10 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
1 |
|
|
11 |
278-0417
|
Seat mounting plate |
1 |
|
|
12 |
278-0327
|
Rubber grommet |
1 |
|
|
13 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
4 |
|
|
14 |
278-0418
|
Seat |
1 |
|
|
15 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
|
|
16 |
999-1803
|
Washer M6 flat fender stainless steel |
4 |
|
|
17 |
278-0419
|
Cup holder |
1 |
|
|
18 |
278-0420
|
Cup holder bracket |
1 |
|
|
19 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
20 |
278-0421
|
Spacer |
1 |
|
|
21 |
278-0422
|
Blue safety cap (key adapter) |
1 |
|
|
22 |
278-0423
|
Cap and tube insert lock |
1 |
|
|
23 |
278-0424
|
Detergent bottle |
1 |
|
|
24 |
278-0425
|
Bottle cap |
1 |
|
|
25 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
2 |
|
|
26 |
999-0674
|
Washer M8 split lock plain finish |
2 |
|
|
27 |
999-6695
|
Washer M8 fender stainless steel |
5 |
|
|
28 |
278-0427
|
Detergent bottle box |
1 |
|
|
29 |
278-0428
|
Bracket |
1 |
|
|
