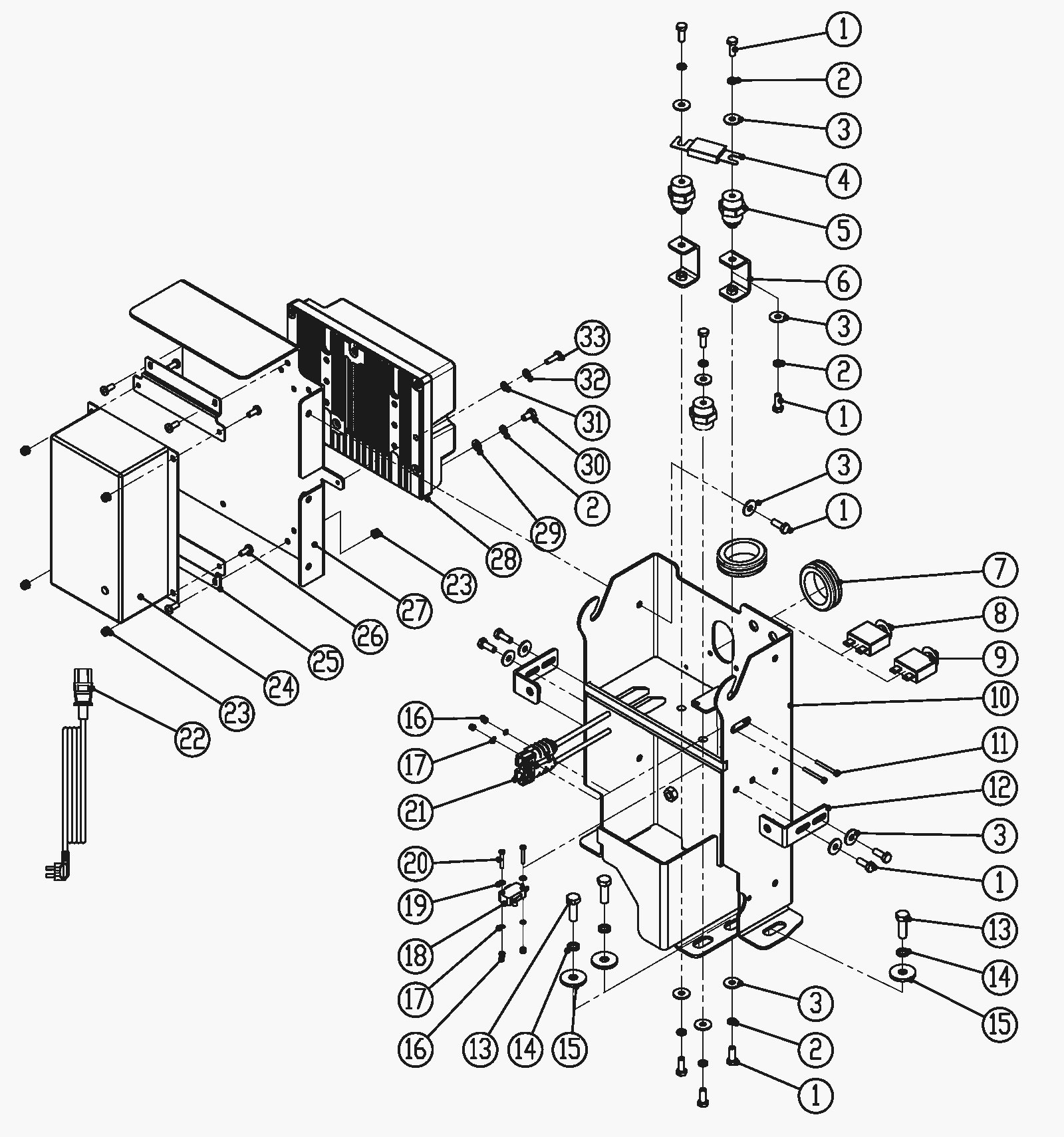

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
12 |
|
|
2 |
999-1117
|
Washer M6 split lock stainless steel |
18 |
|
|
3 |
999-1803
|
Washer M6 flat fender stainless steel |
15 |
|
|
4 |
278-0404
|
150amp fuse |
1 |
|
|
5 |
278-0405
|
Insulator |
3 |
|
|
6 |
278-0406
|
Insulator bracket |
2 |
|
|
7 |
278-0327
|
Rubber grommet |
2 |
|
|
8 |
278-0101
|
5amp circuit breaker |
1 |
|
|
9 |
278-0581
|
10amp circuit breaker |
1 |
|
|
10 |
278-0582
|
Weldment |
1 |
|
|
11 |
999-1520
|
Screw M3-.5 x 30mm pan head phillips zinc plated |
2 |
|
|
12 |
278-0409
|
Bracket |
2 |
|
|
13 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
5 |
|
|
14 |
999-0674
|
Washer M8 split lock plain finish |
5 |
|
|
15 |
999-6695
|
Washer M8 fender stainless steel |
5 |
|
|
16 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
4 |
|
|
17 |
278-0089
|
Washer M3 tooth |
4 |
|
|
18 |
278-0410
|
Micro switch |
1 |
|
|
19 |
999-1521
|
Washer M3 flat stainless steel |
2 |
|
|
20 |
999-1040
|
Screw M3-.5 x 20mm pan head |
2 |
|
|
21 |
278-1150
|
Off board charger socket |
1 |
|
|
22 |
278-0583
|
Onboard battery charger cord (Old style-charger 8132020-US) |
1 |
(old style for charger 8132020-US) |
|
23 |
999-0953
|
Nut M5-.8 hex nylon insert lock stainless steel |
8 |
|
|
24 |
278-0987
|
Charger kit for the I28BTL |
1 |
|
|
25 |
278-1153
|
Battery charger bracket |
2 |
|
|
26 |
999-9109
|
Screw M5-.8 x 12mm pan head phillips stainless steel |
8 |
|
|
27 |
278-0413
|
Battery charger bracket |
1 |
|
|
28 |
278-0585
|
Main controller |
1 |
|
|
29 |
278-0127
|
Washer |
10 |
|
|
30 |
278-0125
|
Bolt |
10 |
|
|
31 |
999-9100
|
Washer M5 flat stainless steel |
2 |
|
|
32 |
999-9132
|
Washer M5 split lock stainless steel |
2 |
|
|
33 |
999-1425
|
Screw M5-.8 x 25mm pan head stainless steel |
2 |
|
|
