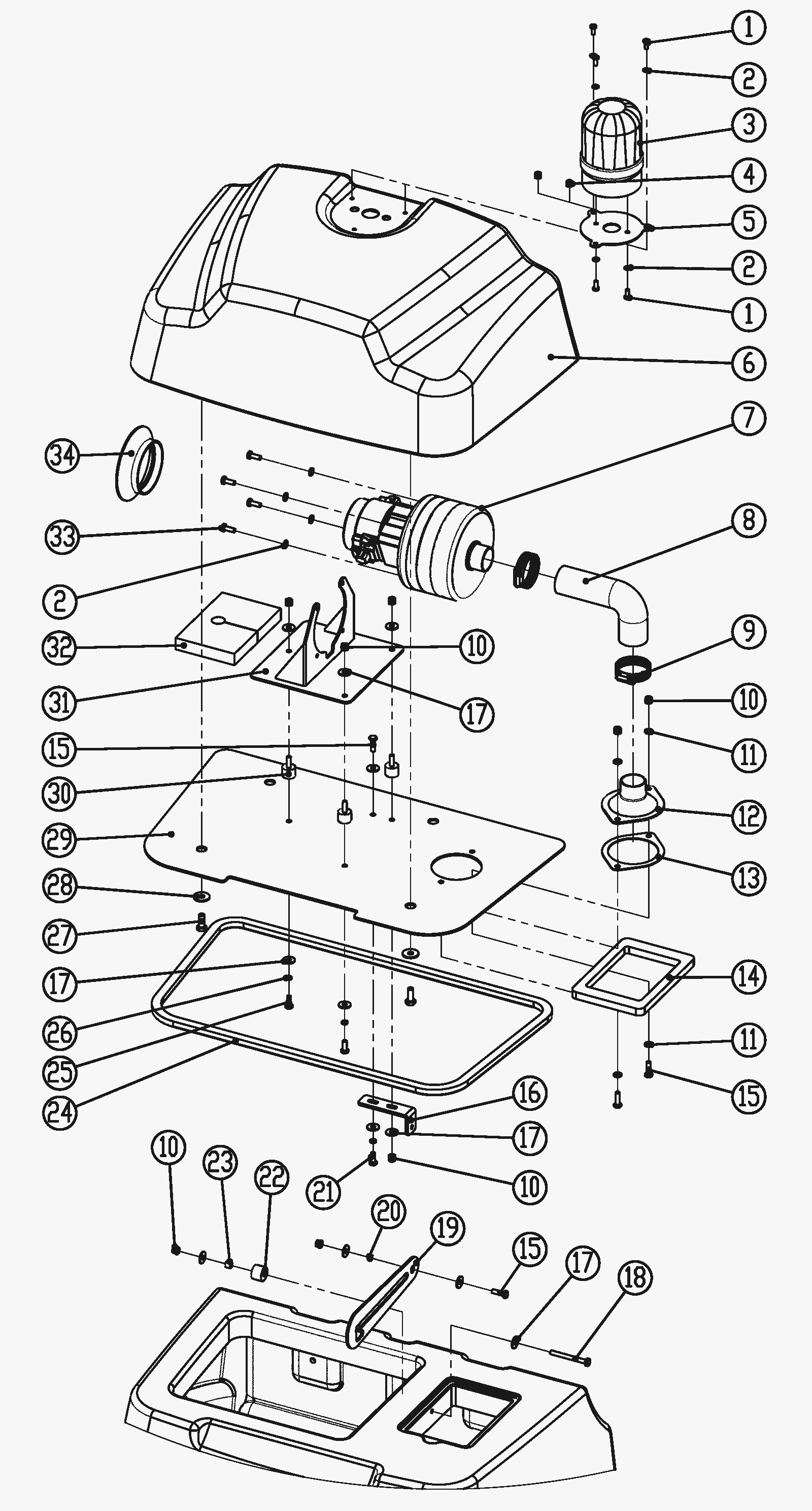

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-9109
|
Screw M5-.8 x 12mm pan head phillips stainless steel |
5 |
|
|
2 |
999-9100
|
Washer M5 flat stainless steel |
9 |
|
|
3 |
278-0643
|
Caution light kit |
1 |
|
|
4 |
999-0953
|
Nut M5-.8 hex nylon insert lock stainless steel |
2 |
|
|
5 |
278-0372
|
Caution light plate |
1 |
|
|
6 |
278-0373
|
Recovery tank cover |
1 |
|
|
7a |
278-0526
|
24V 3 stage vacuum motor kit |
1 |
|
|
7b |
278-0552
|
Carbon brush (sold individually) |
2 |
|
|
8 |
278-0526
|
24V 3 stage vacuum motor kit |
1 |
|
|
9 |
278-0025
|
Hose clamp |
2 |
|
|
10 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
8 |
|
|
11 |
999-6714
|
Washer M6 x 12mm flat stainless steel |
4 |
|
|
12 |
278-0376
|
Vacuum hose adapter |
1 |
|
|
13 |
278-0377
|
Gasket adapter |
1 |
|
|
14 |
278-0378
|
Dust filter gasket |
1 |
|
|
15 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
4 |
|
|
16 |
278-0379
|
Bracket |
1 |
|
|
17 |
999-1803
|
Washer M6 flat fender stainless steel |
12 |
|
|
18 |
999-1169
|
Bolt M6-1 x 100mm hex head full thread plain finish |
1 |
|
|
19 |
278-0380
|
Recovery tank cover support |
1 |
|
|
20 |
278-0381
|
Sleeve |
1 |
|
|
21 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
|
22 |
278-0382
|
Nylon spacer |
1 |
|
|
23 |
278-0383
|
Sleeve |
1 |
|
|
24 |
278-0384
|
Sealing strip |
1 |
|
|
26 |
999-1117
|
Washer M6 split lock stainless steel |
3 |
|
|
27 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
4 |
|
|
29 |
278-0385
|
Vacuum motor mounting plate |
1 |
|
|
30 |
278-0386
|
Isolater |
3 |
|
|
31 |
278-0387
|
Vacuum motor bracket |
1 |
|
|
32 |
278-0388
|
Insulation |
1 |
|
|
33 |
278-0389
|
Screw |
4 |
|
|
34 |
278-0390
|
Fan seal |
1 |
|
|
